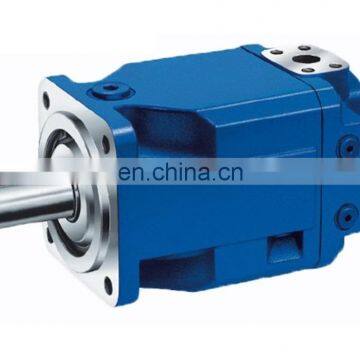

Rexroth A4FM of A4FM22,A4FM28,A4FM40,A4FM56,A4FM71,A4FM125,A4FM250 axial piston fixed motor,hydraulic motor
1. Completely interchangeable with original
2. Particularly well suited for applications, where compact installation size is required
3. For open and closed loop in hydrostatic transmission
4. High tolerance to torsional vibrations
5. The output speed is directly proportional to the input flow and inversely proportional to the motor displacement
6. Long service life, best efficiency
7. Proven swashplate technology rotary assembly
8. Very competitive price
9. 1 year of warranty
10. For engineering machinery, marine boat and industrial machinery etc.
11. Short delivery time
Technical Specifications:
Size |
22 | 28 | 40 | 56 | 71 | 125 | 250 | |||
Displacement |
Vg |
cm³ |
22 | 28 | 40 | 56 | 71 | 125 | 250 | |
Nominal pressure |
pnom |
bar |
400 | 400 | 400 | 400 | 350 | 350 | 350 | |
Maximum pressure |
pmax |
bar |
450 | 450 | 450 | 450 | 400 | 400 | 400 | |
Maximum speed |
nnom |
rpm |
4250 | 4250 | 4000 | 3600 | 3200 | 2600 | 2200 | |
Inlet flow |
at nnom |
qV |
l/min |
93 | 119 | 160 | 202 | 227 | 325 | 550 |
Torque |
at pnom |
M |
Nm |
140 | 178 | 255 | 356 | 395 | 696 | 1391 |
Weight (approx.) |
m |
kg |
11 | 11 | 15 | 21 | 34 | 61 | 120 | |
