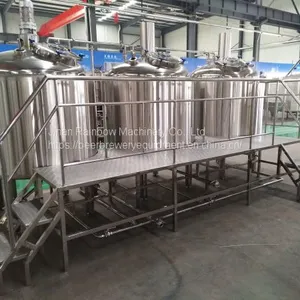

7bbl beer brewery brwing fermentation equipment
Turnkey beer system configuration for your reference.
|
Brewhouse system |
Malt milling machine |
Mash/Lauter tun | |
Brew kettle/whirlpool tank | |
Hot liquor tank | |
Plate heat exchanger | |
Sanitary piping system | |
Working platform | |
|
Fermentation system |
Fermentation tank |
Yeast adding tank | |
|
Cooling system |
Glycol water tank |
Glycol chiller | |
Glycol water pump | |
CIP system |
Alkali tank&sterilization tank |
CIP pump | |
Control system |
PID control cabinet |

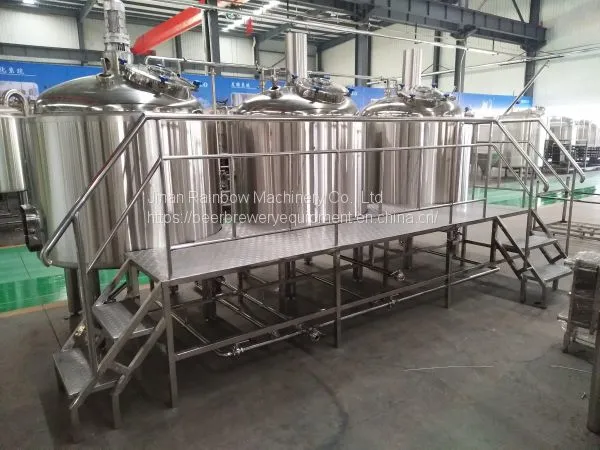

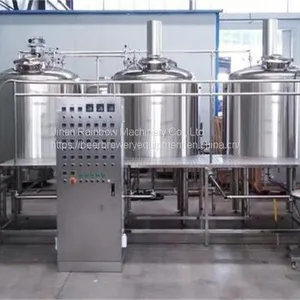

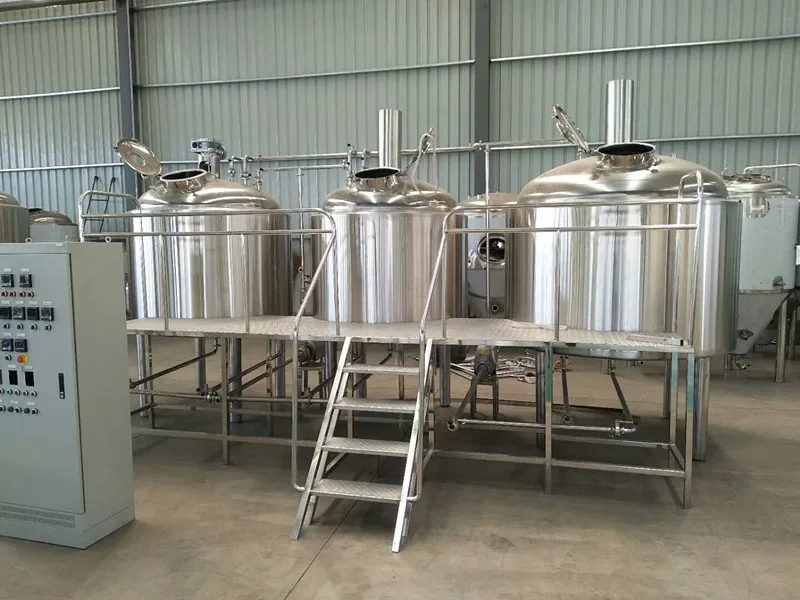

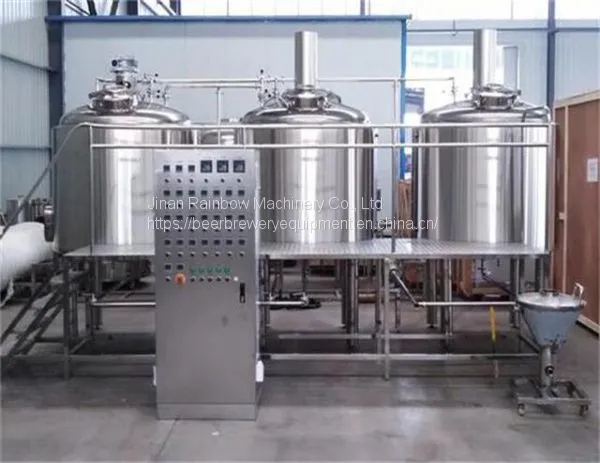

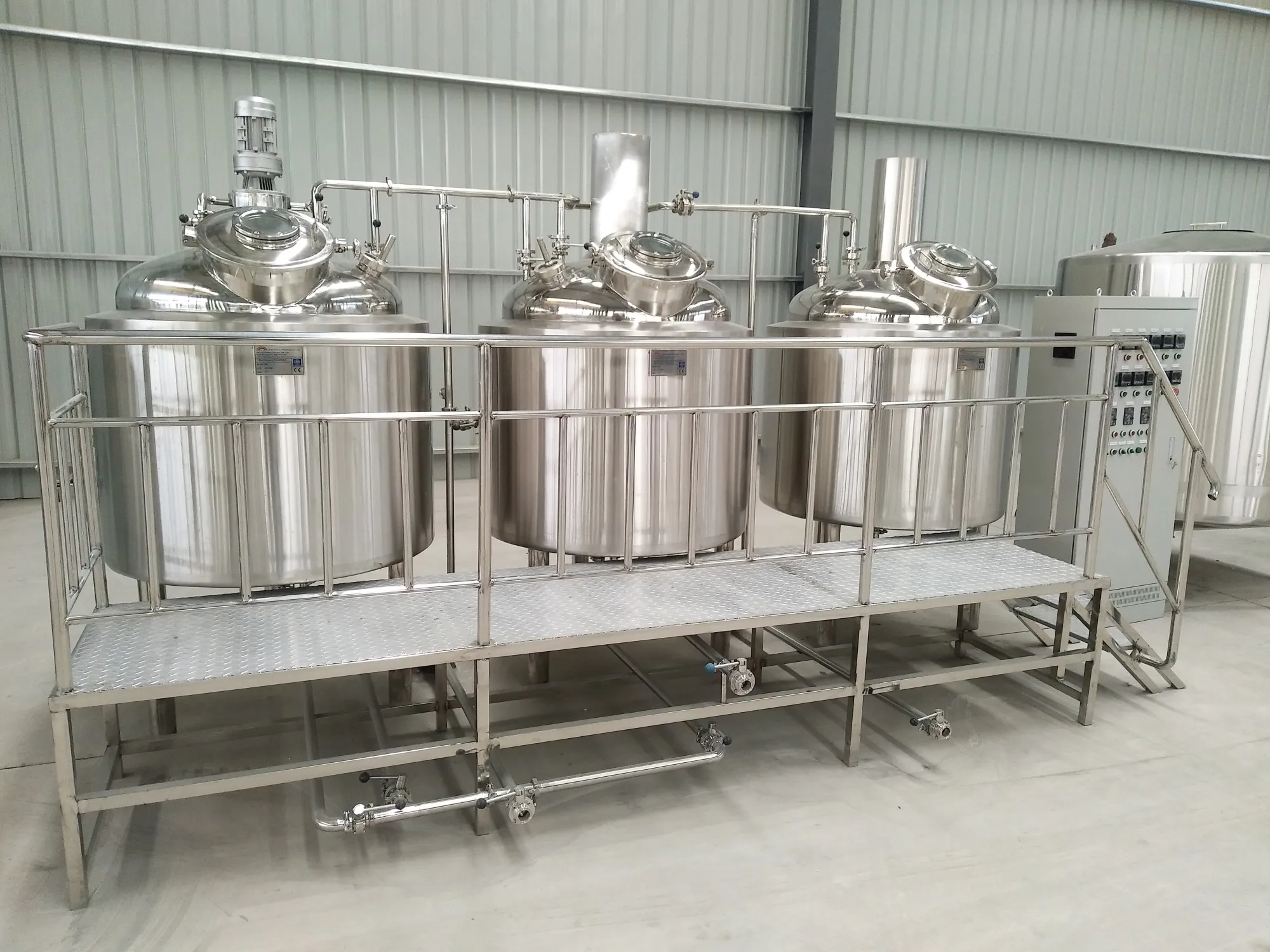

Brewhouse System
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell:SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6 µm without dead corner
-Heating method:Steam/gas direct fire/electricity heating
-Side manway for spent grains
-Steam jacket:Both on bottom and side,thickness:3.0mm
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom
Options:
2-vessel: mash/brew kettle, lauter tun/whirpool
2-vessel: mash/lauter tun, brew kettle/whirpool
3-vessel: mashtun, lauter tun, brew kettle/whirpool
4-vessel: mash tun, lauter tun, brew kettle, whirpool
Heating method includes steam, electrecity, gas fire heating...etc.
Hot liquor tank
Plate heat exchanger: two stage for glycol water and cool water.
Pump: food grade centrifugal pump with VFD, DANFESS.
Working platform: complete SUS304 configuration
Steam generator

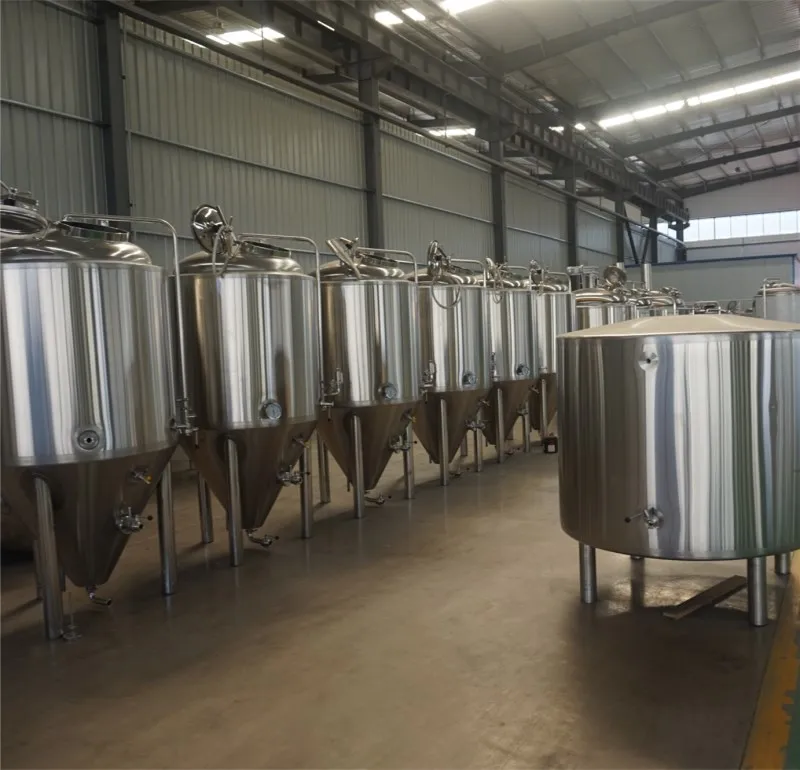

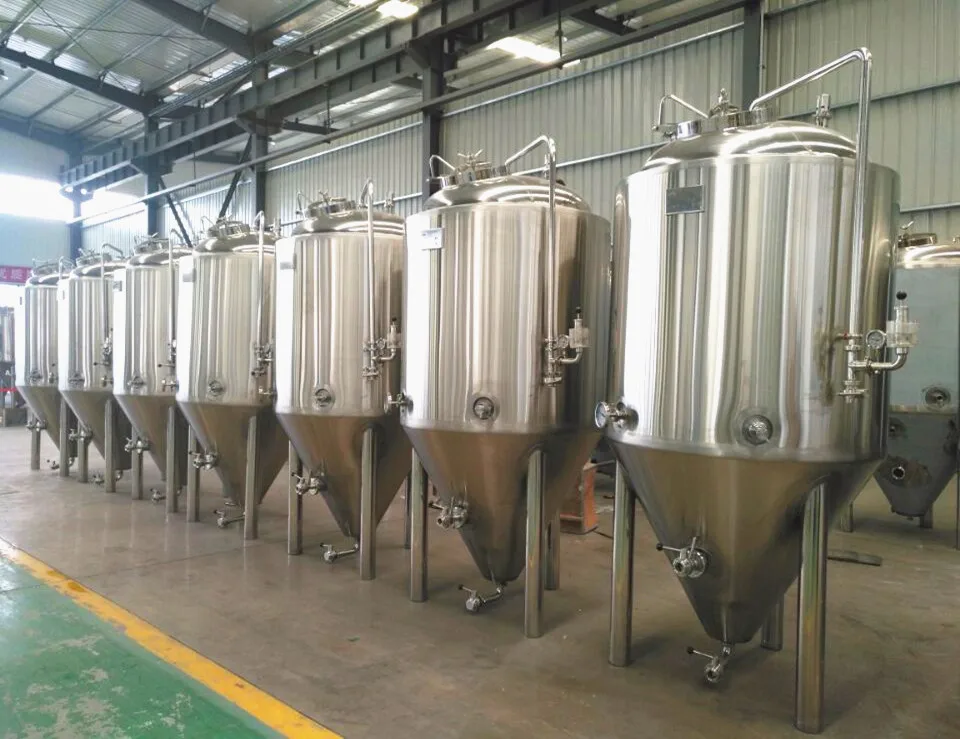

Fermentation System
-Dome top and cone bottom;bottom cone 60 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6µm without dead corner
-Cooling jacket:both on cone and cylinder parts
-Cooling media: glycol water
-Test pressure:0.3Mpa,Working pressure:0.2Mpa
-Rotating racking arm on cone with butterfly valve
-Thermowell with high accuracy temperature sensor:PT100
-3/4 Legs with height adjustable pad
Options:
-Carbonation stone
-Dry hopping port on top
-Bright beer tank

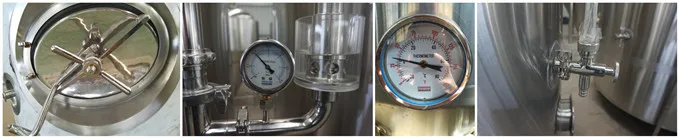

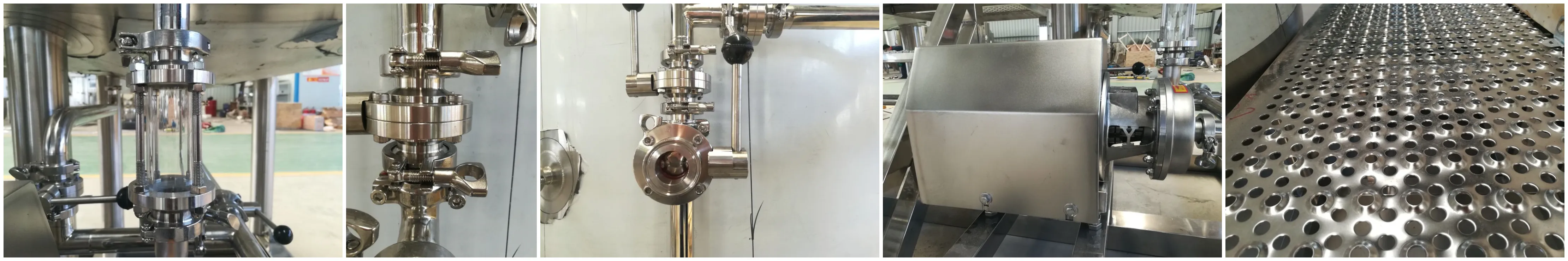

Product details
Packaging & Shipping
Certification
About us
Established in 2011,Jinan Rainbow Machinery Co.,Ltd, is a professional manufacturer and leading exporter of craft beer brewery equipment.
Rainbow Machinery is exporting brewing tanks to many countries like France, Norway, Czech Republic, Switzerland, USA,Canada, Australia, Singapore, Rwanda and Malawi...etc.
Rainbow Machinery is running with ISO9001 standard and CE certificate. It focus on using good quality material SUS304/316, using 100% TIG welding and doing fine polishing so as to get superior quality brewery tanks.
Rainbow Machinery provides turn-key project solution from design and produce to installation and services.
