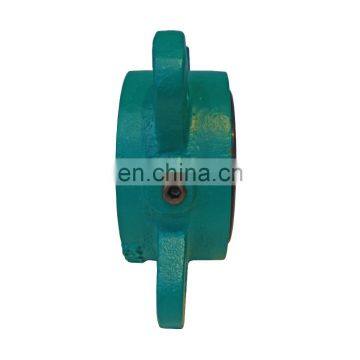

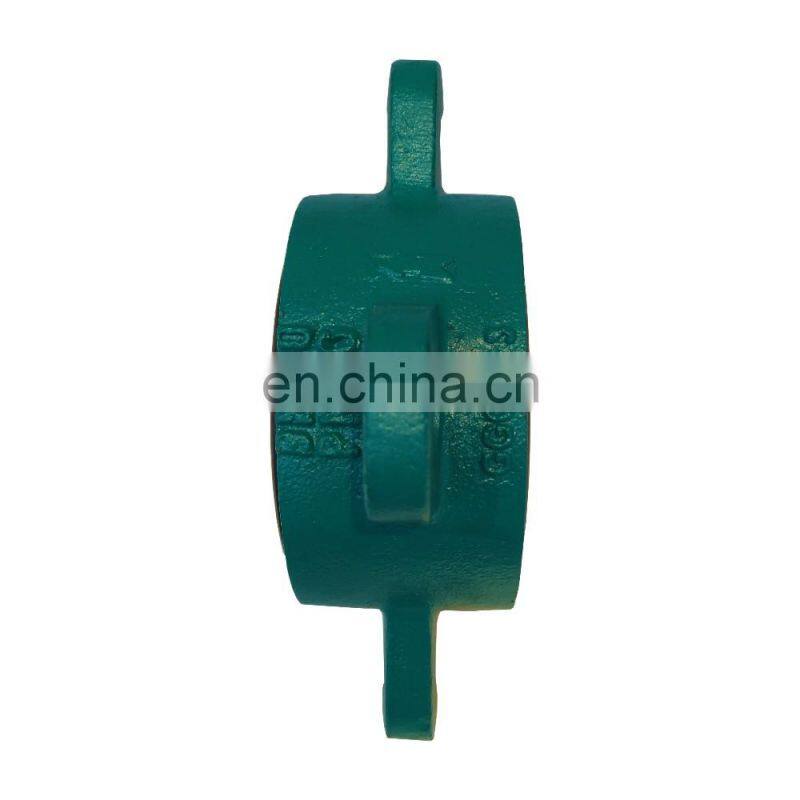

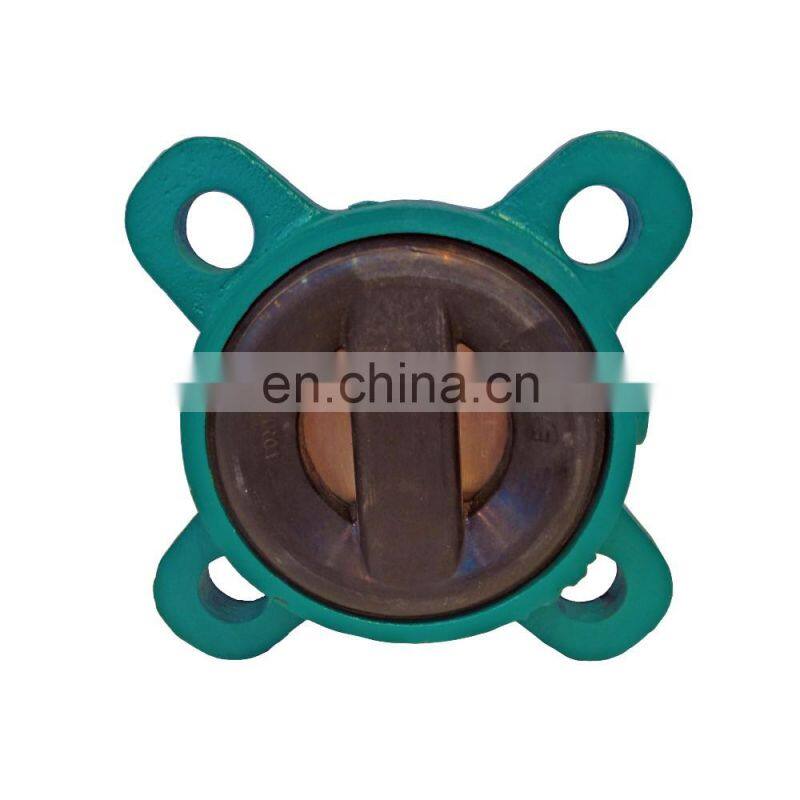

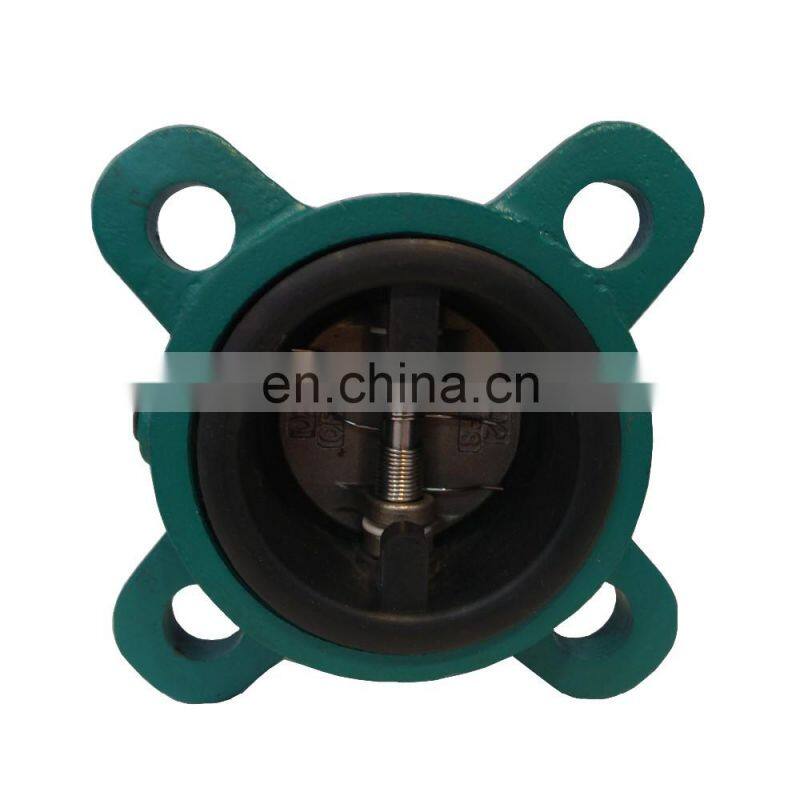

DN50 Check Valve Ductile Iron Body

Shanghong Mechanical Equipment Import & Export Co., Ltd.
5Yrs
DN50 Check Valve Ductile Iron Body thumbnail-1
DN50 Check Valve Ductile Iron Body thumbnail-2
DN50 Check Valve Ductile Iron Body thumbnail-3
DN50 Check Valve Ductile Iron Body thumbnail-4
DN50 Check Valve Ductile Iron Body photo-1
DN50 Check Valve Ductile Iron Body photo-2
DN50 Check Valve Ductile Iron Body photo-3
DN50 Check Valve Ductile Iron Body photo-4
US$ 6.54 - 749.4 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BG
Place of Origin:
Hebei, China
Model Number:
H71X-16Q
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BG
Place of Origin Hebei, China
Model Number H71X-16Q
Material Casting
Application General
Structure Check
Standard or Nonstandard Standard
Pressure Low Pressure
Power Hydraulic
Port Size DN50
Media Water
Temperature of Media Low Temperature
Prouduct Advantage

OUR BG VALVE FEATURES :

1. minium weight
2. maximum strength
3. Minimized operating torque
4. convenient to design and select the type
5. convenient to operate and apply
6. convenient to repaire and safeguard.

Product Description
Technical Data
Size:
DN50
Modle No.:
H71X-16Q
General Design:
API 609
Mounting Pad:
ISO 5211
Face to Face:
API 609; EN 558 1-20 series
Flange Driling:
DIN 2501 PN10~100
Inspection and Test:
API 598
Suitable Medium:
water,sea water,sewage,fresh water,food,vapour,oil,acid,alkalis,salts etc,
Norminal Pressure:
1.0 ~100 MPa  PN10 ~100

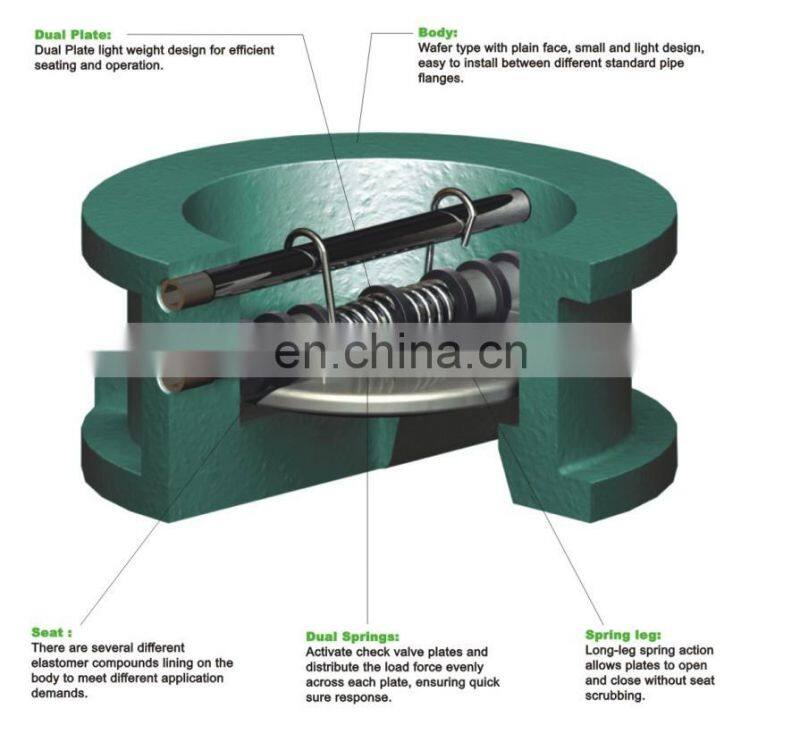

Material of Construction
Body:
Cast iron /  Ductile iron  WCB / Carbon steel  /Stainless steel
Disc
Stainless seel / Brass / Bronze  / Carbon steel
Seat:
EPDM
 Shaft
Stainless seel / Brass / Bronze
Spring
Stainless steel
Hex Nut
Cast steel
Washer
PTFE
Gasket
PTFE

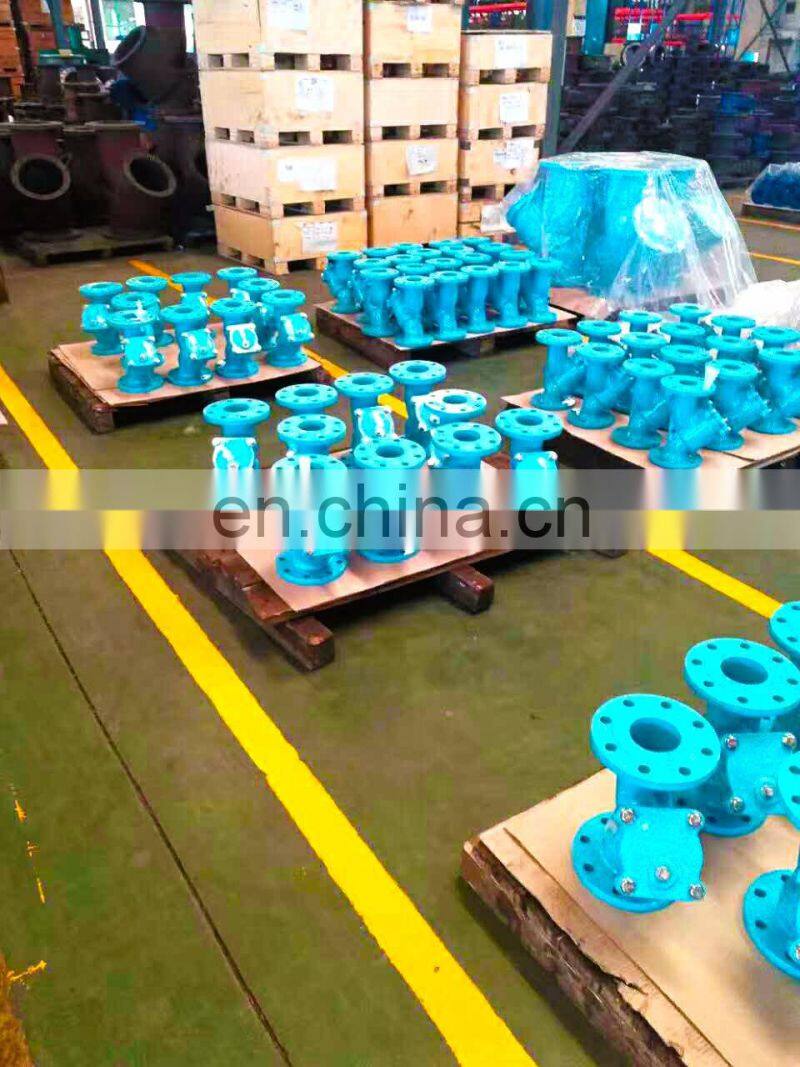

Products Show
Quality Control


We control the quality do 4 inspections point,   and there are special quality tester to inspect every inspection point, and make sure good quality of the supplied valve

Standard Test
Body Test:
1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test:
1.1 times the working pressure with water.
Function / Operation Test:
At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test:
Special Test: On request, any other test can be carried out according to special instruction by client.

we have 4 sets of hydraulic test equipment, All of the supplied valves shall be inspect by the manufacturer for mechanical test, hydraulic test.

Packing & Delivery

Packing Details  :

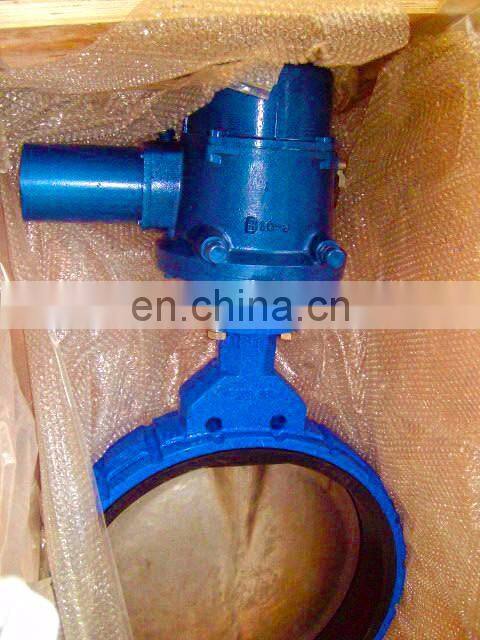

As usural, the supplied valve be wrapped by the air bubble film , cloth, plastic film,  plywood cases, paper box etc.

We will make the packing according to size and kinds of valve or requirements from buyers.

Valves greater than DN 500 shall be packed individually. Two valves may have the packing joined provided the combined weight does not exceed 3 tonnes. Valves (up to DN 300) may be placed together provided that the packages do not exceed 4 tonnes in weight and individual valves are prevented from moving within the package. Each box shall be clearly marked with  buyer‘s name, order number, valve size and class.

The following documents shall be included in suitable wrapping and shall be enclosed with the shipment:

 Packing list

 General arrangement and catalogues

 Operation and maintenance manual as applicable

 Installation instructions

Our Company

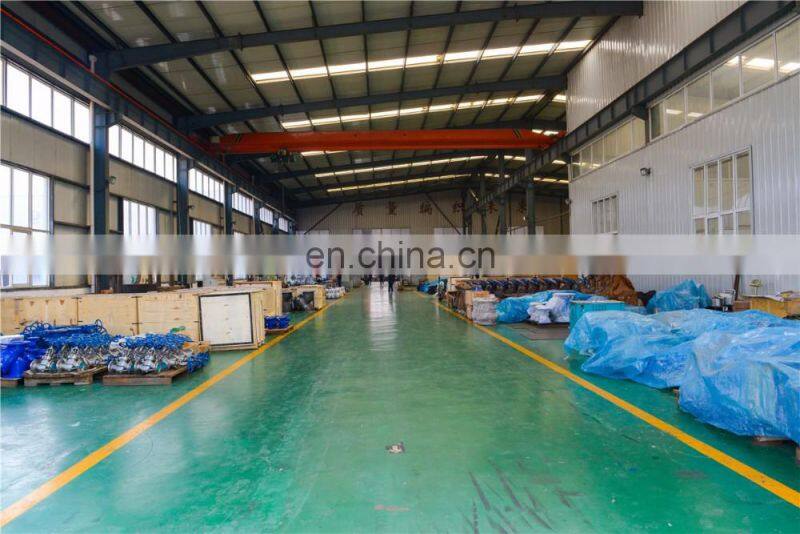

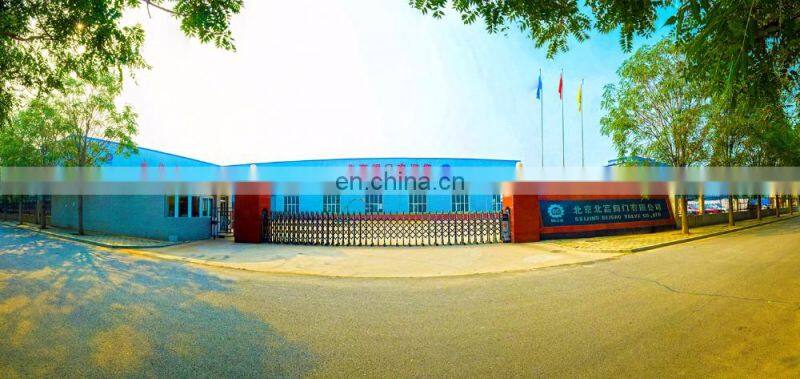

The factory covers more than 20,000 square meters with the registered capital about 10.8 million RMB. Having one group of outstanding managerial talents and veteran technicians, the company has been bringing in the multi-strip overseas high-tech valve production assembly line.In this way, we powerfully enhance the production's efficiency. And the annual production quantity amount to more than 250,000 pcs


The main product is the Butterfly valve, Gate valve, Check valve, Y-strainer Ball valve Globe valve and so on. We can produce various valves according to the standards of GB, JB, ANSI, DIN, API, JIS and so on and also we can provide according to clients demand and requirement.

At present, we have been exporting to many countries such as Japan, South Korea, America, Australia and so on.


Seeking survival from the quality, seeking development from service, put people first are our company's principles. We warmly welcome all the clients from abroad to come to our factory to visit and cooperate.

Certifications


BEI GAO have obtain the certificats of Manufacture License of Special Equipment People's Republic of China, CE, ISO9001, 14001,18001.
