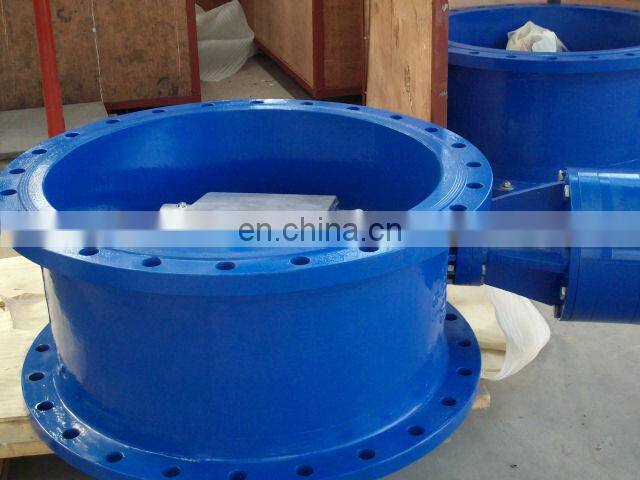

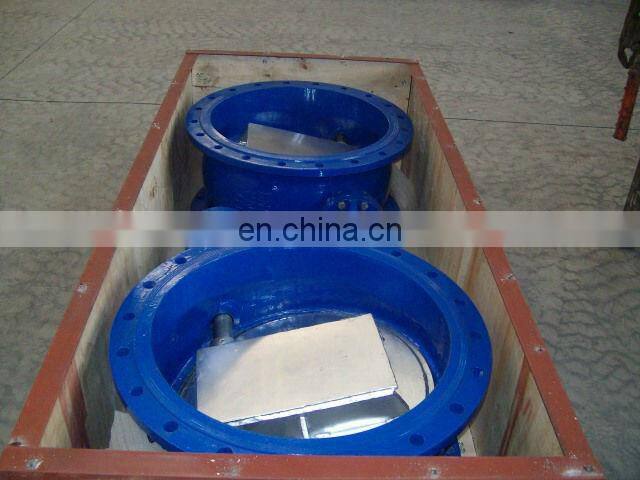

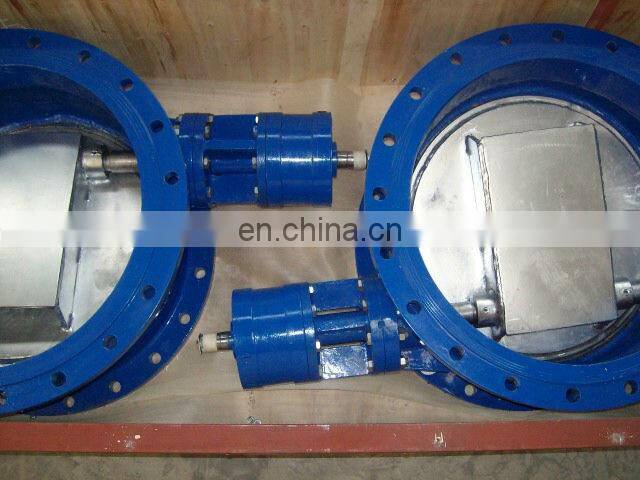

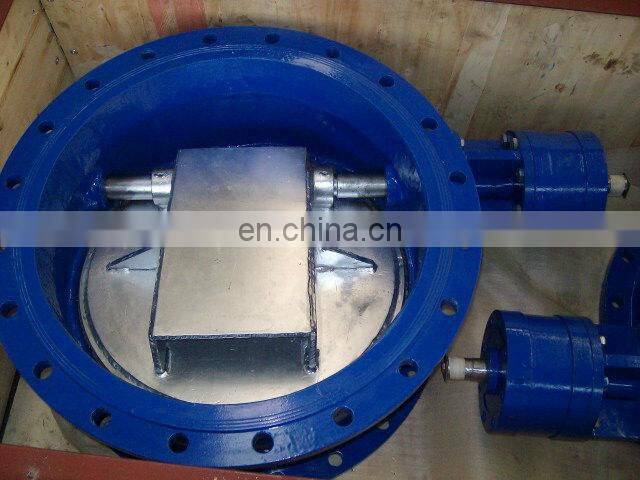

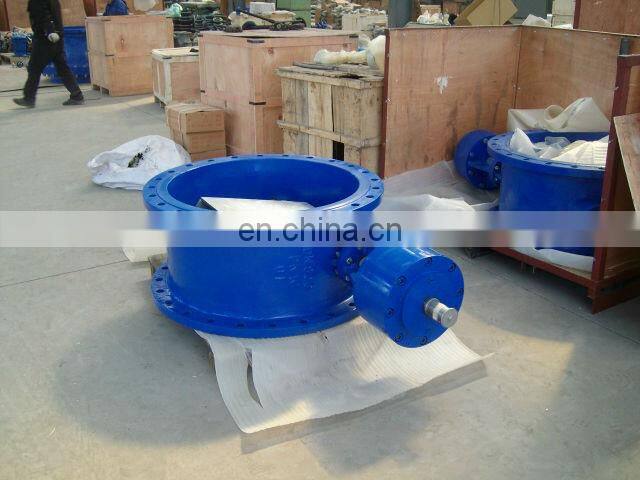

Big Size Tilting Check Valve

 Big size tilting check  valve

Specifications

Tilting disc check valve
Tilting check valve
Body Material: Ductile Iron, CS, SS, etc
4: DN50 to DN1200
5: PN10/16

.

1. Factory :In Beijing city
2. Export times: eight years
3. Export to contry :USA,Noweigian,Russain,Malaysia, Pakistan, Tanzania , Bangladesh, India , South Korea,Dubai etc.
4. Delivery date :7-20days
5. Min order :5000 USD except sample.
6. Standards :ISO,BSEN1092 ,DIN ,ANSI /AMSE/GOCT
7. Size :DN25-DN1200
8. Body Materials :Cast Iron or Ductile Iron or WCB or Stainless steel or Carbon Steel or Bronze.
9. Disc:Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M

10.Stem:SS416/SS304/SS316/SS431/17-4PH/Monel/Carbon steel 45/45#

11.Seat:NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE,Metal.

12.Medium:Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc

13.Normal Temperature -45 ~150Normalpressure:DN40-DN600(1.5”-24”) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28”-48”) PN1.0MPa(150PSI)

14.Connection Type :Flange type ,screw type,Lug type,weld type ,Wafer type,Groove type.

15.Control type :Auto.

16.Color :Blue,Black,Silver,Red,Stainless steel Color.

17.Packing :Plywood of export standards or paper wood .

18.Payment type :TT (30%advance ,70% before shipping) or L/C.

19.Trade terms:FOB,CIF,CFR,EXW.

20.Freight type:By sea or air port .

21.The guarantee period of goods:12 months.
