Wafers End Type Butterfly Valves With Nylon Coated Disc

Shanghong Mechanical Equipment Import & Export Co., Ltd.
5Yrs
Wafers End Type Butterfly Valves With Nylon Coated Disc thumbnail-1
Wafers End Type Butterfly Valves With Nylon Coated Disc thumbnail-2
Wafers End Type Butterfly Valves With Nylon Coated Disc thumbnail-3
Wafers End Type Butterfly Valves With Nylon Coated Disc thumbnail-4
Wafers End Type Butterfly Valves With Nylon Coated Disc thumbnail-5
Wafers End Type Butterfly Valves With Nylon Coated Disc thumbnail-6
Wafers End Type Butterfly Valves With Nylon Coated Disc photo-1

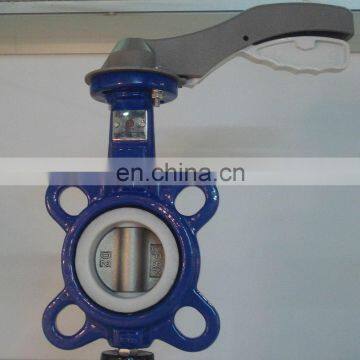

Wafers End Type Butterfly Valves With Nylon Coated Disc photo-2

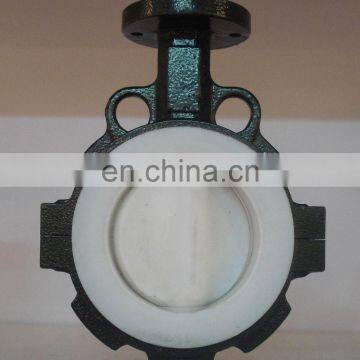

Wafers End Type Butterfly Valves With Nylon Coated Disc photo-3
Wafers End Type Butterfly Valves With Nylon Coated Disc photo-4

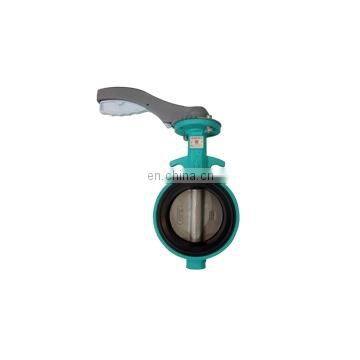

Wafers End Type Butterfly Valves With Nylon Coated Disc photo-5

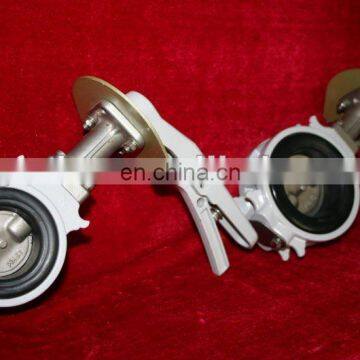

Wafers End Type Butterfly Valves With Nylon Coated Disc photo-6
US$ 15 - 1,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
BG
Place of Origin:
Beijing, China
Model Number:
BG200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BG
Place of Origin Beijing, China
Model Number BG200
Material Stainless Steel
Structure Butterfly
Standard or Nonstandard Standard
Pressure Low Pressure
Power Pneumatic
Port Size DN32-DN1200
Media Water
Temperature of Media Normal Temperature

 Wafers End Type Butterfly Valves with Nylon Coated Disc


Specifications

Detailed Description:

Series

concentric disc   butterfly valve

Size:

DN50-DN1200/2”-48”

End flange:

ANSI B 16.1,ASTM B 16.47,EN 1092, AS 2129, ISO PN10/16,JIS B2212/2213, BS 10 Table D, BS 10 Table E

Face to face:

ANSI B 16.10,API 609

Top flange:

ISO 5211

Normal pressure:

DN40-DN600(1.5”-24”) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28”-48”) PN1.0MPa(150PSI)































 Material of mian part

Body

Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8,SS304/CF8M,SS316

Disc

Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M

Stem

SS416/SS304/SS316/SS431/17-4PH/Monel/Carbon steel 45/45#

Seat

NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE

Suitable temperature

Normal Temperature -45 ~150

Medium

Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc



Design characters
1. Rubber backed seat with stable valve torque.
2. Grooved sleeve design to achieve stable positioning
3. Simple construction, small in size, light in weight. Easy disassembling, installation and maintenance
4. Minimized operating torque. Lever, gear, pneumatic and electric actuators can be chosen.
5. Special design, high flow rate and low flow resistance.

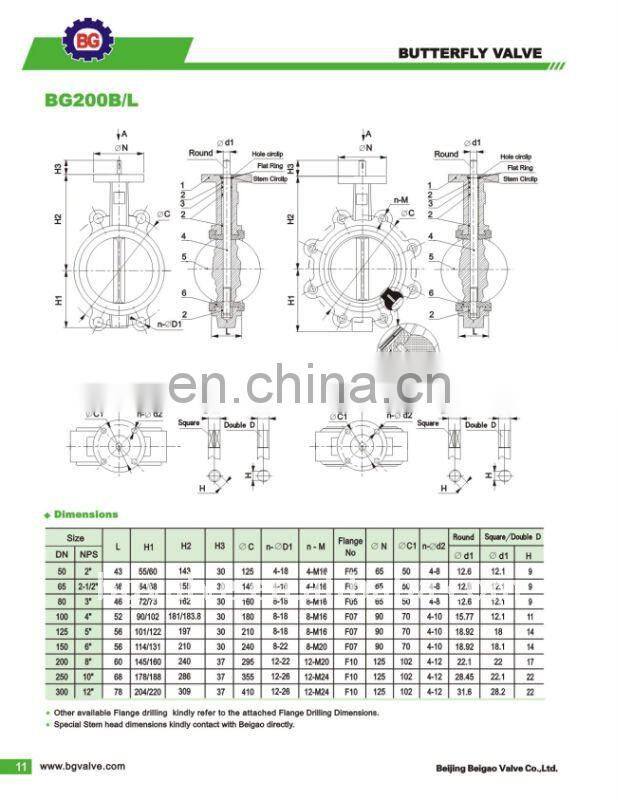

Wafers End Type Butterfly Valves with Nylon Coated DiscWafers End Type Butterfly Valves with Nylon Coated DiscWafers End Type Butterfly Valves with Nylon Coated Disc
