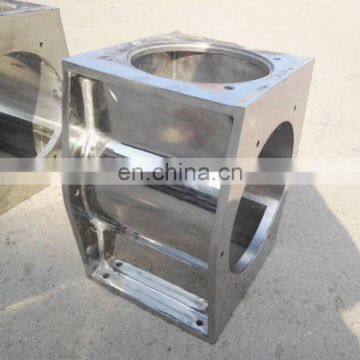

Help CenterBulk Material Discharge Device Rotary Airlock Valves for Storage Bin( 15 Days Delivery Time , Quality Test and Monitoring)
Related Products
-
Quick Closing Valve Hopper to Bin Gravity Discharge Rotary ValveUS$ 200 - 2,000MOQ: 1 Piece -
Vibrating Screen SieveUS$ 1,000 - 7,500MOQ: 1 Set
-
Vibrating ScreenUS$ 1,000 - 7,500MOQ: 1 Set
-
6 Inches Rotary Valve Powder Discharge Under Silo ,99.5% Passed CQC Rotary Airlock Valve Powder UseUS$ 200 - 2,000MOQ: 1 Piece
-
Direct-sale Rotary Airlock Feeder & Big Bag Loading Systems China Thailand America Use Rotary ValveUS$ 200 - 2,000MOQ: 1 Piece
8 distributors overseas , for Denmark, Germany,England, American, Australia,Indonesia,Thailand.ETC
You can get Safe Payment and Quality Assurance from us .
Rotary Valve factory , skilled workers
Mirror polishing , your Sanitary choice (good grade )
For Different Industry
1, Matrial to handle : biofuels / biomass energy / wood chips / Sawing wood ash dust / sugar / stone and pellet / grains powder / PET /PVC .
2, Process : vaccum system /dust collection / pneumatic convey / bulk material covey / dose and feed system / gravity discharge /under cyclone / hopper and bin / silo and other project process .
Model | Out Dimension | Inlet | Outlet | Installment | Shaft | ||||||||||
A | B | H | E | F | D1 | D2 | e | F | H | G | M | D | d | K | |
TGFY-5L | 410 | 300 | 430 | 250 | 170 | φ222 | φ152 | 180 | 150 | 160 | 220 | 130 | φ200 | φ35 | 115 |
TGFY-7L | 420 | 310 | 430 | 260 | 180 | φ250 | φ156 | 182 | 160 | 160 | 230 | 140 | φ220 | φ35 | 115 |
TGFY-9L | 470 | 310 | 430 | 360 | 230 | φ270 | φ184 | 182 | 210 | 160 | 230 | 190 | φ240 | φ35 | 115 |
TGFY-12L | 540 | 340 | 515 | 300 | 270 | φ300 | φ208 | 240 | 218 | 190 | 260 | 210 | φ260 | φ40 | 150 |
TGFY-16L | 570 | 370 | 515 | 320 | 280 | φ330 | φ245 | 240 | 260 | 190 | 290 | 240 | φ300 | φ40 | 150 |
1, Customizable for any request
2, Provide CAD drawings and dimensions
3, Calculation for project
4, Delivery time flexible
Projects installed with bulk tech rotary valve :
COFCO
WDL
Everything you need to know
1, what is rotary valve
Rotary valve (which can also be called airlock) are used in a wide range of applications , where there is a need to minimize system air losses while transferring material between chambers with different pressure level and dose and feed solid bulk products in the pharmaceutical, chemical and many other industries.
2, How to choose a suitable rotary valve ?
Contact us, we can choose the right type in 1 minute
4, Quality guaranteed ?
Expensive bearing famous motor , raw material and rich experience , 99% qualified .
5,Good price ?
10% for new customers discount.
6, Where is our factory
Located in Middle of China , henan province zhenzhou city,called “the rice home “
7, Delivery time ?
20 days .
If you have other questions , please feel free to email us , you'll get quick response .
8, How to contact ?
sky-pe peter.huo1 email
