Home > Manufacturing & Processing Machinery > Mining Machinery > Dredger > 16 Inch Sand Suction Dredge Pump
16 Inch Sand Suction Dredge Pump
US$ 827 - 2,996
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Milestone
Place of Origin:
Hebei, China
Type:
Cutter Suction Dredger
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
River Sand Dredging Machine Gravel PumpUS$ 827 - 2,996MOQ: 1 Set -
River Sand Dredger Sand Suction Pump Machine PriceUS$ 2,996 - 10,996MOQ: 1 Set
-
Horizontal Filter Suction Sludge Dredge Slurry Pump for SaleUS$ 2,593 - 3,457MOQ: 1 Set
-
12 Inch Small Dredge Sand Suction PumpUS$ 827 - 2,996MOQ: 1 Set
-
60m High Head Submersible Fecal Centrifugal PumpUS$ 1,356 - 2,996MOQ: 1 Set
Brand Name
Milestone
Place of Origin
Hebei, China
Type
Cutter Suction Dredger
Certification
ISO9001:2008/ CE
Warranty
6 months
Weight
Customized
Dimension(L*W*H)
Customized
Power Type
Diesel
Draught
60 cm
Dredging Depth
3 m

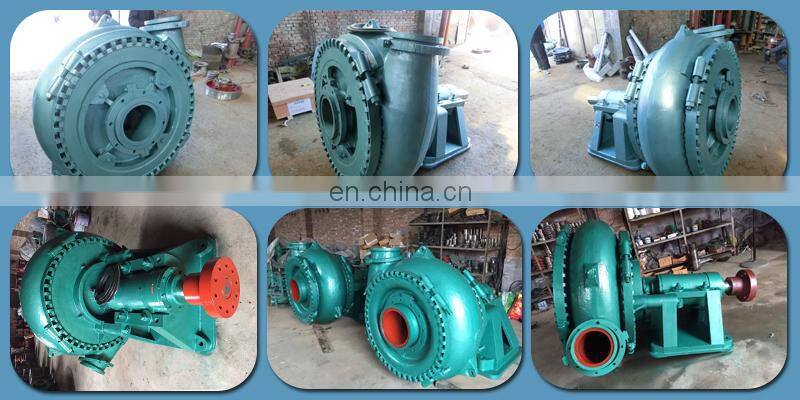

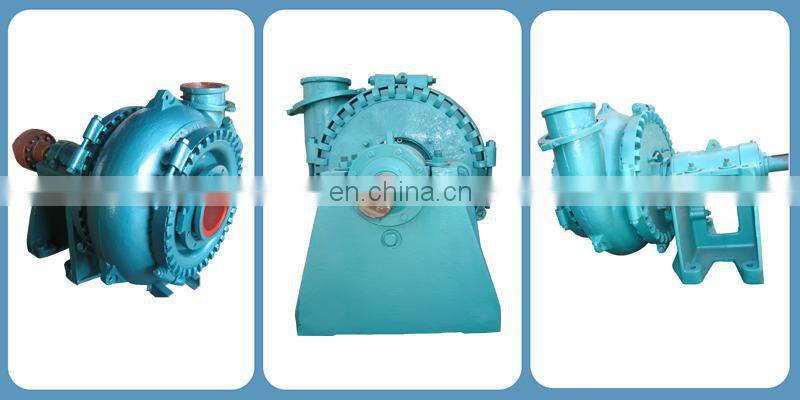

16 inch sand suction dredge pump
The G-type sand pump series are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The sand pump can be supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.
Features
G-type sand pump
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined sand pump using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clean Water Performance of Sand pump
| MG Clean Water Performance | ||||||
| Type | Allowable Mating Max.Power | Flow | Head | Max Eff | NPSH | Interrupted by the maximum particle |
| kw | m3/h | m | % | m | mm | |
| 6x4D-MG | 60 | 2.2-23.3 | 3-54 | 58 | 2.5-3.5 | 82 |
| 8x6E-MG | 120 | 4.2-55.6 | 6-52 | 60 | 3-4.5 | 127 |
| 10x8F-MG | 260 | 16.7-77.8 | 10-54 | 65 | 3-7.5 | 178 |
| 12x10G-MG | 600 | 12.5-122.2 | 10-60 | 65 | 1.5-4.5 | 220 |
| 14x12G-MG | 600 | 2.8-20 | 8-72 | 68 | 2-8 | 241 |
| 18x16G | 600 | 13.9-333.3 | 8-50 | 72 | 3-6 | 254 |
Curves of G-type sand pump
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Professional Sand pump and service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Pictures of ou factory
Why always me, because we do pump right!!
