Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > 25 Watt To220 Package Thick Film Power Resistors,Small Size, Big Power, no Inductance

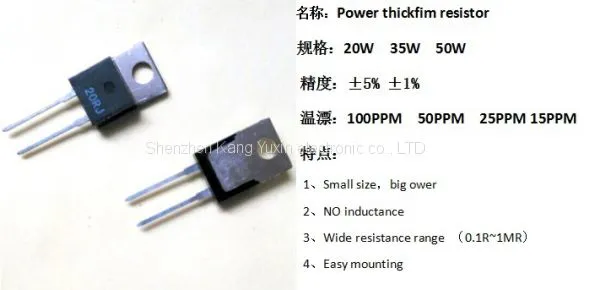

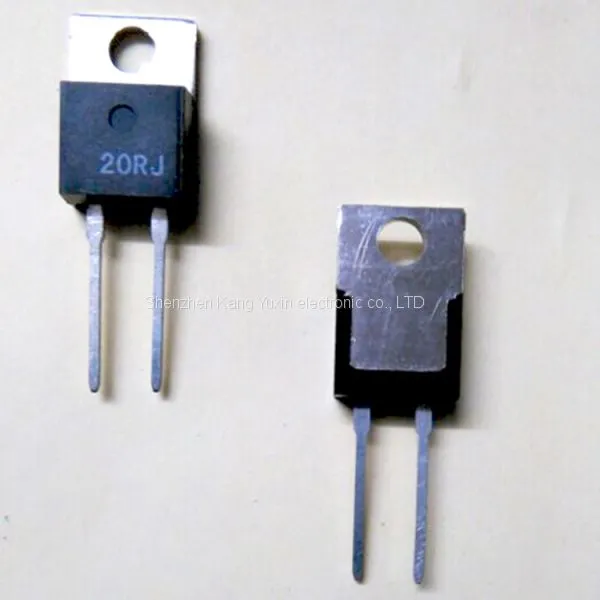

25 Watt To220 Package Thick Film Power Resistors,Small Size, Big Power, no Inductance
US$ 0.7 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
KYX
Place of Origin:
China
Model Number:
RTP35
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
35W 50WThick-Film High Voltage Resistors, Small Size, Big Power, no InductanceUS$ 0.7 - 3MOQ: 100 Pieces -
High Power Ceramic Cased Wirewound Tube Resistor(RX20) Reliable Performance and Easy to UseUS$ 1 - 20MOQ: 1 Piece
-
Non-inductive Power Wirewound Resistors Long Service Life and Easy Heat Dissipation.US$ 1 - 20MOQ: 1 Piece
-
Wirewound Power Resistors With Ceramic Tubelarge Power Load.a Variety of Wiring Methods, Easy toUS$ 1 - 20MOQ: 1 Piece
-
Vitreous Enamel Coating Ceramic Tube Braking Resistor,High Power, Small SizeUS$ 1 - 20MOQ: 1 Piece
Brand Name
KYX
Place of Origin
China
Model Number
RTP35
Type
Fixed Resistor
Rated Power
20W 35W 50W
Operating Temperature
-55℃--125℃
Package Type
Throught Hole
Resistance Tolerance
±5% ±2% ±1%
Resistance
0.1Ω-1MΩ
Technology
Thick Film
Temperature Coefficient
±50ppm/℃ ±100ppm/℃

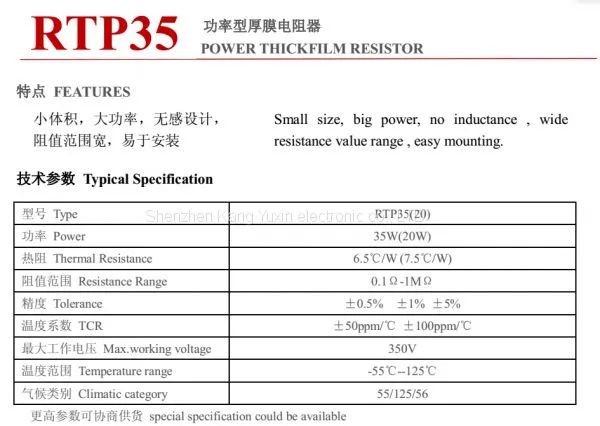

Key Specifications/SpecialFeatures:
Style:power thick film resistors
Small size, big power, no inductance , wide
resistance value range , easy mounting
rated power:20W 35W 50W
Resistance Range 0.1Ω-1MΩ
Resistance tolerance:±0.5% ,±1%,±5%
TCR ±50ppm/℃ ±100ppm/℃
Temperature range -55℃--125℃
Climatic category 55/125/56
For more detailed information, you can download the PDF specification below
