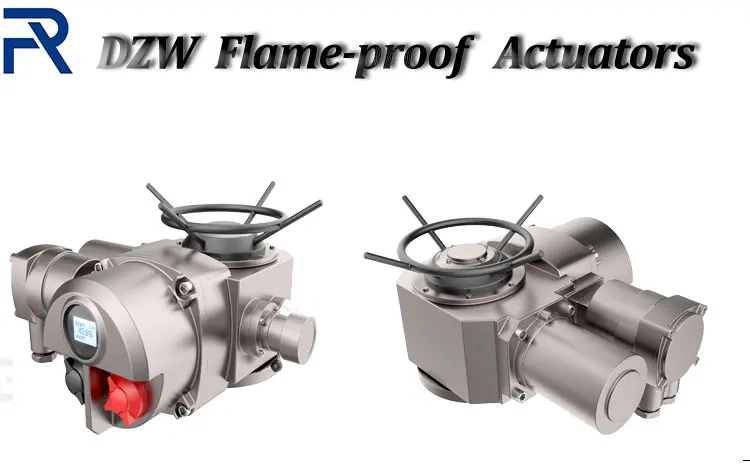

Intelligent Multi-turn Motorized Flameproof Electric Valve Actuator DZW250+WK2

Intelligent Multi-turn Motorized Flameproof Electric Valve Actuator DZW250+WK2 thumbnail-1
Intelligent Multi-turn Motorized Flameproof Electric Valve Actuator DZW250+WK2 photo-1
US$ 302 - pc MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
DZW250+WK2
Contact Supplier Request Quote Chat Now
Tianjin Freya Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
1 days

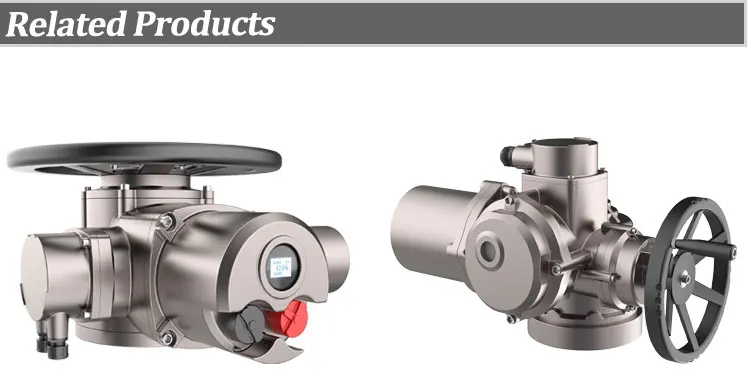

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number DZW250+WK2




The multi-turn valve devices is referred to as Z type intelligent integrated devices, which is a driving device for opening, closing or adjusting the valve. This type of device is suitable for gate valves, globe valves, diaphragm valves, plunger valves, throttle valves, sluice gates, etc. It can be used for both open and deep rod valves.

This series of device has the features of full function, reliable performance, advanced control system, small size, light weight, convenient use and maintenance. It can implement remote control, centralized control and automatic control of the valve, which is widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.

The performance of this product complies with the provisions of JB/T8528-1997 "Technical Conditions for Ordinary Valve Electric Devices". Ex-proof performance meets GB3836. 1-2000 "General requirements for electrical equipment for explosive gas atmospheres", GB3836. 2-2000 "Electrical equipment for explosive gas atmospheres, part 2, Ex-proof type "d"" and JB /T8529-1997 "Technical conditions for Ex-proof valve electric devices".

Multi-turn devices are classified according to the type of protection: outdoor type and Ex-proof type.

According to the control method: conventional type, intelligent integrated integration type and intelligent integrated regulation type.

According to the connection type, there are torque type, power station type and thrust type.





This product is a flameproof electric actuator
Explosion-proof motors are mainly used in coal mines, oil and gas, petrochemical and chemical industries. In addition, it is also widely used in sectors such as textiles, metallurgy, city gas, transportation, grain and oil processing, papermaking, and medicine. As the main power equipment, explosion-proof motors are usually used to drive pumps, fans, compressors and other transmission machinery.
Motors can be divided into flameproof motors, increased safety motors, positive pressure motors, non-sparking motors and dust explosion-proof motors according to the principle of explosion protection.

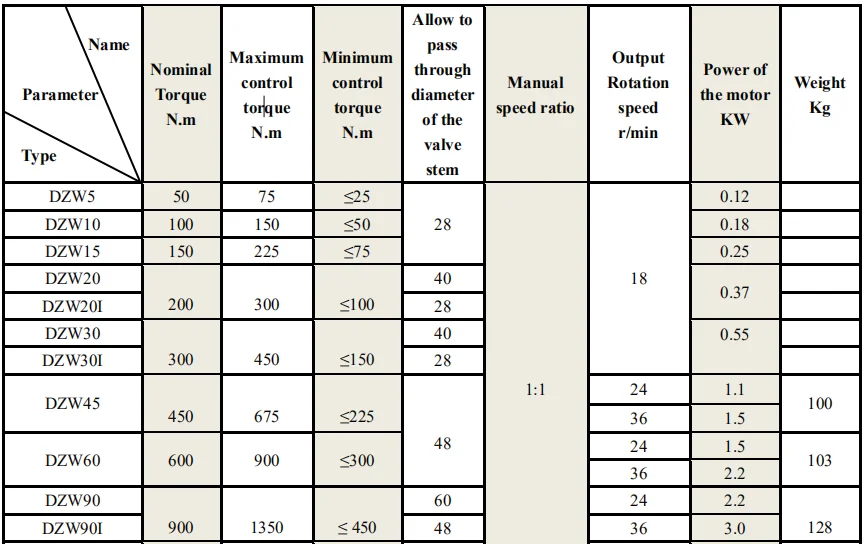

1.Voltage:Conventional valtage, three-phase 380V(50Hz)

Special valtage, three phase 660V, 415V(50Hz, 60Hz);

single phase 220V, 110V(50Hz, 60Hz)

2. Working environment:

 Ambient temperature: -20~+60℃(special order-40~+80℃).

 Relative humidity: ≤95% (at 25℃).

3.Type of protection: Outdoor type for use in locations where there are no flammable, explosive, and non-corrosive media. There are two kinds of Ex-proof products: dI and dIIBT4. dI is suitable for non-mining working face of coal mine; dIIBT4 is used for factory and is suitable for explosive gas mixture of environment IIA, IIB grade T1~T4.

4. Protection level: IP65 (special order IP67).

5. Working system: short time 10 minutes (Special order for 30 minutes short time).










Note: 1, Such as user needs, the factory can ovide additional speed 12/18/24/30/36/42/48/60 (r/min).
2, The conventional supply by three rows of counters, such as when a large numbe of turns
orders indicate, according to counter supply four rows.


Color can be customizedDZB_06.jpg

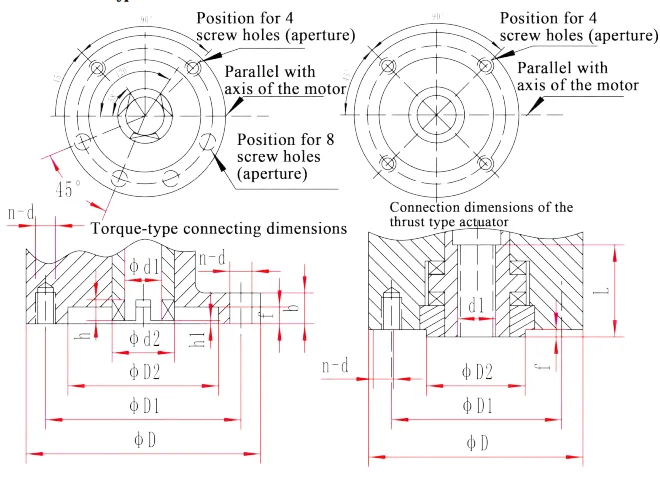

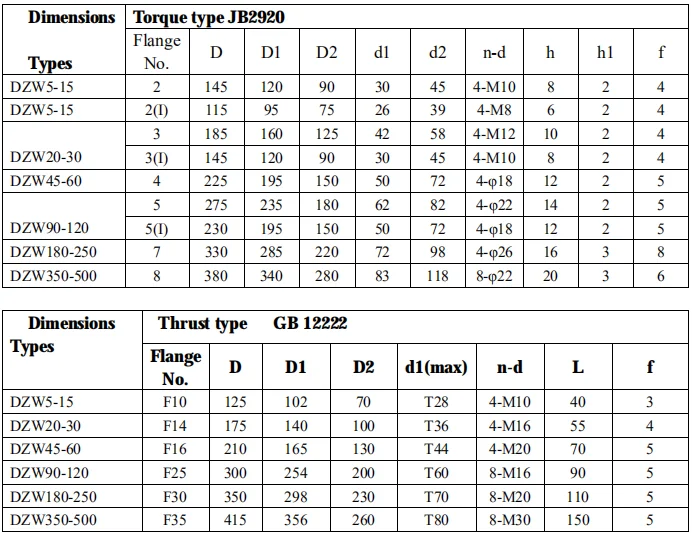

Product dimension figure333.png444.png





Note 1: L1 is outdoor type/Ex-proof type; L2 is intelligent integrated integration type/intelligent integrated integration Ex-proof type.

Note 2: F1 is outdoor type; F2 is Ex-proof type; F3 is intelligent integrated integration type.






DZW series multi-turn electric actuators are  suitable for  opening and closing parts of the linear

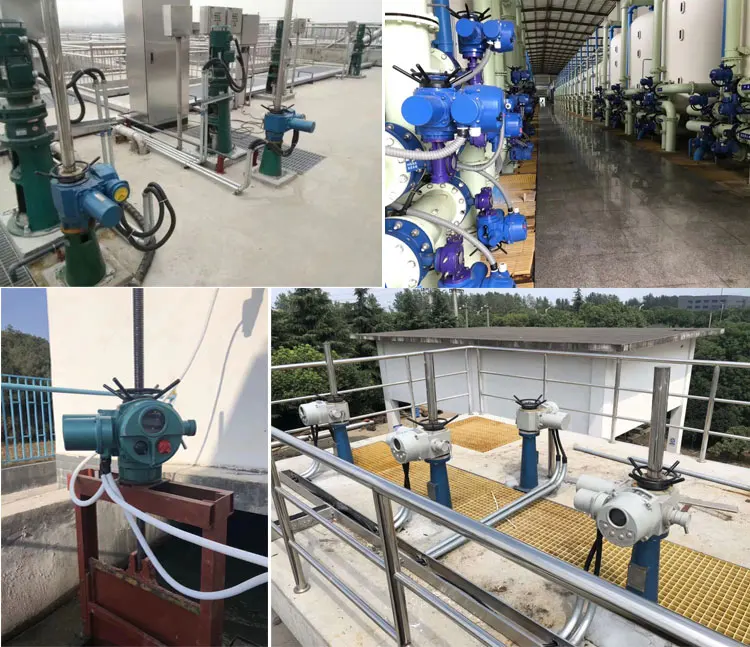

 motion valves, such as gate valves,globe valves, diaphragm valves, gates,water valve etc. For the valve to open, close or regulation. Remote control valve is achieved,the essential drive control and automatic control of. They have a fullfeatured, reliable performance, advanced control systems, smallsize, light weight, easy to use and maintain. Widely used in electric power, metallurgy, petroleum, chemical, paper, desulphurizationand dust removal, sewage treatment and other industries. Multi turn electric actuators are:  outdoor type, flameproof,the overall adjustment

 type, the overall type explosion, explosion overall adjustment type. By connection type, is also divided intotorque and thrust.

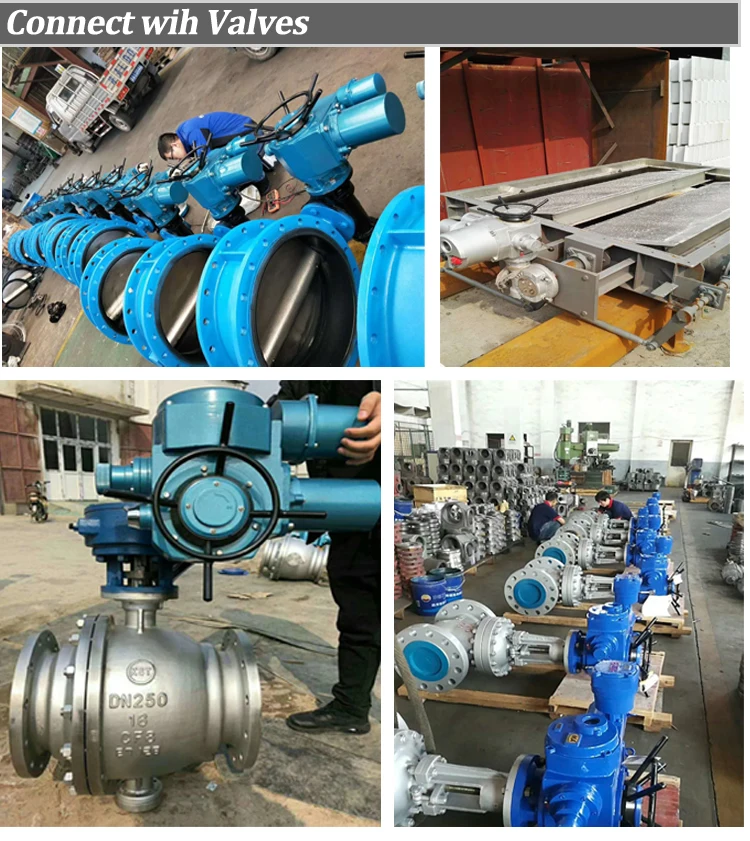

DZW series electric actuators can be equipped with various valves such as butterfly valves, gate valves, flapper valves, etc.




              DZW05-30 intelligent type                                          DZW45 ON-OFF type






         DZW90-120 ON-OFF type                                               DZW+RS reducer





Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.
