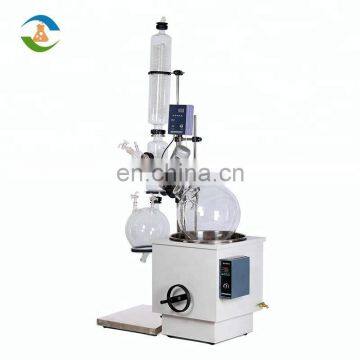

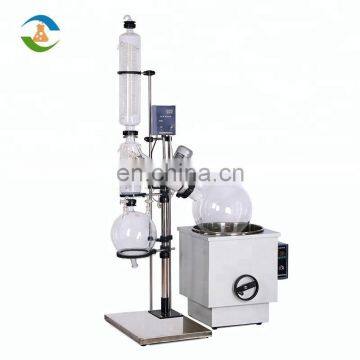

Vacuum Distillation Equipment RE-5002 Rotary Evaporator

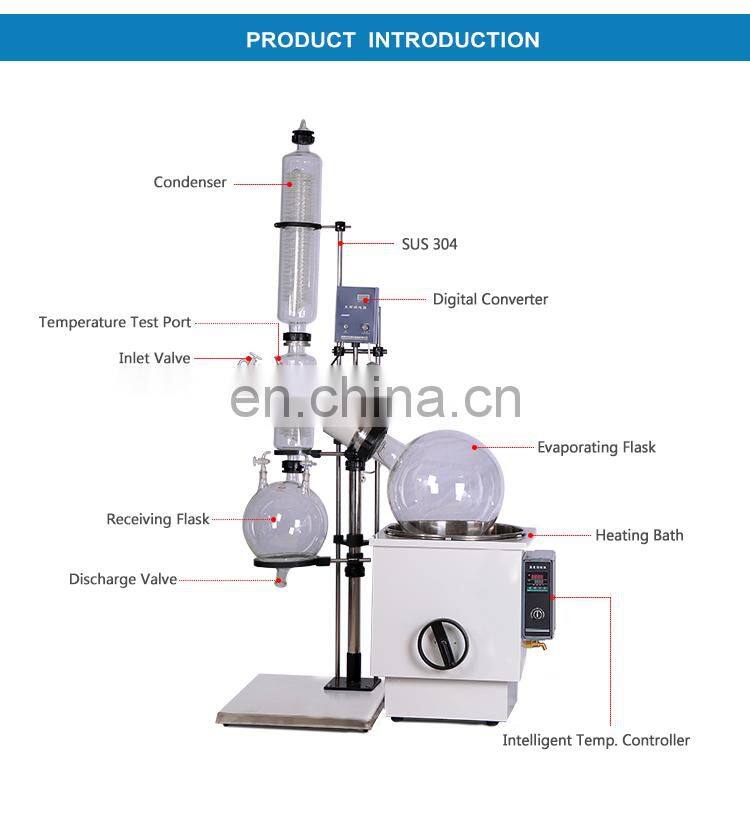

A rotary evaporator is a specially designed instrument for the evaporation of solvent (single-stage or straight distillation) under vacuum. The evaporator consists of a heating bath with a rotating flask, in which the liquid is distributed as a thin film over the hot wall surfaces and can evaporate quickly. The evaporation rate is regulated by the heating bath temperature, the size of a flask, the pressure of distillation and the speed of rotation. Advantages of the rotary evaporator(compared with static apparatus): With a vacuum rotary evaporator you can carry out single-stage distillation runs quickly and gently.
| Features of Rotary Evaporator | |
| 1 | Advanced EL gas-tight system keeps high vacuum degree. Gas-liquid separator, no reflux |
| 2 | Double condenser, collection rate over 95% |
| 3 | The rotating flask is easy to install and setup |
| 4 | Continuous feed are available. (Inlet Valve) |

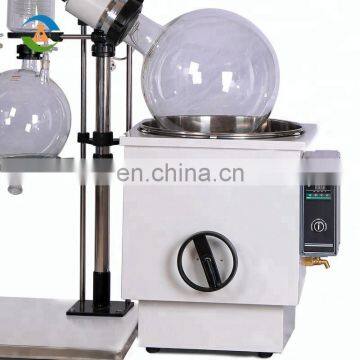

| 5 | Water bath, intelligent PID temp. controller, can be lifted up and down |
| 6 | Built-in transmission system, frequency conversion speed regulation, stable and reliable speed |
| 7 | Explosion-proof system is optional |
| 8 | 110 V/60Hz can be customized |
| Technical Parameters of All Models Rotary Evaporators | ||||||||

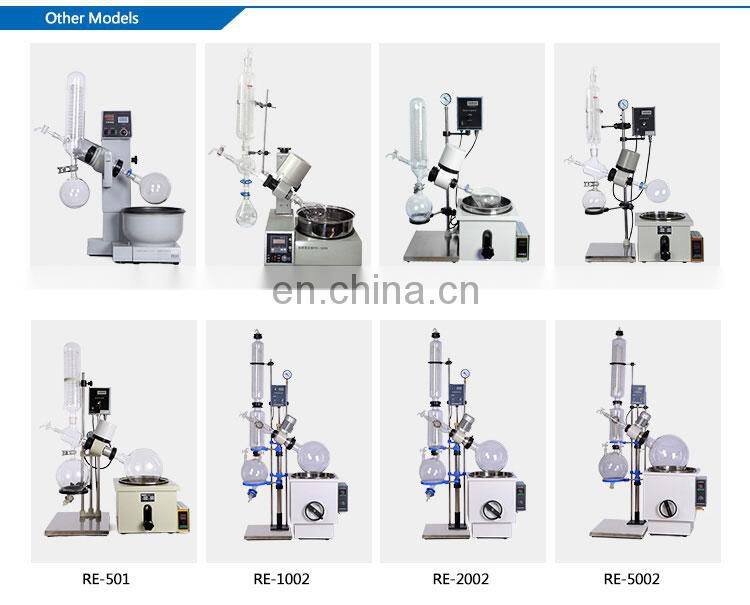

| Model | RE-2000B | RE-5299 | RE-201D | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-5002 |
| Evaporating Flask (L) | 2L 29#conical ground joint | 1/24#(0.25-2L) | 2 | 3 | 5 | 10 | 20 | 50 |
| Receiving Flask (L) | 1L Ball grinding mouth | 0.25-1L/24# | 1 | 2 | 2 | 5 | 10 | 20 |
| Rotating Motor (W) | 40 | 30 | 40(Stepless speed regulation) | 180 | 250 | |||
| Rotating Speed(R/min) | Digital Display 0-120 | 0~120 | 0~90 | |||||
| Water(Oil) Bath Power(W) | 1500 | 1500 | 1200 | 1500 | 3000 | 5000 | 7000/9000 | |
| Temperature Control Range | RT~99℃ | Intelligent digital/RT-399℃ | 0-99(250)℃ | |||||
| Temperature Fluctuation(℃) | ±1 | |||||||
| Evaporation Rate(H2O) | ≥1L/h | ≥1.5L/h | >3L/h | >5L/h | >9L/h | |||
| Condenser | The double backflow integration standard condenser | The double backflow integration standard condenser | ||||||
| Lifting Mode | Motor Automatic Lifting | Automatic Lifting | Water(Oil) Bath Mannal Lifting | Automatic Lifting | Water Bath Lifting or Electric Hoist | |||
| LifingHeight(mm) | 0~140 | 0~150 | 0~120 | 0~220 | ||||
| Voltage (V/Hz) | 220V 50/60 | 220V 50/60 380V 50/60 | ||||||
| Sealing Mode | PTFE, Fluoro Rubber Sealing | |||||||
Auxiliary Equipments of Vacuum Distillation Equipment Rotary Evaporator:
Circulating Water Vacuum Pump( Click for More Details):Used to provide a vacuum source
Circulating Water Cooling Chiller( Click for More Details): Used for Condensation
Small Volume Rotary Evaporator
The rotary evaporator is heated by a water bath(oil bath) to form a thin film under the adverse pressure condition, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus is particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on. And reflux extraction can be avaliable for parts evaporator models. It is one of the necessary instruments in the chemical industry, pharmaceutical industry, universities, and research laboratories and other units etc., while it is also the primary means for producing concentrated extracts and analysis experiments
Large Volume Rotary Evaporator
Features

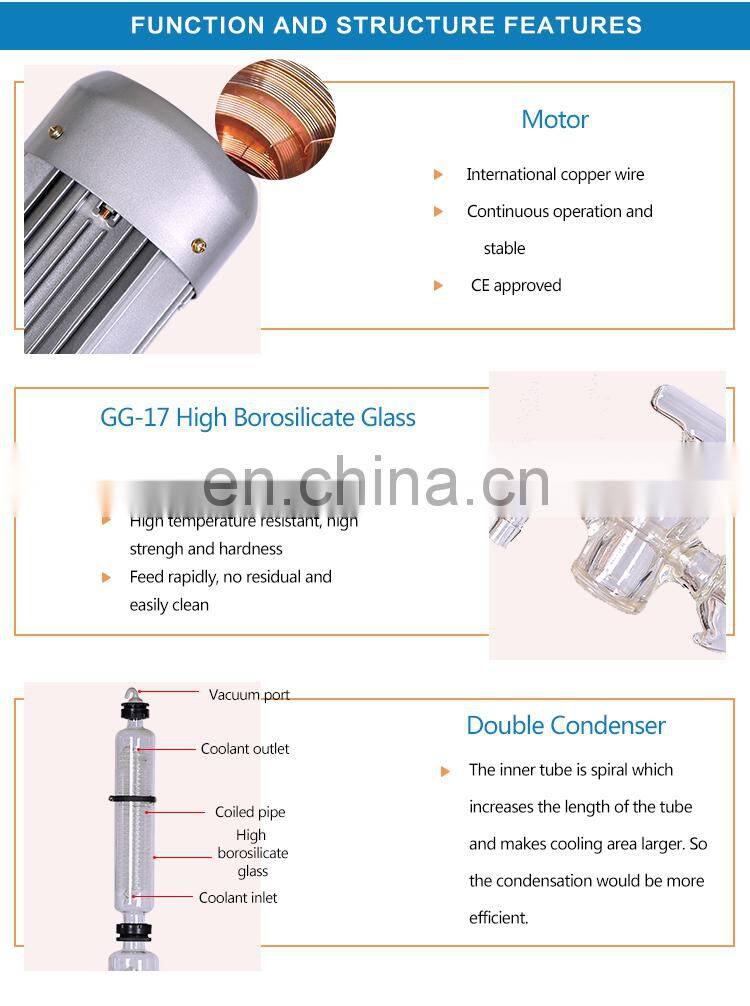

1. Adopting international advanced EL gas-tight system can keep a high vacuum degree. Gas-liquid separator, no reflux.
2. Host and vice highly effective double condenser, easy to install, proper sealing, collection rate over 95%.
3. The rotating flask is connected by screw nut, easy to install and setup.
4. There is a discharge valve, fast to collect solvent.
5. Continuous feed is available. (Inlet Valve)
Optional equipment
Circulating water vacuum pump: Used to provide a vacuum source
Low temperature cooling liquid circulation pump: For condensation and reducing waste of materials.
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
Guangzhou Fan Bo Lun Import and Export Trade CO., LTD. Is a collection research and development, production, sales, experimental instruments and equipment of private enterprise, with solid strength, reasonable prices, excellent service and many enterprises established long-term relations of cooperation. first-class highly professional team, technical team, facilities, and a meticulous quality control system, committed to being the respected leading enterprise in chemical instruments provide more efficient, energy saving. Good quality, customer trust, we always follow the principle of service.
Our flagship product
rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, cooling chiller), vacuum drying oven (8l small lab mini drying oven. vacuum drying oven ), blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), rotary vane vacuum pump, hydrothermal synthesis reactor, etc.
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for regular models and 5-10 working days for a customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund!
Any glassware broken after delivery voids all warranties. Thank you for understanding!
