Product Overview
The IDVB-DE2402 is our newest professional digital TV hend-end equipment. It adopts the slot structure with one case supports up to 6 pluggable module slots and each module can work and be configured individually. IDVB-ME04H encoding module supports 4 HDMI inputs with HEVC/ H.265 and AVC/H.264 video encoding and LC-AAC, HE-AAC and HE-AAC V2 audio encoding. it encoded 4 channels audio and video ES packet by TS flow through IP (MPTS/SPTS) over UDP/RTP/RTSP output via two data ports on front panel.
With its clear and concise page layout in the web management interface, operators can easily configure parameters and upgrade software for the device.
Main Features
1U chassis support 6 pluggable module slots
Supports maximum 24 HDMI inputs
Supports HEVC/ H.265 and AVC/H.264 video encoding format
Supports LC-AAC, HE-AAC and HE-AAC V2 audio encoding format
IP (MPTS/SPTS) output over UDP/RTP/RTSP protocol
Customizable OSD insertion function
Control and update by web management
Technical Specifications
Encoding Module
Input | 4 HDMI channel inputs per module 4/8/12/16/20/24×HDMI(1.4) inputs | |
Video Encoding | Encoding Format | HEVC/ H.265 , AVC/H.264 |
Resolution | 1920×1080_60P, 1920×1080_50P, 1920×1080_60I, 1920×1080_50I, 1280×720_60P, 1280×720_50P, 720×576_50P, 720×480_60P | |
Chroma | 4:2:0 | |
Bitrate | 0. 5Mbps~10Mbps per channel | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP, IPPP | |
Audio Encoding | Encoding Format | LC-AAC, HE-AAC, HE-AAC V2 |
Sampling rate | 44.1KHz | |
Bit-rate (per channel) | 48Kbps~320Kbps | |
Audio Gain | 0~30dB | |
Stream output | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module 1 MPTS and 24 SPTS output for 6 modules | |
Chassis
Expansion Slot | 6 x Pluggable module Slot |
Data Port | 2 x 1000M/100M Base-T Ethernet interface，select any data port to multiplex output or simultaneous output |
Management port | 1NMS interface for Web based management |
Dimension | 482mm×383mm×44mm(W× L× H) |
Approx weight | 5kg |
Temperature | 0~45℃(work), -20~80℃（Storage） |
Power | AC 100V-220V±10%, 50/60Hz |

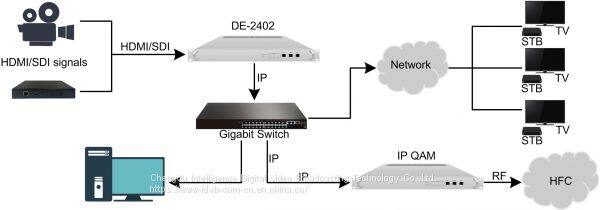

Application case
