Home > Industrial Equipment & Components > Bearing > Deep Groove Ball Bearing > 6200 Single Row Deep Groove Ball Bearing

6200 Single Row Deep Groove Ball Bearing

Name: 6200 Single Row Deep Groove Ball Bearing
Brand: HPC or Natural or OEM
SKU: 160305443

6200 Single Row Deep Groove Ball Bearing thumbnail-1

6200 Single Row Deep Groove Ball Bearing photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

HPC or Natural or OEM

Place of Origin:

China

Model Number:

6200, 6200 2RS, 6200 ZZ

Contact Supplier Request Quote Chat Now

Integration Trading (Xiamen) Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name HPC or Natural or OEM

Place of Origin China

Model Number 6200, 6200 2RS, 6200 ZZ

Number of Row Single Row

Seals Type Open, Seals, Shields

Precision Rating P6/Z3V3

Outside Diameter 30,

Bore Size 10,

	Principal dimensions			Load ratings		Speed limits		Weight	Radius
Part number	Bore	Outer	Width	Dynamic	Static	Grease	Oil	Weight	Radius
	d	D	B	C	Co	rpm		Kg	rs _min
	mm			kN		1 min−1		Kg	mm
6200	10	30	9	5,1	2,39	24000	30000	0,032	0,60
6200 ZZ	10	30	9	5,1	2,39	24000		0,032	0,60
6200 2RS	10	30	9	5,1	2,39			0,032	0,60

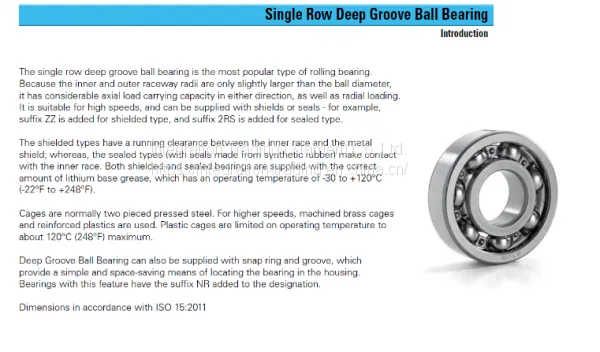

The single row deep groove ball bearing is the most popular type of rolling bearing. Because the inner and outer raceway radii are only slightly larger than the ball diameter,

it has considerable axial load carrying capacity in either direction, as well as radial loading. It is suitable for high speeds and can be supplied with shields or seals - for example, sufﬁx ZZ is added for shielded type, and sufﬁx 2RS is added for sealed type.

The shielded types have a running clearance between the inner race and the metal shield; whereas, the sealed types (with seals made from synthetic rubber) make contact with the inner race. Both shielded and sealed bearings are supplied with the correct amount of lithium base grease, which has an operating temperature of -30 to +120°C

(-22°F to +248°F).

Cages are normally two pieced pressed steel. For higher speeds, machined brass cages and reinforced plastics are used. Plastic cages are limited on operating temperature to about 120°C (248°F) maximum.

Deep Groove Ball Bearing can also be supplied with snap ring and groove, which provide a simple and space-saving means of locating the bearing in the housing. Bearings with this feature have the sufﬁx NR added to the designation.

Dimensions in accordance with ISO 15:2011

Product Tags: Ball Bearing , 6200 2RS , 6200 ZZ
