GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India

GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India thumbnail-1
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India thumbnail-2
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India thumbnail-3
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India thumbnail-4
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India thumbnail-5

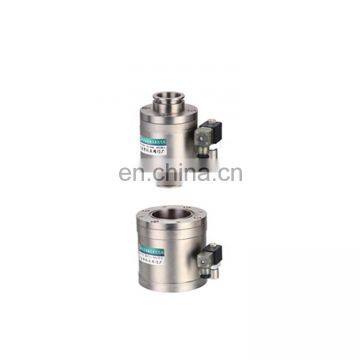

GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India photo-1
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India photo-2
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India photo-3
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India photo-4
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves Sold to India photo-5
US$ 100 - 100 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
EVP
Place of Origin:
Shanghai, China
Model Number:
GDQ-J25/KF
Contact Supplier Request Quote Chat Now
Jiuran Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVP
Place of Origin Shanghai, China
Model Number GDQ-J25/KF
Material Stainless Steel
Structure Angle
Pressure Vacuum
Power Pneumatic
Port Size KF25
Media Gas
Temperature of Media Normal Temperature

GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves sold to India

Product Description
INFORMATION OVERVIEW

GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves sold to India

Basic information:

1)  Model: EVP brand GDQ-J25/KF Pneumatic High Vacuum Damper Valves

2)  Applicable Scope(Pa):  105~1.3*10-4

3)  Valve Leak Rate(Pa.L/S): ≤1.3*10-6

Packaging Details:

Standard package suitable for all countries

Packing dimension: L x W x H= 250 x 200 x 250 mm

Net weight / Gross weight: 5 kg / 6 kg

Certificates:

ISO9001:2000 / SGS / CE

Lead Time:

Have many models in stock, if not, it is about 15 days when less than 5 units, about 30 days when less than 10 units.

If urgent, please tell us.

 More Items, please scan:
GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves sold to India

 Please click here for more information!



SPECIFICATIONS: Pneumatic High Vacuum Damper Valves

(Picture One)(KF) Overall Dimension

Model Diameter(DN) ΦD ΦB H A Flange Standard
GDQ-J10/KF 10 30 12.2 180 30 GB4982
GDQ-J16/KF 16 30 17.2 180 40
GDQ-J25/KF 25 40 26.2 200 50
GDQ-J40/KF 40 55 41.2 210 65
GDQ-J50/KF 50 75 52.2 276 70 /

(Picture Two)Lap Joint Flange Connections and Size

Model Diameter(DN) ΦD ΦB H A n-ΦC DNy n-Mb Flange Standard
GDQ-J50 50 110 90 276 70 4-Φ9 / / GB/T6070
GDQ-J63 63 130 110 283 88
GDQ-J80 80 145 125 314 88 8-Φ9
GDQ-J100 100 165 145 338 108
GDQ-J125 125 200 175 424 128 8-Φ11
GDQ-J(S)150 150 220 195 482 138 DN40(GB4982) JB919
GDQ-J(S)160 160 225 200 482 138 GB/T6070
GDQ-J(S)200 200 285 260 620 200 12-Φ11 DN50(GB/T6070)
GDQ-J(S)250 250 335 310 655 208 DN63(GB/T6070)
GDQ-J(S)300 300 380 350 783 250 8-Φ14 DN80(GB/T6070) JB919
GDQ-J(S)320 320 425 395 789 250 12-Φ14 GB/T6070
GDQ-J(S)400 400 510 480 1210 330 16-Φ14 DN100(GB/T6070) 16-M12
GDQ-J(S)400 400 500 465 1210 330 8-M16 JB919
GDQ-J(S)500 500 610 580 1270 360 DN125(GB/T6070) 16-M10 GB/T6070
GDQ-J(S)600 600 710 670 1562 450 12-Φ21 DN160(GB/T6070) 12-M18 JB919
GDQ-J(S)630 630 750 720 1562 450 20-Φ14 20-M10 GB/T6070

GDQ-J25/KF PVD Coating Machine Pneumatic High Vacuum Damper Angle Valves sold to India

 Please click here for more information!
