Fisco-1L FISCO Reactor System Lab Scale
US$ 2,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JIURAN
Place of Origin:
Shanghai, China
Model Number:
Fisco-1L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fisco-5L FISCO Reactor System (Lab Scale)US$ 2,000 - 8,000MOQ: 1 Set -
JFJ300-SH Laboratory Homogenizer High Speed Disperser for Cosmetic CreamUS$ 400 - 800MOQ: 1 Set
-
JRJ300-1JRJ300-SH for Soap Digital Laboratory Electric Shear Homogenizer High Speed Shear Disperser JRJ300-IUS$ 300 - 500MOQ: 1 Set
-
500ml-7L Tissue&Cell Laboratory Homogenizer High Speed Disperser Emulsifying Machine JFJ300-SHUS$ 400 - 800MOQ: 1 Set
-
JBS-110pro LED Digital Intelligent Timing Overhead Electric Stirrer MixerUS$ 300 - 500MOQ: 1 Set
Brand Name
JIURAN
Place of Origin
Shanghai, China
Model Number
Fisco-1L
General description
FISCO reactor system of lab scale includes working capacities of 0.5L, 1L, 2L, 5L and 10L. It can complete material dispersing, emulsifying, homogenizing and mixing processes under vacuum or pressurized conditions. It can intimate industrial production in laboratory by selecting high efficiency macro agitators, high shear homogenizing emulsifiers, vacuum seal system, and different sensor systems.
Unit pictures

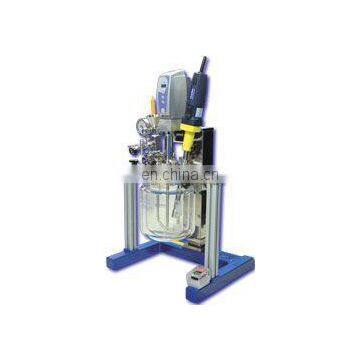

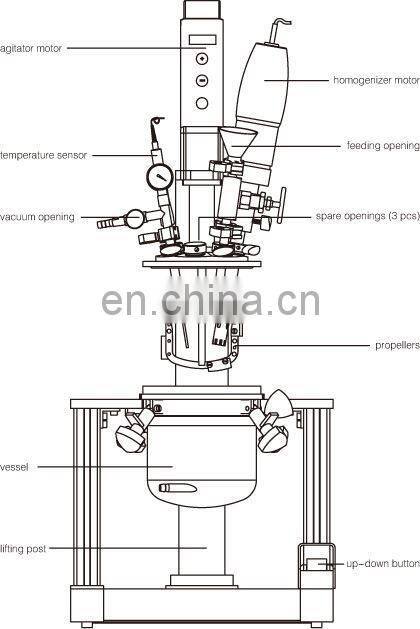

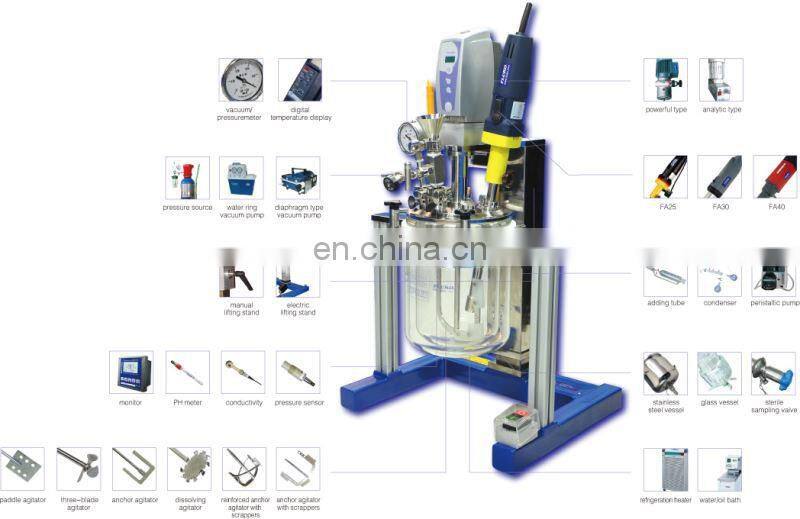

FISCO Reactor System (Lab Scale)
Technical Parameter
| Power supply | 220V, 50/60Hz |
| Min. agitating capacity | 300ml |
| Min. emulsifying capacity | 500ml |
| Max. emulsifying capacity | 1,000ml |
| Max. working temperature | 120°C |
| Accessible vacuum condition | -0.08Mpa |
| Max. handling viscosity | 100,000CP |
| Agitator motor power | 110W |
| Agitator rotation speed | 10-200rpm |
| Agitator type | Anchor agitator with scrappers |
| Scrapper materials | Silicon rubber |
| Homogenizer motor power | 500W |
| Homogenizer rotation speed | 10,000rpm-28,000rpm |
| Homogenizer generator type | 20DG |
| Openings on vessel cover | Homogenizer opening, hopper opening, temperature gauge opening, vacuum opening, 3 spare openings |
| Lifting height | 210 |
| Main medium-contact materials | SS316L, borosilicate glass, FKM |
| Outer diameter of vacuum opening | 10 |
| Jacket inlet/outlet size | 12 |
| Ambient temperature | 5-40°C |
| Permissible relative humidity | 80% |
| Overall dimension | 400×390×780 |
| Standard gross weight | ~35kg |
| Package | Wooden case |
