Auto Tilting Mixer
Introduction:

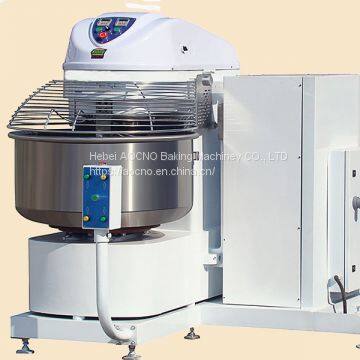

This is a compact self-tilting mixer, coupled with a dependable and safe hydraulic elevator-tipper. This innovative system provides the time saving facility to vertically raise and rotate the whole mixer to tip the dough directly onto a suitable bench or worksurface.
Features:
1. Cast iron structure (base, column and head).
2. Stainless steel dividing blade, spiral arm, bowl.
3. Independent motors for bowl and spiral, and two speeds.
4. Self-tipping spiral mixer and the lifting system operated by hydraulic cylinder.
5. Bowl rotation inversion in first speed.
6. Heavy duty construction.
7. Motor overload protection.
Specifications:
Model | ACN-MT100 | ACN-MT130 | ACN-MT160 | ACN-MT200 | |
Voltage | 380V/50HZ/3PH | ||||
Power of Main Motor(kw) | Low Speed | 2.9 | 3.6 | 4.6 | 4.6 |
High Speed | 4.75 | 5.25 | 7.5 | 7.5 | |
Rotating Speed of The Auger(r/min) | Low Speed | 92.5 | 92.5 | 92.5 | 92.5 |
High Speed | 185 | 185 | 185 | 185 | |
Capacity Dough Capacity(kg) | 16-100 | 24-130 | 32-160 | 40-200 | |
Flour Capacity(kg) | 10-60 | 15-80 | 20-100 | 25-125 | |
Water(kg) | 6-38 | 9-50 | 12-60 | 15-75 | |

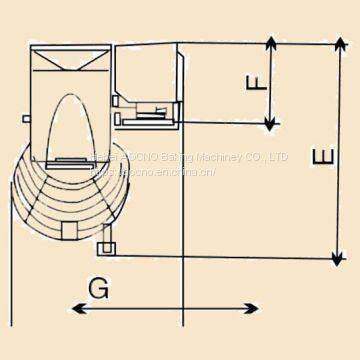

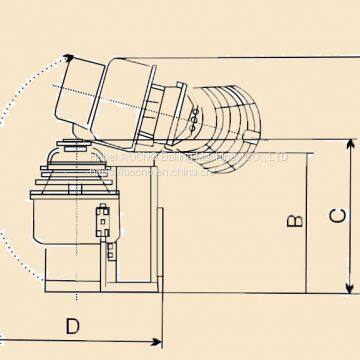

DimensionsA(mm) | 2400 | 2495 | 2500 | 2500 | |
B(mm) | 1400 | 1500 | 1490 | 1485 | |
C(mm) | 1615 | 1615 | 1625 | 1625 | |
D(mm) | 1610 | 1610 | 1700 | 1850 | |
E(mm) | 1600 | 1635 | 1635 | 1725 | |
F(mm) | 630 | 630 | 630 | 630 | |
G(mm) | 1250 | 1280 | 1300 | 1340 | |
Weight (kg) | 800 | 1150 | 1230 | 1480 | |
