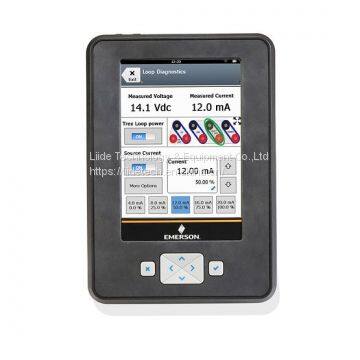

Emerson AMS TREX Communicator TREXLFPKLWS1S Hart FF Plus Module Standard Type 1 Year With Approvals

Emerson AMS TREX Communicator TREXLFPKLWS1S Hart FF  Plus Module Standard Type 1 Year with Approvals

TREXLFPKLWS1S

Trex:  base trex platform

Includes AC Adapter, USB Cable, Lead Set with connectors, Hand Strap, Quick Start Guide and Resource DVD. ValveLink Mobile application available at no charge once Trex unit is activated.

L: Device Communicator Plus communication module. Includes additional Lead Set with connectors.

F: HART + Foundation Fieldbus Applications

P: Rechargeable Li-Ion Power Module

KL: ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable)

W: Wireless

Includes Bluetooth, WiFi, and NFC radios. Available only in countries where spectrum approval has been obtained.

S1: Standard Support (1 Year)

S: carrying case

Features:

Intrinsically Safe:  ATEX;  CSA (US/Canada);  IECEx;  FISCO.

Commission and validate devices faster.

Quickly fix issues in the field with advanced device diagnostics;

Configure and test valves inline;

Improve efficiency with a modern,intuitive user interface.

Specifications:

Microprocessor: 800 MHZ ARM Cortex A8/NXP

Memory Internal Flash: 2 GB NAND and 32 GB extended flash.

RAM: 512 MB DDR3 SDRAM.

Display: 5.7 in (14.5 cm) color VGA resistive touchscreen, 640 x 480 pixel.

Battery: Rechargeable Lithium- Ion Power Module.

Operating time: 8+ hours of typical use.

Charge time: 3-4 hours.

LED: 6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC

adapter is charging the power module.

Battery charger: Barrel Round Plug Tip, Input voltage 90-264 VAC, 47-63 Hz, Cables included with US, EU, UK, and AU plugs.

Wirelss approvals: FCC, CE, RED and IC Approvals;Certified for use in over 100 countries;

Bluetooth 2.1, Range up to 10 m;

Wi-fi 802.11 b/g, range up to 33m;

Active NFC, range up to 20cm.

Usage: -20 to 55°C (-4 to 122°F)

Tested to survive a 1-meter drop test onto concrete

IP54

ATEX, CSA, IECEx

Models:

TREXCHPNAWS3S、TREXCHPNAWP1S、TREXCHPNAWP3S

TREXCHPKLWS1S、TREXCHPKLWS3S、TREXCHPKLWP1S

TREXLFPNAWP1S、TREXLFPNAWP3S

TREXLFPKLWS1S、TREXLFPKLWS3S、TREXLFPKLWP1S、TREXLFPKLWP3S
