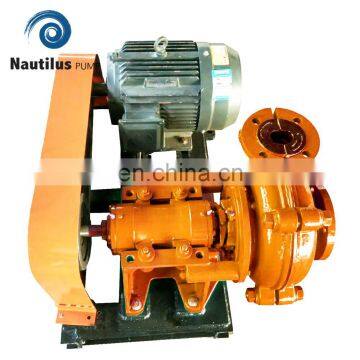

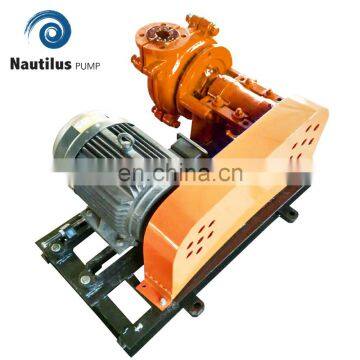

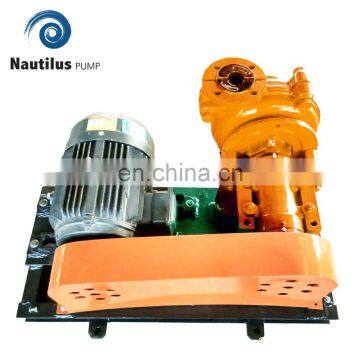

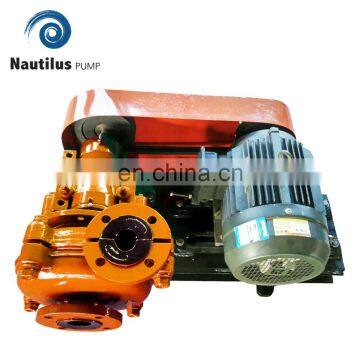

Abrasion Resistance Pumping Equipment Slurry Pump
US$ 732 - 732
/ Set
1 Set(Min. Order)
- Xin gang
- T/T Credit Card
You May Like
Product Details
| Brand Name | Nautilus Pump | Place of Origin | Hebei, China | |
| Model Number | 25HS-B | Application | Sewage | |
| Power | Electric | |||
| Structure | Single-stage Pump |
Product Description
Product Description
The horizontal or vertical slurry pump is designed to allow the passage of slurry with large size particles or highly abrasive solid, so it needs to be abrasion resistant and have anti-wear property.
| TYPE | Capacity | Head | Speed | Allowable Max.Power | Weight (Metal / Rubber ) |
| 25HS-B | 12.6-28.8 m3/H | 6-68 m | 1200-3800 r/min | 15 kw | 91 KG / 77 KG |
| 40HS-B | 32.4-72 m3/H | 6-58 m | 1200-3200 r/min | 15 kw | 104 KG / 118 KG |
| 50HS-C | 39.6-86.4 m3/H | 12-64 m | 1300-2700 r/min | 30 kw | 191KG / 154 KG |
| 75HS-C | 86.4-198 m3/H | 9-52 m | 1000-2200 r/min | 30 kw | 263 KG / 236 KG |
| 100HS-D | 162-360 m3/H | 12-56 m | 800-1550 r/min | 60 kw | 626 KG / 454 KG |
Application
Application
- The slurry pump widely used in mining plant , Coal mining etc.
- Also widely usely in river sand dredging work, sand plant.
- Fine Tailing , mineral processing, gold mining beneficial and so on.
- Metallurgy , electric factory and chemical industry etc .
Features
Features
a) Ductile iron casing provides durable, safety and long service life.
b) The impeller and liner are all made of high chrome alloy(Cr26) material with features of anti-wear, anti-abrasive, high efficiency and long service life.
c) Slurry pump's bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication.
Packaging & Shipping
Our Services
SERVICE
a) Warranty: one year for pump, three month for spare parts.
b) Provide comprehensive technical support, from the selected models to use.
c) Technical team provide complete design for customers.
b) Provide comprehensive technical support, from the selected models to use.
c) Technical team provide complete design for customers.
