Home > Products > VFFS Vertical Packing Machine > Vertical Shredded Freeze Dried Cuttlefish/Squid Packing Machine for Plastic Bag
Vertical Shredded Freeze Dried Cuttlefish/Squid Packing Machine for Plastic Bag
- 10 Piece / Pieces per Month
- Shunde Port
- T/T Credit Card
- Full Automated VFFS Packaging Machines for Pharmaceutical/Medical Powder
- CE Certified Automatic Coco Coffee Bean Packing Machine
- Commercial Automatic Weighing VFFS Dry Roasted and Salted Cashew Nut Packaging Machine
- Easy Operation Automatic Protein Powder Vertical Packaging Machine Price
- TOPY Auto Vertical Small Biscuit Candy Cookies Packing Machine
- Alibaba Guaranteed Automatic Vertical Doypack Pouch Corn Silage Coffee Packing Machine
Product Details
Brand Name: | TOP Y MACHINERY | Place of Origin: | Guangdong, China | Certification: | CE Certification |
Dimension(L*W*H): | (L)2000mm*(W)1930mm*(H)2200mm | Voltage: | 110V/220V/240V/380V/415V/440V | ||
Function: | Filling, Sealing | Condition: | New | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Packaging Type: | Bags, Film, Foil, Pouch, Stand-up Pouch |
Packaging Details
Plywood cases
Product Description

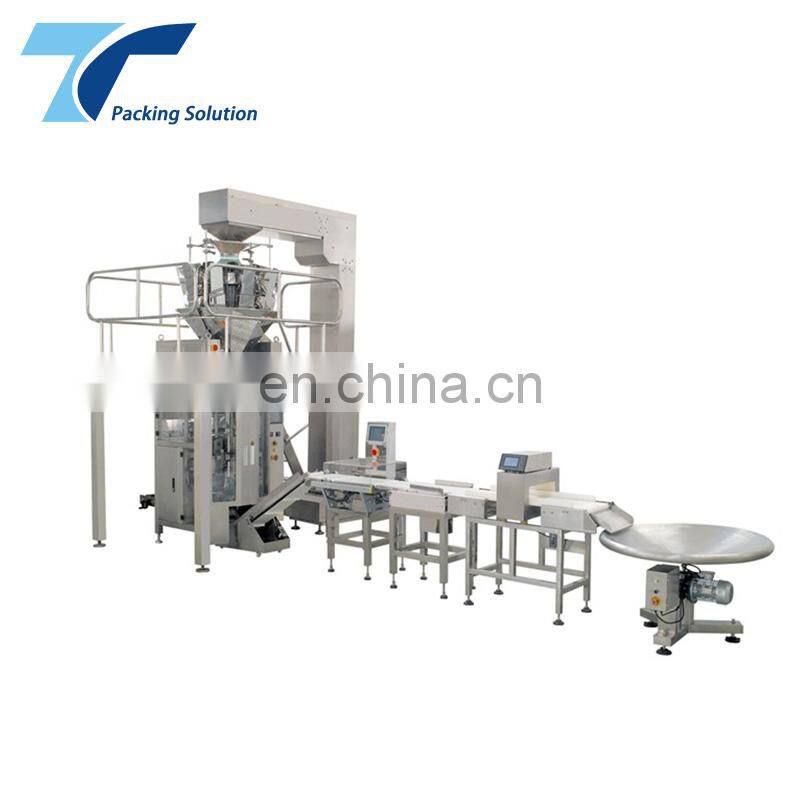

Vertical Shredded Freeze Dried Cuttlefish/Squid Packing Machine for Plastic Bag
Application:
It is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs, etc .
Technical Data:
TOPY-VP420X | TOPY-VP500X | TOPY-VP620X | |
Bag Size | (L)50-230mm* (W)60-200mm | (L)50-300mm* (W)80-240mm | (L) 50-380mm* (W)110-300mm |
Bag Speed | Max.100bags/min | Max.100bags/min | Max.100bags/min |
Max. film width | 420mm | 500mm | 620mm |
Air consumption | 0.6Mps 0.2m3/min | 0.6Mps 0.2m3/min | 0.6Mps 0.2m3/min |
Power supply | 3.5kw, 220V 50/60HZ | 4kw, 220V 50/60HZ | 4.5kw, 220V 50/60HZ |
Packed Dimensions | (L)1300*(W)960*(H)1150mm | (L)1550*(W)1160*(H)1480mm | (L)1600*(W)1260*(H)1680mm |
Features:
1) PLC controller system for precision, reliability, simple-operating, visual touch screw.
2) Servo motor film driven system for accuracy positioning.
3) Perfect automatic alarming protective function, reduce the consumption up to the lowest.
4) Completed with filling machine. Automatically realizing feeding, measuring, filling, bag forming and date printing all packaging process.
Details of Machinery:
Bag Type

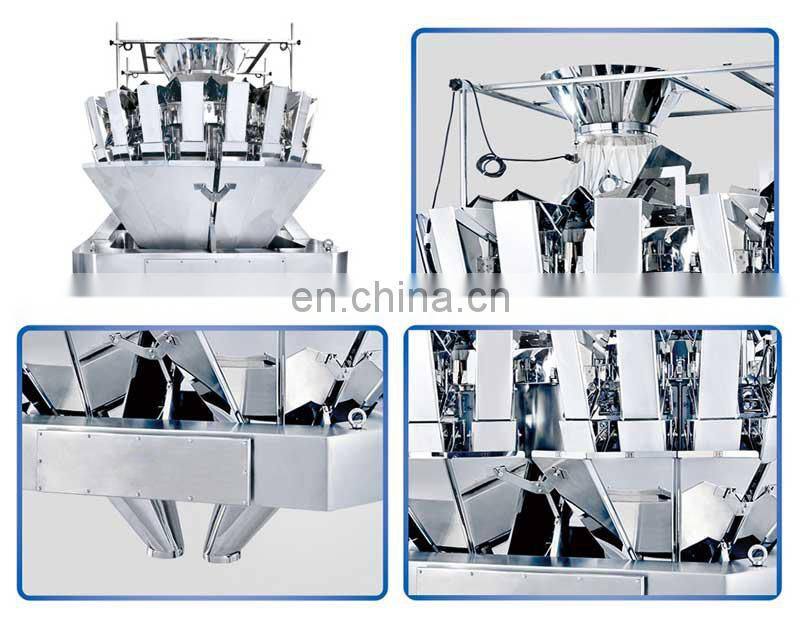

Multi heads weigher
Features :
1.High accuracy and tailored load cell.
2.Intelligent multi-sampling stable mode, higher accuracy.
3.Intelligent alarm diagnosis.
4.High speed stagger dump function.
5.Modular and CAN bus technology, more efficient and stable .
6.Modbus Industry communication protocol .
Mechanical and Character:
1.More hopper to combination,higher accuracy, faster speed.
2.Separate main vibrator, control the thickness of product independently.
3.Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4.Machine frame, discharge chute with compatible design, double discharge chute gate can change to single discharge chute gate easily .
5.Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.
6.Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.
production process
shredded squid packing machine
shredded squid packing machine
shredded squid packing machine
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
