Convenient and efficient Factory Supplier Price Raisins Form Fill Seal Packing Machine
Raisins Packing Machine

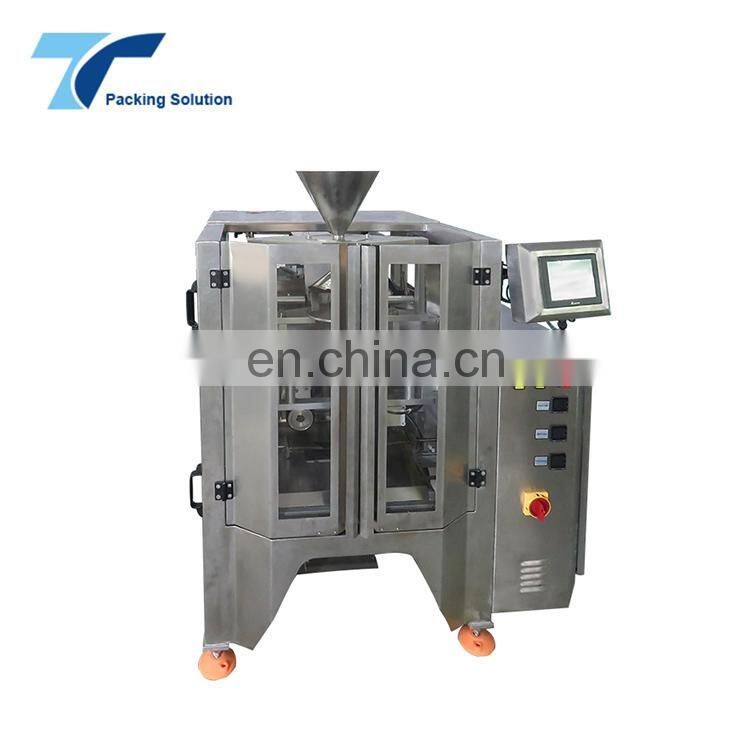

1.TOPY VP420/500/620/800 Middle Speed Vertical packaging Machine
Application:
Suitable to pack coffee bean, seed, sugar, salt, spice, potato chips, puffed food, jelly, pet food, snacks, gummy, etc.
- PLC controller with touch screen interface
- Servo-driven end seal jaws
- Servo-driven film transport
- Hot printer and film feeding system synchronous
- Quickly changing one-piece bag former
- Eye mark sensor for film tracking
- Stainless steel frame
Main Features
1) Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2) Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3) Single-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4) Perfect alarm system to make problem solved quickly.
5) Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6) Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.

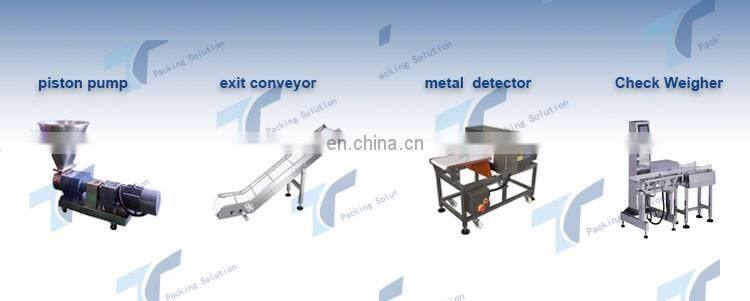

7) Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
Specifications
Model |
TOPY-VP500 |
TOPY-VP620 |
TOPY-VP800 |
Bag Size |
(L)100-300mm (W)80-240mm* |
(L)100-380mm* (W)100-300mm |
(L) 50-380mm* (W)110-400mm |
Bag Speed |
15- 60bags/min |
15- 60bags/min |
10-30bags/min |
Film width |
180-500mm |
220-620mm |
340-800mm |
Air consumption |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
Power supply |
3.0kw, 220V 50/60HZ |
4.0kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
Packed Dimensions |
(L)1550*(W)1160*(H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500*(H)2050mm |
Details of Machinery:
Bag Type
Raisins Packing Machine
