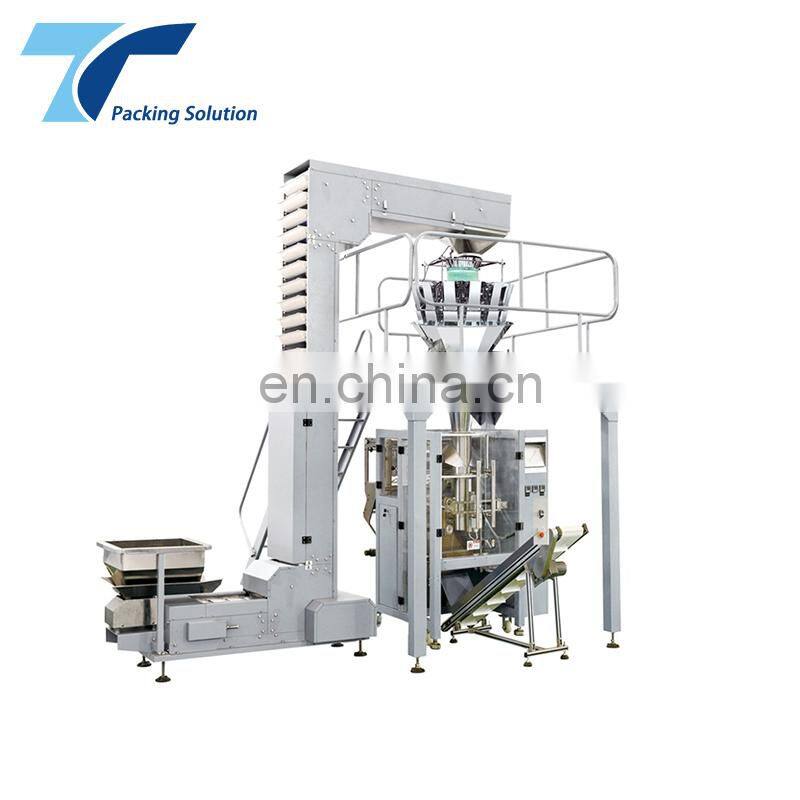

Single Servo Collar Type Cassava Chips Packing Machine for Cassava Balls Slices
Combined parts:
•Bucket Elevator with Vibrofeeder
•Multi-head Automatic Combination Weigher
•Support Platform
•Vertical Bag-making Filling Packing Machine 420
•Take-away Conveyor
Application:
This packing system is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry,.such as snack foods,frozen foods,vegetables,fruits, confectionary. Chemicals and other granules.
VFFS Machine
Standard Features
· PLC controller with touch screen interface
· Servo-driven end seal jaws
· Servo-driven film transport
· Hot printer and film feeding system synchronous
· Quickly changing one-piece bag former
· Eye mark sensor for film tracking
· Stainless steel frame
Specifications
TOPY-VP420X |
TOPY-VP500X |
TOPY-VP620X |
|
Bag Size |
(L)50-230mm* (W)60-200mm |
(L)50-300mm* (W)80-240mm |
(L) 50-380mm* (W)110-300mm |
Bag Speed |
Max.100bags/min |
Max.100bags/min |
Max.100bags/min |
Max. film width |
420mm |
500mm |
620mm |
Air consumption |
0.6Mps 0.2m3/min |
0.6Mps 0.2m3/min |
0.6Mps 0.2m3/min |
Power supply |
3.5kw, 220V 50/60HZ |
4kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
Packed Dimensions |
(L)1300*(W)960*(H)1150mm |
(L)1550*(W)1160*(H)1480mm |
(L)1600*(W)1260*(H)1680mm |
Details of Machinery:
Optional Devices:

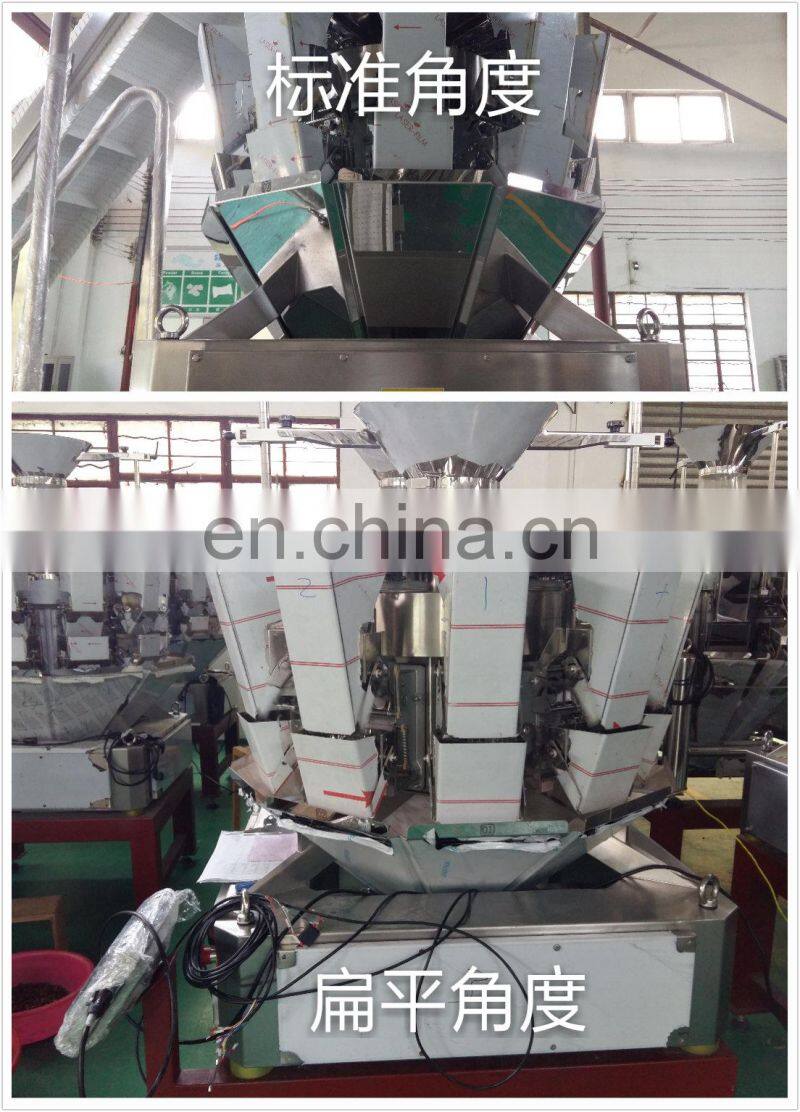

Multihead weigher:
1.High precision data-type weighing sensor realizes precision weighing.
2.Microcomputer control system with double vibration feeding and imported instrument, advanced technology and simple operation.
3.Stainless steel sealed machine body; corrosion resistance and dust resistance.
4.The measuring hopper can be disassembled rapidly; and it’s convenient in cleaning and maintenance.
5.It can make different combination to enlarge according to customer’s requirements.
6.With strong compatibility, it’s easy to supported with other packing device
Bag Type
If you think the above machine can't fulfill your requirement , please click the following link to get more machine demonstration, like:
Granules Packaging Systems >>
Liquid Packaging Systems>>
Powder Packaging Systems>>
And customization is avalable for us, pls click here to customize packing solution.
