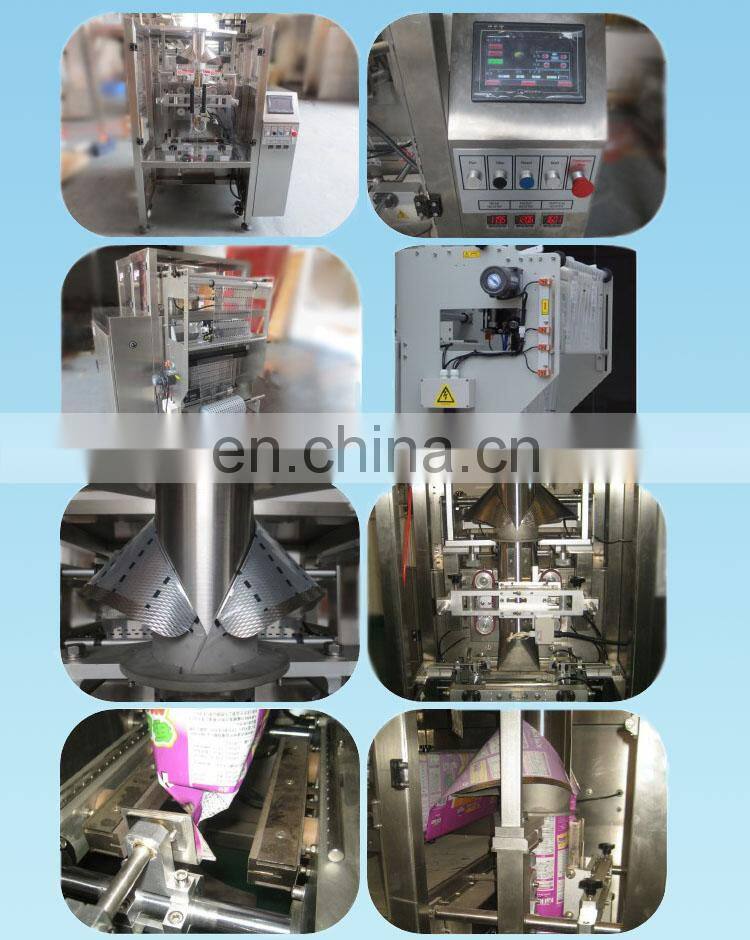

Foshan manufacturer vertical nut packing machine for plastic bags
Standard Features
· PLC controller with touch screen interface
· Servo-driven end seal jaws
· Servo-driven film transport
· Hot printer and film feeding system synchronous

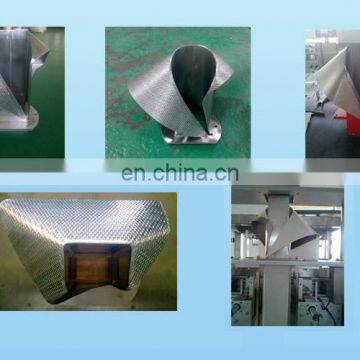

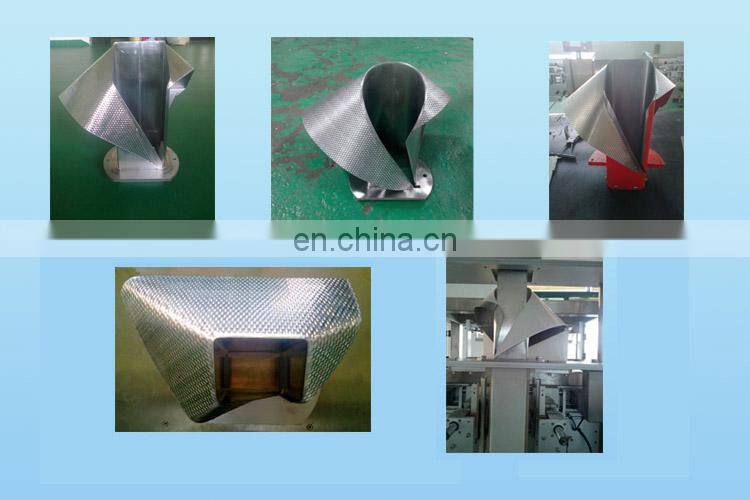

· Quickly changing one-piece bag former
· Eye mark sensor for film tracking
· Stainless steel frame
Details of Machinery:
Model |
TOPY-QSM320 |
TOPY-QSM430 |
TOPY-QSM520 |
Bag Type |
Standup Quad-seal |
Standup Quad-seal |
Standup Quad-seal |
Film Width |
260-320mm |
260-430mm |
280-520mm |
Bag Length |
200mm |
300mm |
350mm |
Packing Speed |
Max. 40bags/min |
Max. 40bags/min |
Max. 40bags/min |
Power Supply |
220V, 3KW |
220V, 3.5KW |
220VV, 4KW |
Compress Air |
0.3m3/h |
0.3m3/h |
0.3m3/h |
Weight |
450kg |
600kg |
850kg |
Option Devices:
Nitrogen gas flushing
Hole punch device
Safety switch and relay
Tear notch device
Static charge eliminator
Application:
