Automatic Vertical 1kg Cooking Edible Oil Soft Drink Pouch Packing Machine in Guangdong

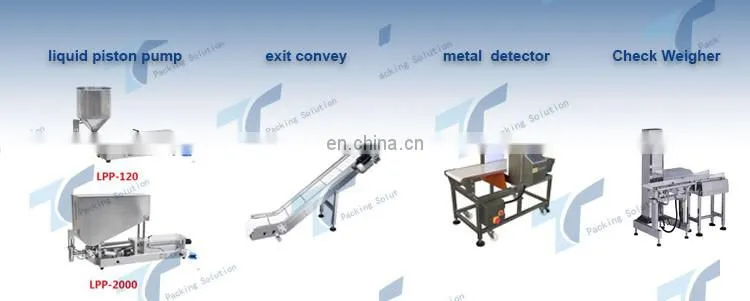

Combined parts:
•Piston Pump
•Vertical Bag-making Filling Packing Machine 620
Application:
It is designed to pack liquid/paste products, such as water, ketchup, cooking oil, milk, sauce, etc.
VFFS Machine
Standard Features
· PLC controller with touch screen interface
· Servo-driven end seal jaws
· Servo-driven film transport
· Hot printer and film feeding system synchronous
· Quickly changing one-piece bag former
· Eye mark sensor for film tracking
· Stainless steel frame
· Low cost high gain, high speed and efficiency.
· Famous brand PLC control system, large touch screen, convenient to operate;
· Servo film pulling system, Pneumatic horizontal sealing;
· minimize the loss with complete automatic warn protection function;
· It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
Details of Machinery:
Model |
TOPY-VP500 |
TOPY-VP620 |
TOPY-VP800 |
Bag Size |
(L)100-300mm (W)80-240mm* |
(L)100-380mm* (W)100-300mm |
(L) 50-380mm* (W)110-400mm |
Bag Speed |
15- 60bags/min |
15- 60bags/min |
10-30bags/min |
Film width |
180-500mm |
220-620mm |
340-800mm |
Air consumption |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
Power supply |
3.0kw, 220V 50/60HZ |
4.0kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
Packed Dimensions |
(L)1550*(W)1160* (H)1480mm |
(L)1600*(W)1260* (H)1680mm |
(L)1600*(W)1500* (H)2050mm |

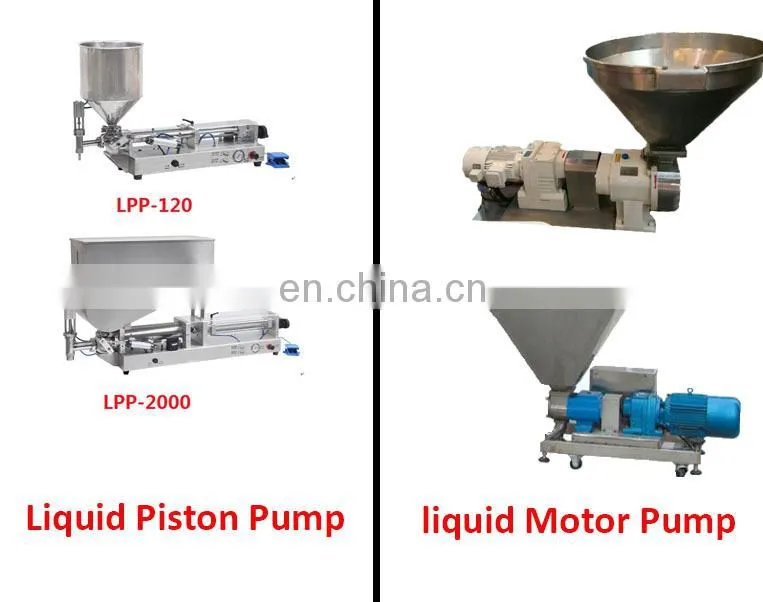

Piston Pump:
Application:
Suitable for packing many kinds of liquid; such as water,milk, oil, shampoo, sauce, paste,jam etc
