New Design Factory Price Shisha Tobacco Vertical Packaging Machine
Shisha Tobacco Packaging Machine

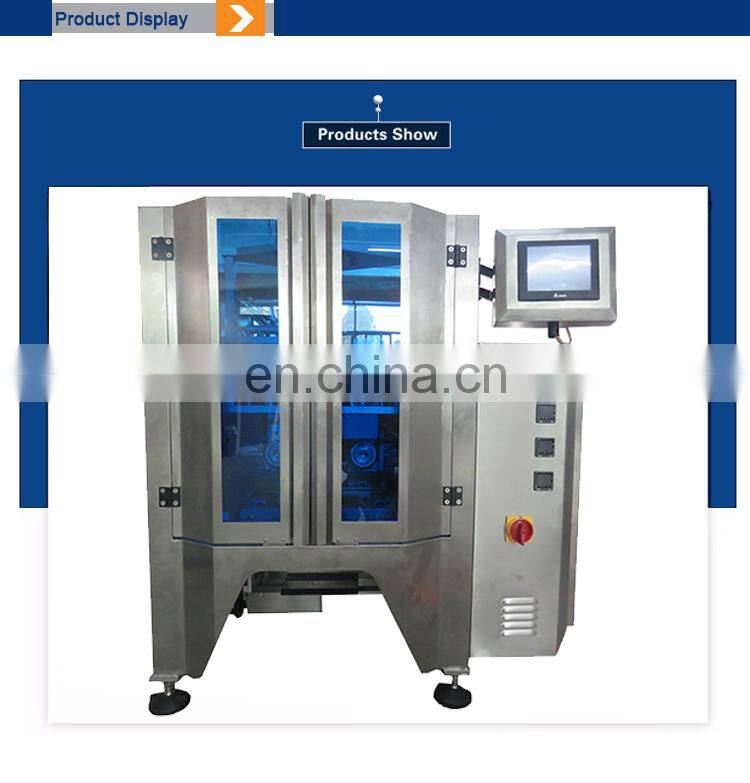

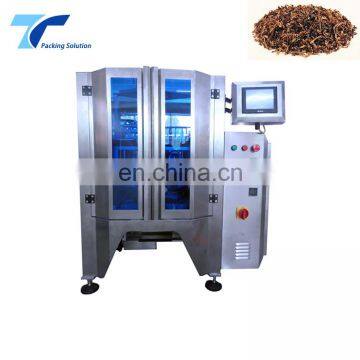

1.TOPY VP420/500/620/800 Middle Speed Vertical packaging Machine
Application:
Suitable to pack coffee bean, seed, sugar, salt, spice, potato chips, puffed food, jelly, pet food, snacks, gummy, etc.
- PLC controller with touch screen interface

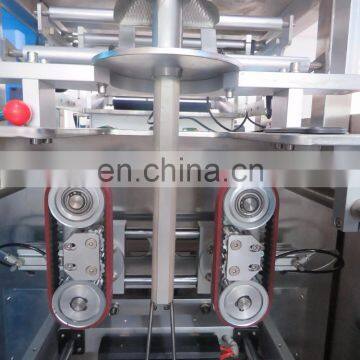

- Servo-driven end seal jaws
- Servo-driven film transport
- Hot printer and film feeding system synchronous
- Quickly changing one-piece bag former

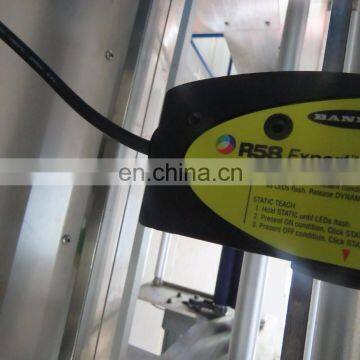

- Eye mark sensor for film tracking
- Stainless steel frame
Optional device:
Filling nitrogen device, gusseted device, punching jaws, chain bag device, PE film device, venting device
Technical advantages:
Low cost high gain, high speed and efficiency.
MITSUBISHI PLC control system, large touch screen, convenient to operate
Film drawing down system and horizontal sealing controlled by servo motor minimize the loss with complete automatic
warn protection function
The feeding, measuring, filling, sealing, date printing, charging (exhausting), counting and food product delivery are all
finished when it equips with feeding and measuring equipment.
Specifications
Model |
TOPY-VP500 |
TOPY-VP620 |
TOPY-VP800 |
Bag Size |
(L)100-300mm (W)80-240mm* |
(L)100-380mm* (W)100-300mm |
(L) 50-380mm* (W)110-400mm |
Bag Speed |
15- 60bags/min |
15- 60bags/min |
10-30bags/min |
Film width |
180-500mm |
220-620mm |
340-800mm |
Air consumption |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
Power supply |
3.0kw, 220V 50/60HZ |
4.0kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
Packed Dimensions |
(L)1550*(W)1160*(H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500*(H)2050mm |
Shisha Tobacco Packaging Machine
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For
premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid,
flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on
is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our
engineers are available to clients’ factory and technical training.
