Oil Presser

FOB Price

US$ 3,600 - 7,550 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LEWIN	Place of Origin	Henan, China
Type	Cold & Hot Pressing Machine	Certification	ISO CE
Weight	1800kg
Dimension(LWH)	2.551.82.7m	Voltage	380V
Condition	New	Automatic Grade	Automatic

Product Description

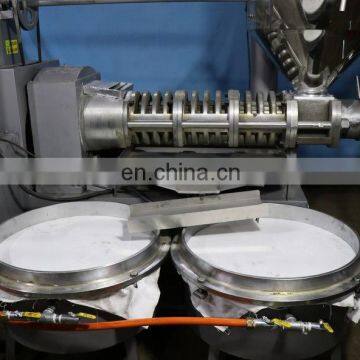

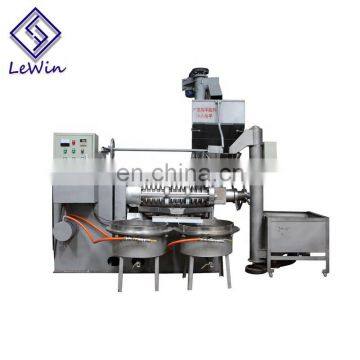

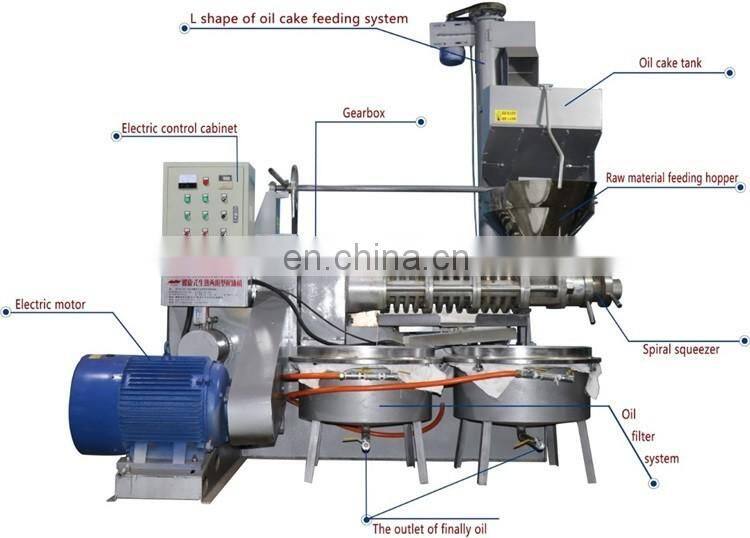

Oil presser

Brief Introduction:

1. The Fully Automatic Spiral Oil Press Machine is a new research improvement product.

2. The machine can be squeezed more, saving time, effort and space. It is easy to operate so that one person can operate it.

3. It can set the heating temperature, directly filter while pressing and has high oil yield and pure oil.

4. This machine can work continuously for 24 hours. The service life of this machine is ten years or longer.

5. The L shape of oil cake feeding system can directly press the oil cake twice.

6. The diameter of the spiral squeezer is longer than other similar product.

We keep the right to update the technology, please contact us for the latest information.

Model	6YL-120	6YL-130	6YL-120-3(188)	6YL-150	6YL-160	6YL-180
Capacity (kg/h)	120-160	180-300	160-280	220-450	300-600	400-750
Power(Kw)	15	22	18.5	30	30	37
Vacuum Power(Kw)	1.1	1.1	1.1	2.2	2.2	2.2
Voltage	380V	380V	380V	380V	380V	380V
Weight(kg)	1500	1600	1650	1800	1900	1980
Squeezer speed	100-130	100-130	100-130	100-130	100-130	100-130
Dimension (mm)	200016002700	215016002700	260016002700	255018002700	265019002700	270020002700
Package size (mm)	215017502850	230017502850	275017502850	270019502850	280020502850	285021502850

This spiral oil press machine is used to both cold press and hot press many materials. It can be used to press various kinds of oil corps, like rapeseed, cottonseed, soybean, peanut, sesame, olive, sunflower seeds, walnuts, almond, coconut, tea seed, etc.

The following picture show the referenced oil yield( Any other special materials, we can test and take video for your reference):

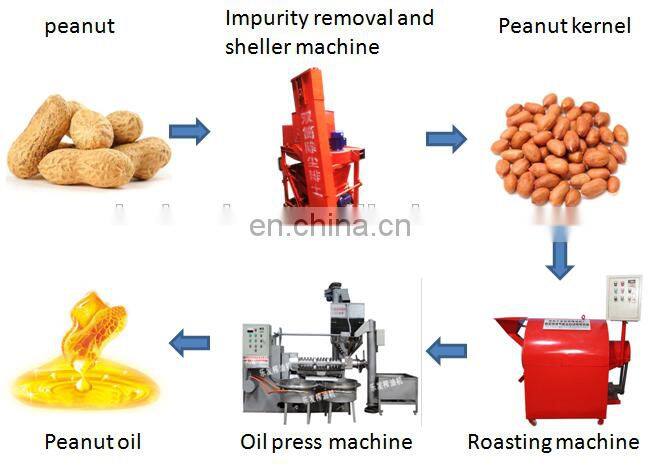

Workflow:

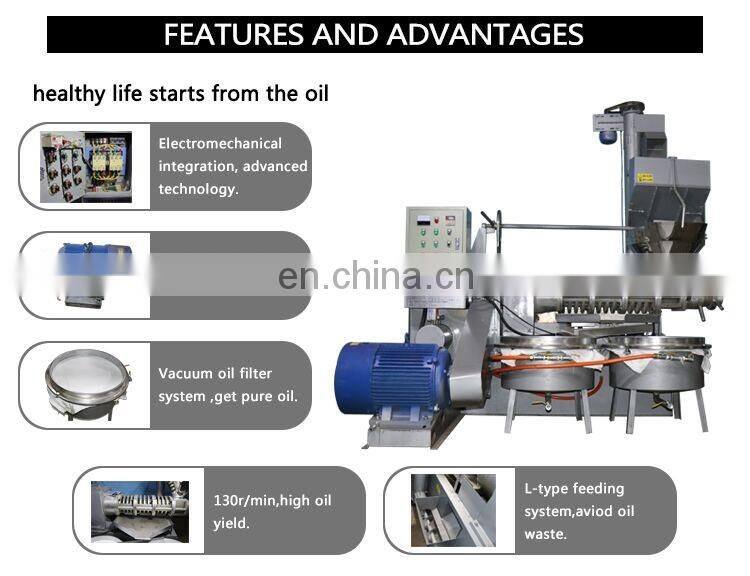

Our Advantages

Stable performance

The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.

Oil pure and fragrant

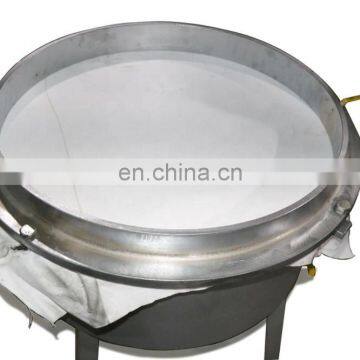

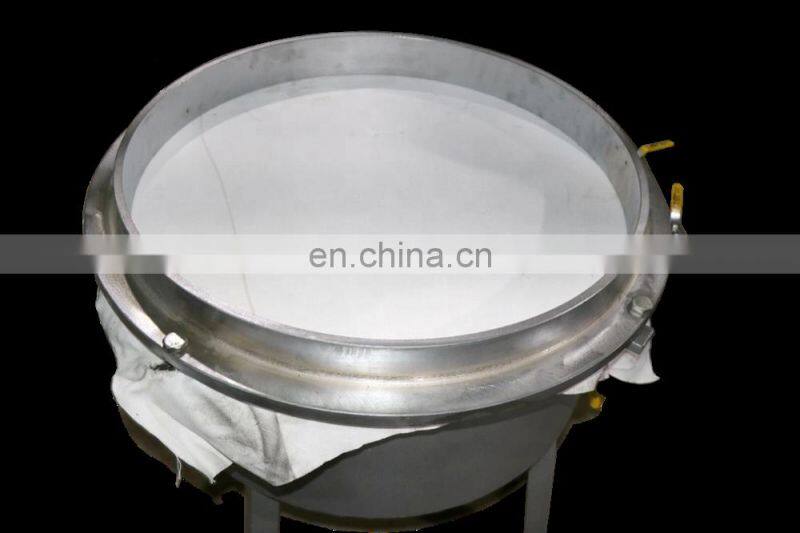

The oil filter is dense that the oil can be filtered clean.

High oil yield

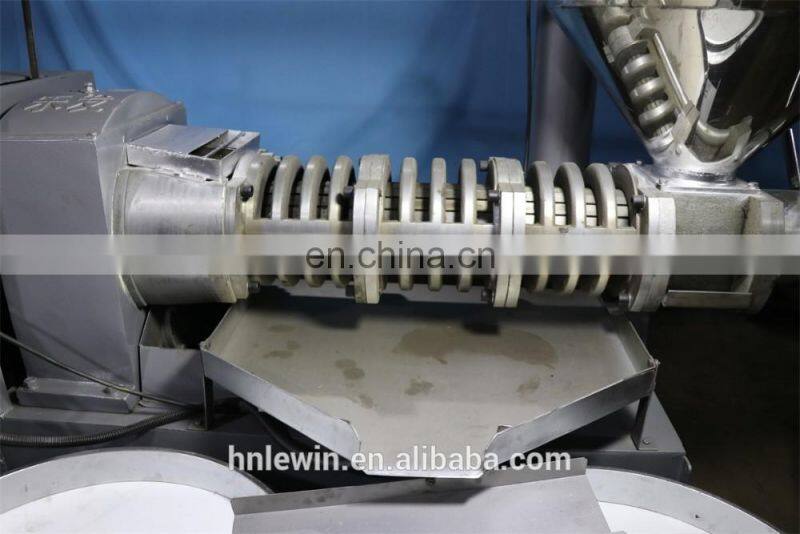

The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean.

Saving time and effort

The L shape of oil cake feeding system can directly press the oil cake twice.

Automatic temperature

The automatical temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.

Our Service

Pre-service:
1. We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
2. We accept the customized model.

3. You can visit our factory.

After-service:
All products are guaranteed to keep in good repaired for one year. During the one year, the seller will provide free maintenance service. (Expect for failures and damage caused by human and force majeure.)

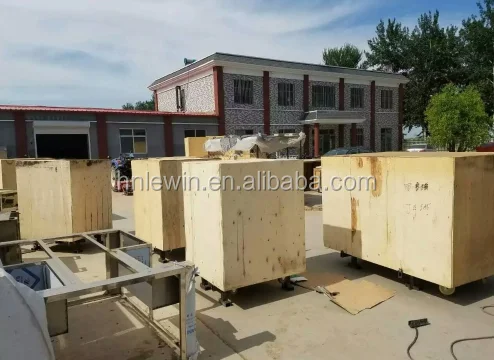

Packing & Delivery

The first protection

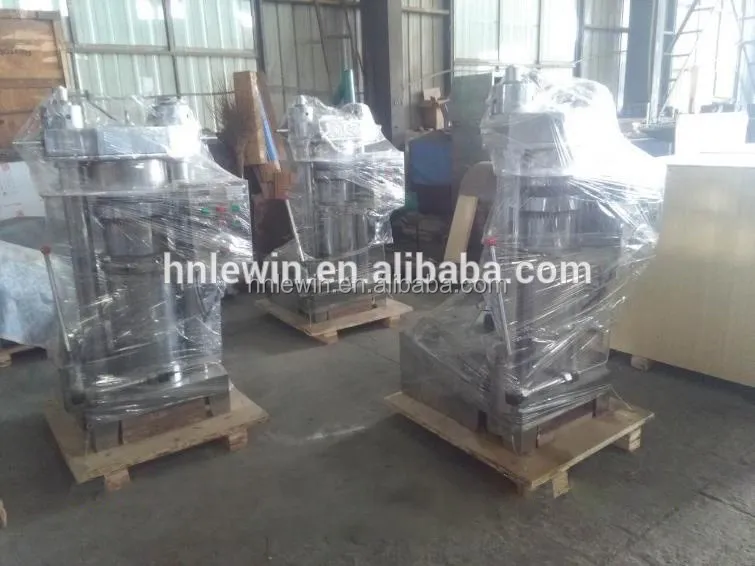

Multiple protection, before the oil press machine be put into the wooden cases, it will be use plastic film cover.

The second protection

Then the oil press machinery will be put into the wooden cases carefully to ensure every oil presser machine is safety and perfect!

The last delivery step

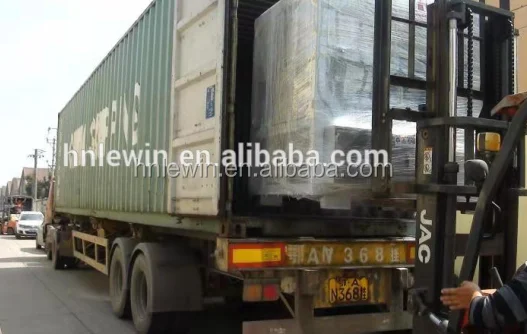

After the machine be put into cases, our professional delivery team will send the machine to the port safetly!

Company Profile

FAQ

Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock.

Q:Do you offer customized service?
A: Yes, we could offer customized service.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Other Products

Home use oil press machine

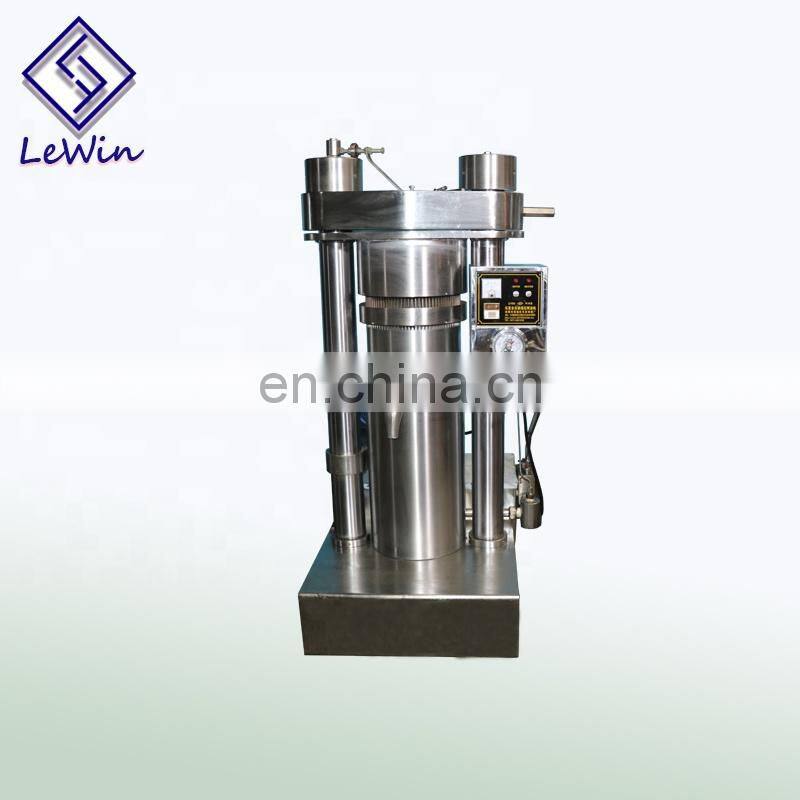

Hydraulic oil press machine
