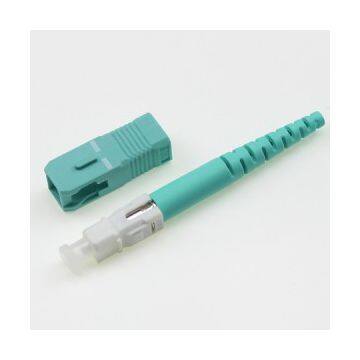

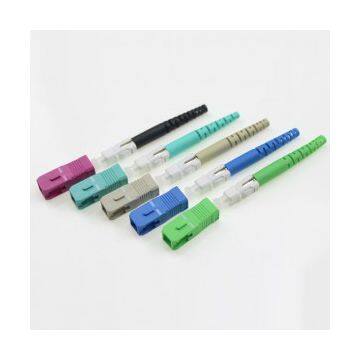

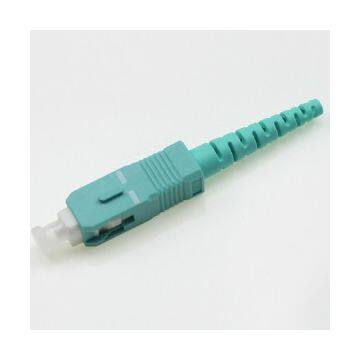

Help CenterSC UPC MM SX OM3 2.0mm Connector
Related Products
SC UPC MM OM3 SX Connector2.0 3.0mm
optical fiber connectors are used to join optical fibers where a connect/disconnect capability is required. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are often assembled onto optical fiber in a supplier’s manufacturing facility. However, the assembly and polishing operations involved can be performed in the field, for example, to terminate long runs at a patch panel
Connector Type |
SC |
Polish Type |
UPC |
Fiber mode |
Multi Mode OM3 |
Cable OD |
2.0 3.0mm |
Color |
Aqua |
Specification
Features
Superior qualified standard polishing;
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
φ0.9mm, φ2.0mm, φ3.0mm cable optional
Simplex and duplex connector available;
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications are welcomed.
Application
CATV
Active device termination
Telecommunication networks
Metro
Local Area Networks (LANS)
Data processing networks
Test equipment
Premise installation
Wide Area Networks(WANS)
