Good Price Cold Screw Oil Extarction Machine for Palm Oil

Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-1
Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-2

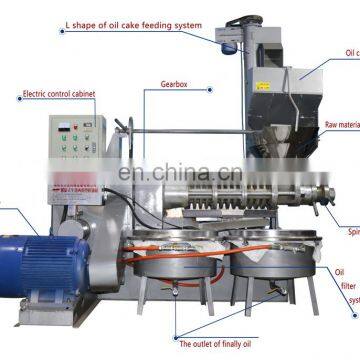

Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-3

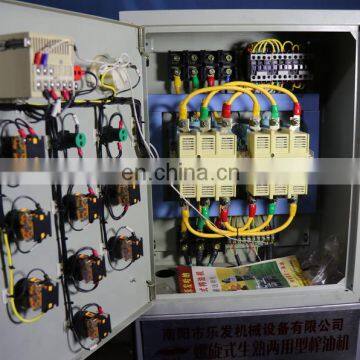

Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-4

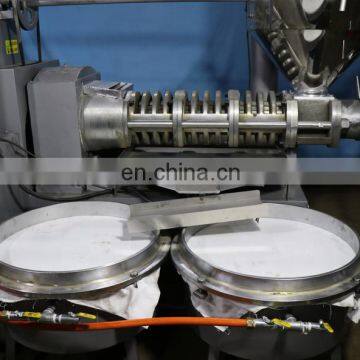

Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-5

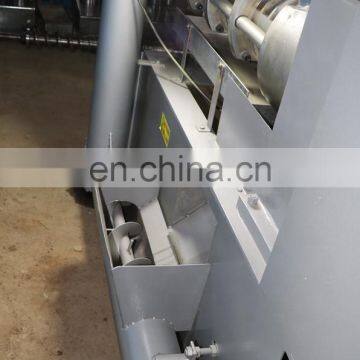

Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-6
Good Price Cold Screw Oil Extarction Machine for Palm Oil photo-7
US$ 5,750 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lewin
Place of Origin:
Henan, China
Type:
Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Guangzhou Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Lewin
Place of Origin Henan, China
Type Cold & Hot Pressing Machine
Certification CE ISO
Weight 1980kg
Dimension(L*W*H) 2700*2000*2700(mm)
Voltage 380V
Condition New
Automatic Grade Automatic

Automatic new cheap convenient sesame rapeseed screw oil press machine

Product Description

 Introduction of palm screw oil extraction machine

 1.The 6YL series screw presser is designed to meet the requirements of customers for oil production.
2.The machine is reasonable in design, advanced in performance and beautiful in shape.
3.It does not need to be steamed and fried. It saves time, labor and space. Good price cold screw oil extarction machine for palm oil

Characters:

1.Realize the second class pressing to avoid  oil waste.

2.Two feeding systems work together to make the working more efficiency.

3.Vacuum oil filter system, get pure oil.

4.Keeping work 24h to reduce labor and improve work efficency

Good price cold screw oil extarction machine for palm oil

Operating priciple:

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.



Detailed Images

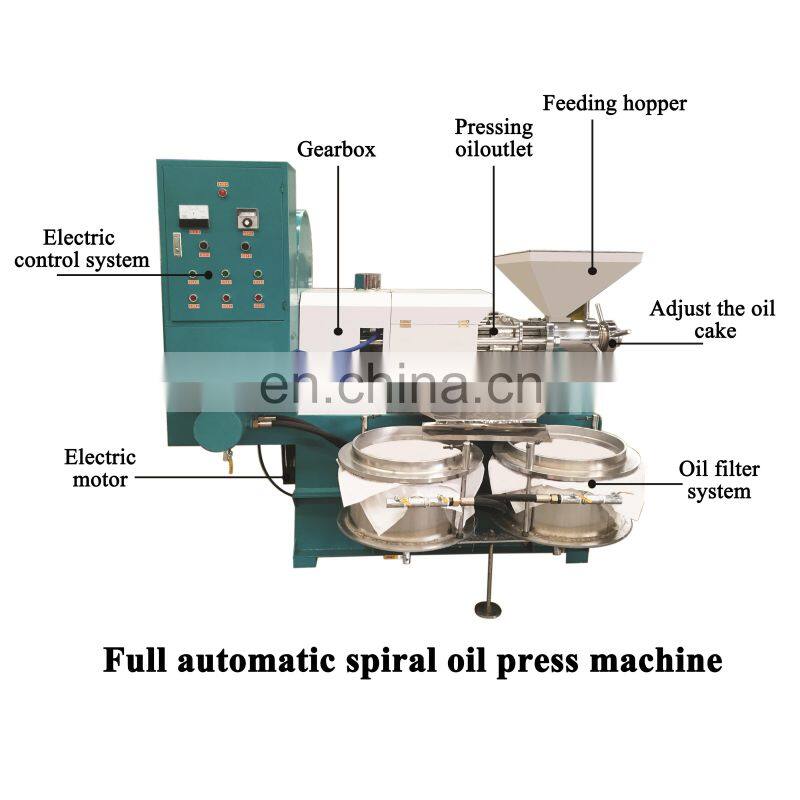

Parts of high quality palm oil presser:

Good price cold screw oil extarction machine for palm oil

Technical parameters of palm oil presser:

Model 6YL-120 6YL-120-3(188) 6YL-130 6YL-160 6YL-180
Weight 1500kg 1650kg 1600kg 1900kg 1980kg

vacuum Power

1.1kw 1.1kw 1.1kw 2.2kw 2.2kw
3phase 15kw 18.5kw 22kw 30kw 37kw
Squeezer 100-130 100-130 100-130 100-130 100-130
Capacity (Kg/h) 120-160 160-280 180-300 300-600 400-750
Dimension(mm)

2000*1600*

2700

2600*1600*
2700
2150*1600*
2700
2650*1900*
2700
2700*2000*
2700

 Seeds application  of screw oil making machine

1.It is suitable for direct processing of rape, peanut, sunflower seed, sesame,

palm,almond,perilla,olive and other oil crops.

2.If you want to process other special raw material, please cantact us to ensure.

Packaging & Shipping

We use strong wooden case to ensure the safety of your goods in transit.

Good price cold screw oil extarction machine for palm oil

Our Services

 Provide quality serviceGood price cold screw oil extarction machine for palm oil

1.Professional engineer

   Our professional engineer will test the machine in each step.

2.Specialist manufacfacuture

   Every machine carefully adjusted before shipment.

3.After-service

   The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Company Information

We have our factory, so we can provide product with the best price.

Good price cold screw oil extarction machine for palm oil

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and

Export. Our main products are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:Do you offer customized service?

A: Yes, we could offer customized service.

Q: What is your terms of payment ?

A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
