Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine

Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-1
Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-2
Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-3
Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-4
Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-5
Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-6
Automatic Multifunctional Coconut Oil Processing Machine Olive Oil Cold Press Machine photo-7
US$ 6,300 - 6,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lewin
Place of Origin:
Henan, China
Type:
Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

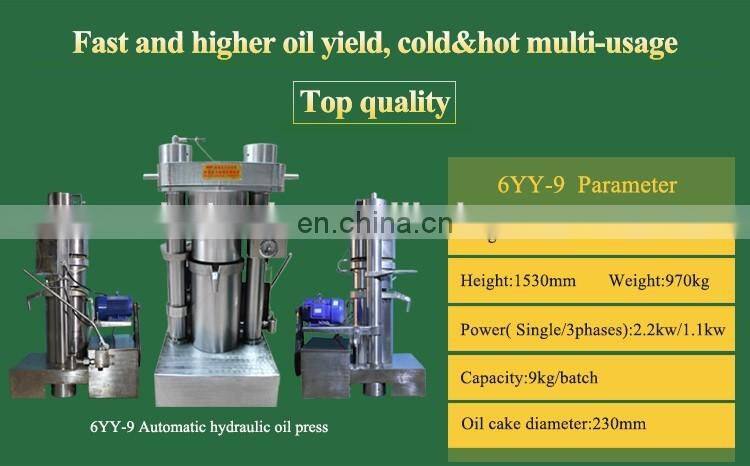

Brand Name Lewin
Place of Origin Henan, China
Type Cold & Hot Pressing Machine
Certification ISO CE
Weight 970kg
Dimension(L*W*H) 680*900*1530(mm)
Voltage 380V
Condition New
Automatic Grade Automatic
Product Description

The 6YY series automatic hydraulic oil press machine has many advantages: easy to operate, high oil press rate, rare to replace wearing parts and can be eaten directly. This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.

Detailed Images

The following is the specific introduction:

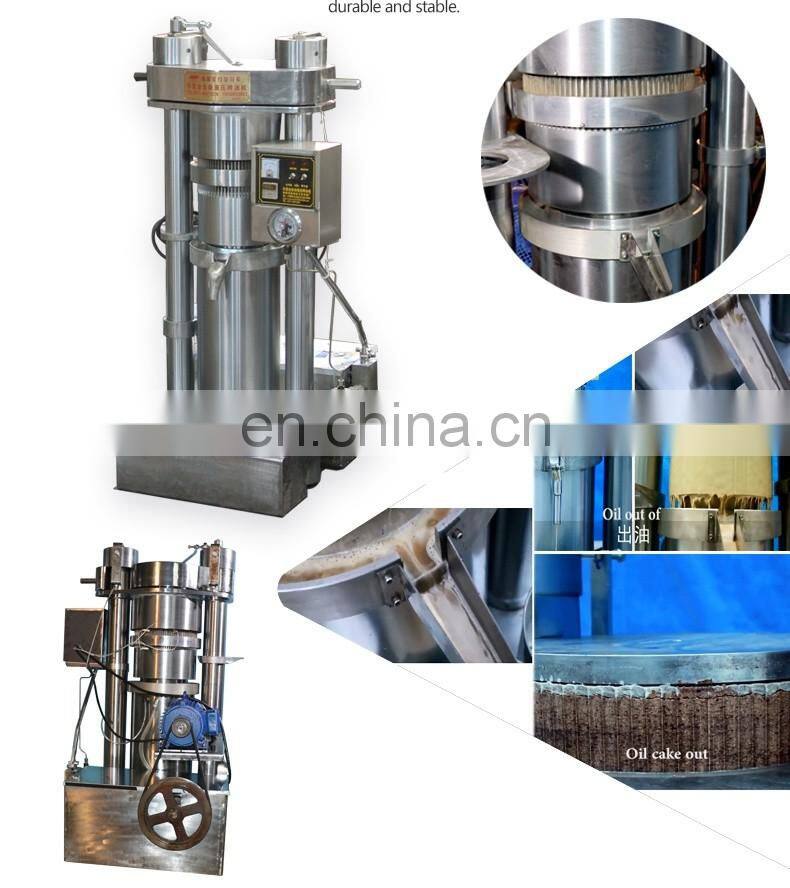

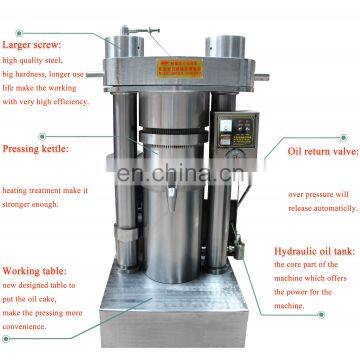

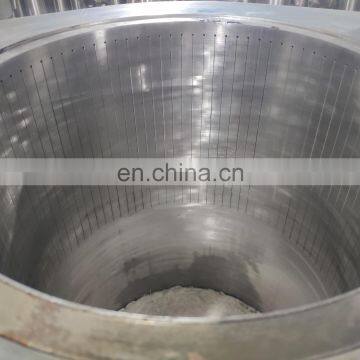

Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

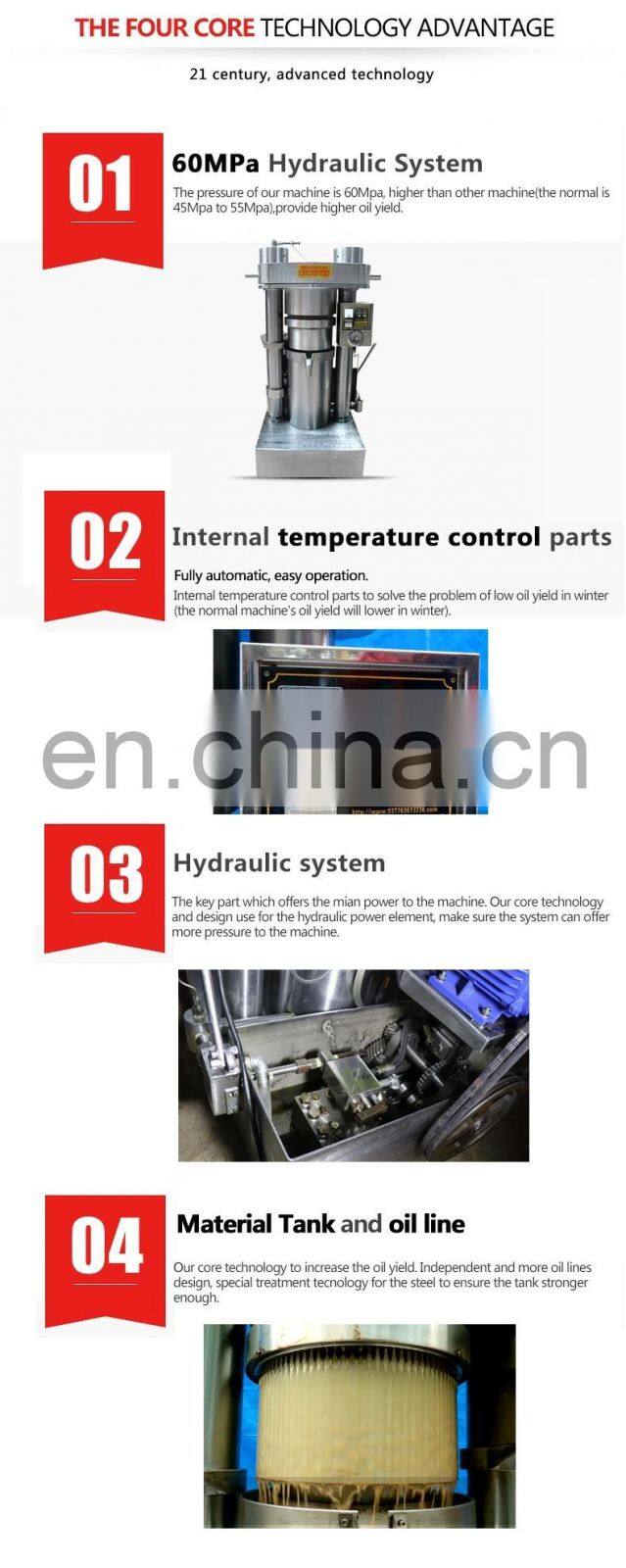

Main Features
1. The pressure of our machine is higher than others, provide higher oil yield.

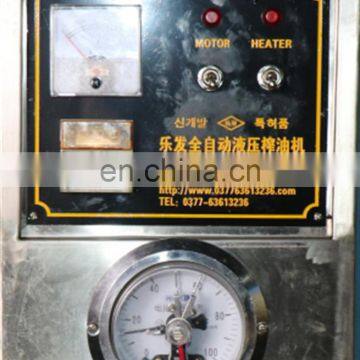

2. Internal temperature control parts to solve the problem of low oil yield in winter.

3. The capacity is the quantity of raw material that machine could process in one time.

Raw material

This automatic oil making machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, cocoa bean, linseed, avocado and other oil crops.

If you need to process other raw materials, please cantact me to ensure.

Other technical parameter

Model
Capacity
(kg/batch)
Working
pressure
Weight
(kg)
Voltage

Power
(3phase/
single)
Package
size(mm)
6YY-8
8.5
60Mpa
920
380V
1.1/2.2kw
780*1000*
1580
6YY-11
11
60Mpa
1060
380V
1.1/2.2kw
780*1040*
1710
6YY-13
13.5
60Mpa
1230
380V
2.2/4kw
820*1081*
1750
6YY-16
16
60Mpa
1600
380V
2.2/4.8kw
940*1140*
1810
6YY-20
20
60Mpa
1750
380V
2.2/4.8kw
940*1160*
1800
6YY-23
23
60Mpa
2300
380V
3.0/5.0kw
1040*1240*
1920

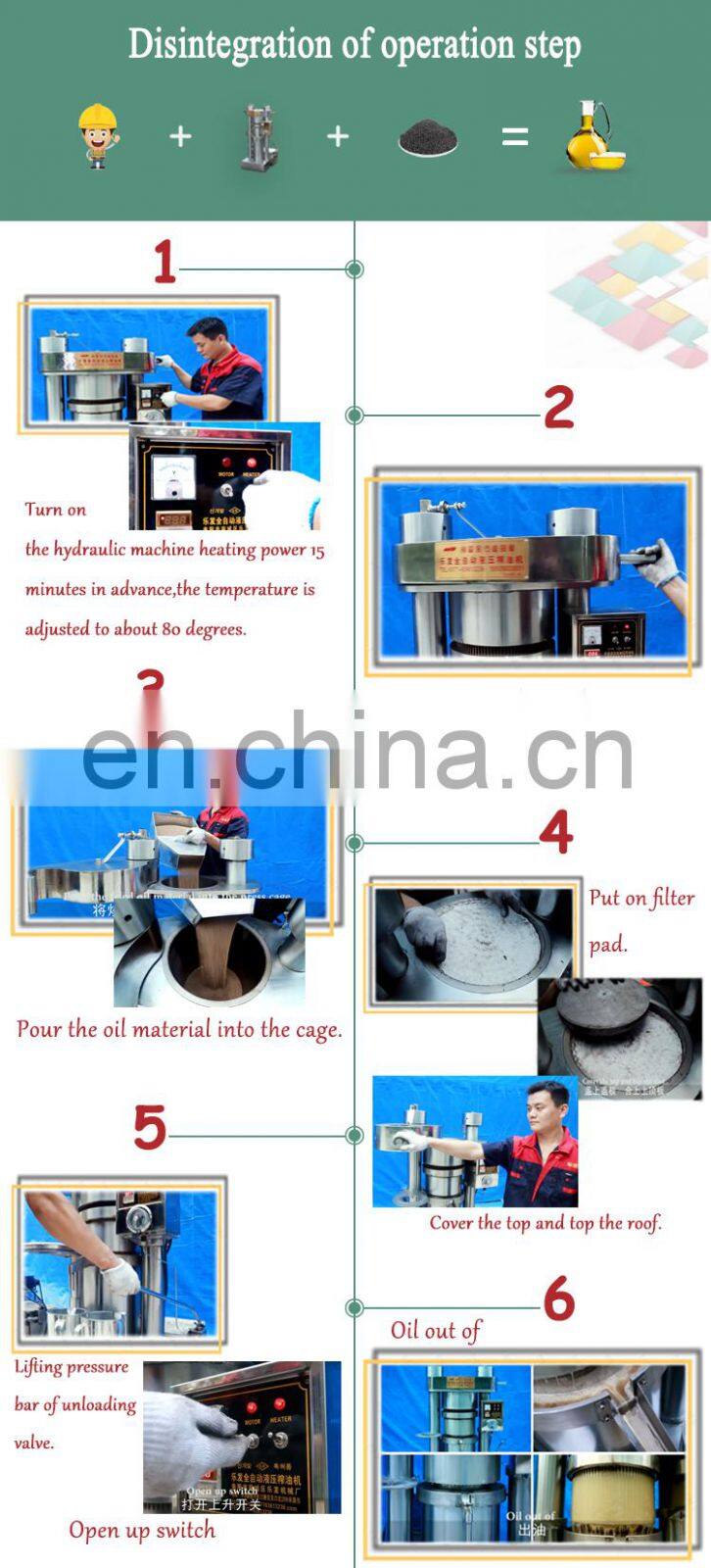

Instructions
Packing & Delivery

We have professional packing and transportation team to serve you.

Our Company
Our Service

After-service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
