Cold Press Hydraulic Walnut Oil Press Machine

Cold Press Hydraulic Walnut Oil Press Machine photo-1
Cold Press Hydraulic Walnut Oil Press Machine photo-2
Cold Press Hydraulic Walnut Oil Press Machine photo-3
Cold Press Hydraulic Walnut Oil Press Machine photo-4
Cold Press Hydraulic Walnut Oil Press Machine photo-5
Cold Press Hydraulic Walnut Oil Press Machine photo-6
Cold Press Hydraulic Walnut Oil Press Machine photo-7
US$ 2,500 - 7,589 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LEWIN
Place of Origin:
Henan, China
Type:
Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name LEWIN
Place of Origin Henan, China
Type Cold & Hot Pressing Machine
Certification ISO CE
Weight 1600KG
Dimension(L*W*H) 860*1060*1660mm
Voltage 60Mpa
Condition New
Automatic Grade Automatic
Product Description

Product Details:

The hydraulic oil press machine which can be used for cold preessing or hot pressing is the most advanced equipment and takes up less area. Its material mainly electroplate. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system. It has high pressure, high yield oil and easy to operate. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 4 to 15 minutes. The oil is pure and fragrant.

This machine is suitable for sunflower, soybean, peanut, walnut, cottoned, castor, palm, pine seed (better to get rid of the shell), cocoa bean, linseed, avocado and other oil crops.

parameters

Model
YY-4
YY-8
YY-9
YY-11
YY-13
YY-16
YY-20
YY-23
Capacity
(kg/batch)
4
8
9
11
13
16
20
23
Working pressure
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
Power
(single)
2.2KW
2.2KW
2.2KW
2.2KW
4KW
4.8KW
4.8KW
5.0KW
Power
(3 phases)
1.1KW
1.1KW
1.1KW
1.1KW
2.2KW
2.2KW
2.2KW
3.0KW
Weight
(kg)
600
920
970
1060
1230
1600
1750
2300
Dimension
(mm)
680*900*1430
680*900*1430
680*900*1530
700*960*1560
740*1000*1600
860*1060*1660
860*1080*1650
960*1160*1760
Pckage
(mm)
780*1000*1580
780*1000*1580
780*1000*1680
780*1040*1710
820*1081*1750
940*1140*1810
940*1160*1800
1040*1240*1920

You can choose the model you like best.

Detailed Images
The machine mainly includes three parts:
A. Main engine B. Electrical system C. Hydraulic system
Main engine includes nut, cover, squeezer kettle, oil drip pan, pallet and so on.
Electrical engine mainly includes electric control panel and heating system.

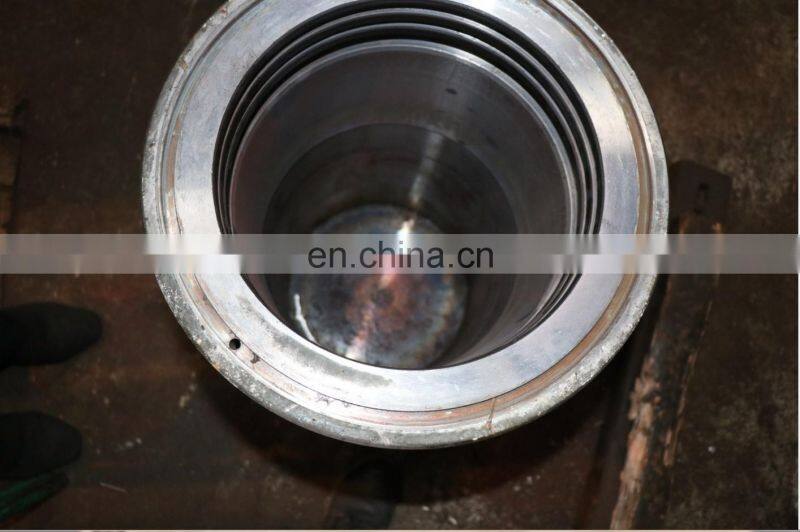

Squeeaer kettel

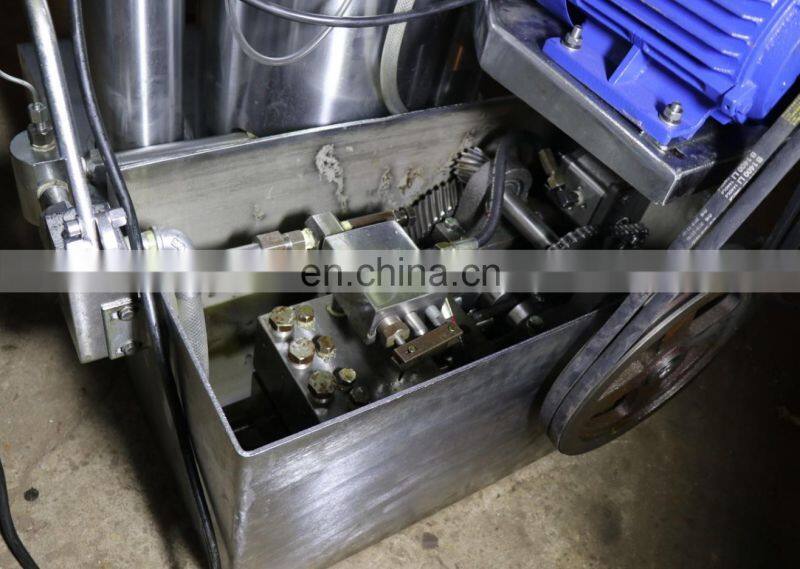

Hydraulic system


Electic control panel


Our Service

Pre-Sales Service

1. We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
2. We accept the customized model.
3.You can visit the factory.

After-Sales Service

1.All products are guaranteed to keep in good repaired for one year. During the one year, the seller will provide free maintenance service. (Expect for failures and damage caused by human and force majeure.)
2. After receiving the inquiry for repairing the engineer of sell party will solve by phone and email. If necessary, the engineer will solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.

Packing & Delivery

1.Our Hydraulic Oil Press Machine will be packaged by standard export wooden case with film to ensure the machine intact.

2.Customized.

Certifications
Our Company
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
Q:Do you offer customized service?
A: Yes, we could offer customized service.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
