Practical Coconut Oil Extract Machine

Practical Coconut Oil Extract Machine photo-1
Practical Coconut Oil Extract Machine photo-2

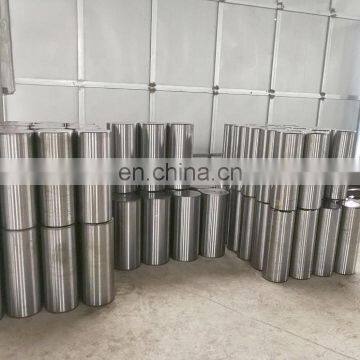

Practical Coconut Oil Extract Machine photo-3
Practical Coconut Oil Extract Machine photo-4
Practical Coconut Oil Extract Machine photo-5

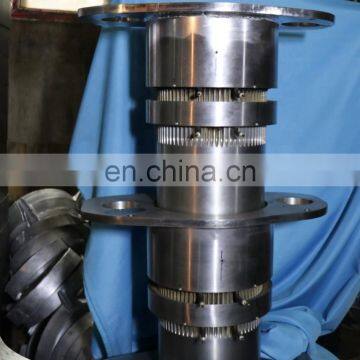

Practical Coconut Oil Extract Machine photo-6

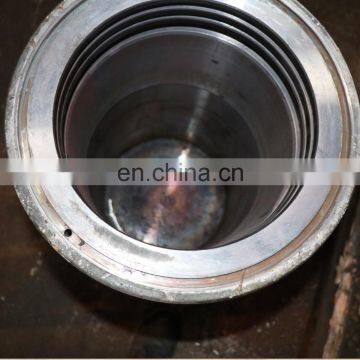

Practical Coconut Oil Extract Machine photo-7
US$ 3,887 - 3,943 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LEWIN
Place of Origin:
Henan, China
Type:
Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name LEWIN
Place of Origin Henan, China
Type Cold & Hot Pressing Machine
Certification ISO CE
Weight 1230kg
Dimension(L*W*H) 740*1000*1600mm
Voltage 60Mpa
Condition New
Automatic Grade Automatic
Product Description
Product Instruction:

The hydraulic oil press machine is the most advanced equipment and takes up less area. Its material mainly electroplate. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system. It has high pressure, high yield oil and easy to operate. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 4 to 15 minutes. The oil is pure and fragrant.

Model
6YY-13
Capacity
(kg/batch)
13
Power
(single)
4.0KW
Power
(3 phases)
2.2KW
Package
Wooden case package with film
Advantage
High pressure and high oil rate.
Detailed Images

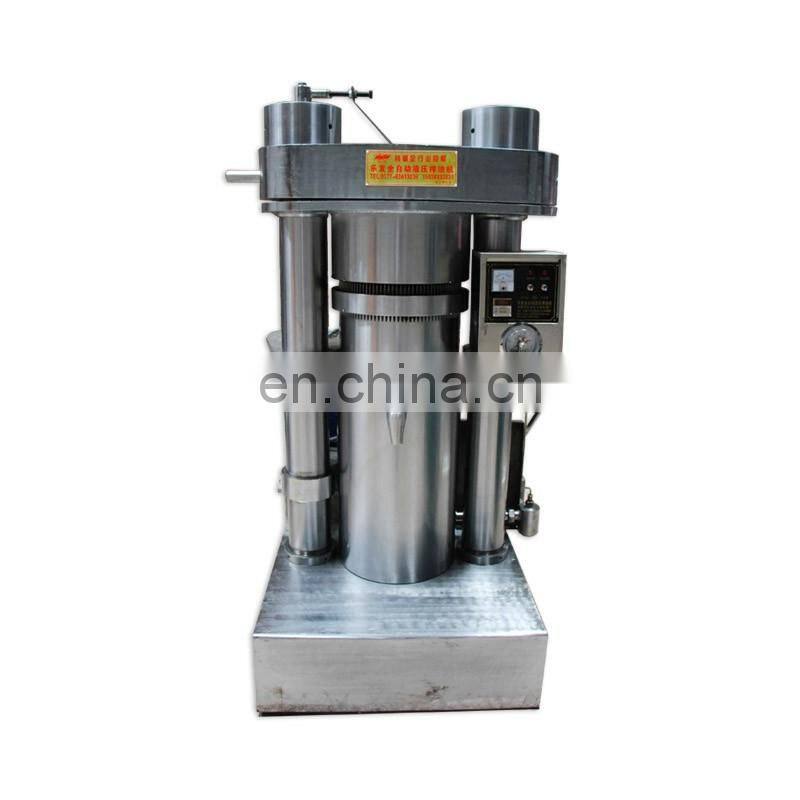

The structure of the hydraulic oil press machine

This machine includes cover, electric control panel, pressure gauge, oil pump, hydraulic system, pallet, squeezer kettel and so on.

Oil out

Electric control panel

Hydraulic system

Advantage:

1. This machine takes up less area. It is economic and environmental protection , stable and durable performance. In           addition, It is high pressure, high yield oil, oily pure, and no need to filter.
2. It uses automatic control system, temperature control system and hydraulic pressure control system. It is easy to operate so that it can be operated by one person, saving time and effort.
3. This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.

The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.

Model
YY-4
YY-8
YY-9
YY-11
YY-13
YY-16
YY-20
YY-23
Capacity
(kg/batch)
4
8
9
11
13
16
20
23
Working pressure
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
60Mpa
Power
(single)
2.2KW
2.2KW
2.2KW
2.2KW
4KW
4.8KW
4.8KW
5.0KW
Power
(3 phases)
1.1KW
1.1KW
1.1KW
1.1KW
2.2KW
2.2KW
2.2KW
3.0KW
Weight
(kg)
600
920
970
1060
1230
1600
1750
2300
Dimension
(mm)
680*900*1430
680*900*1430
680*900*1530
700*960*1560
740*1000*1600
860*1060*1660
860*1080*1650
960*1160*1760
Package size(mm)
780*1000*1580
780*1000*1580
780*1000*1680
780*1040*1710
820*1081*1750
940*1140*1810
940*1160*1800
1040*1240*1920

You can choose the model according to your needs.

Packing & Delivery
Our products will be packaged by standard export wooden case with film to ensure the machine intact.
Certifications
Our Service

Pre-Sales Service

1. We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
2. We accept the customized model.

After-Sales Service

After receiving the inquiry for repairing the engineer of sell party will solve by phone and email. If necessary, the engineer will solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.

Our Company
FAQ

Q: Are you a manufacturer ?
A: Yes, we are.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock.
Q:Do you offer customized service?
A: Yes, we could offer customized service.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
