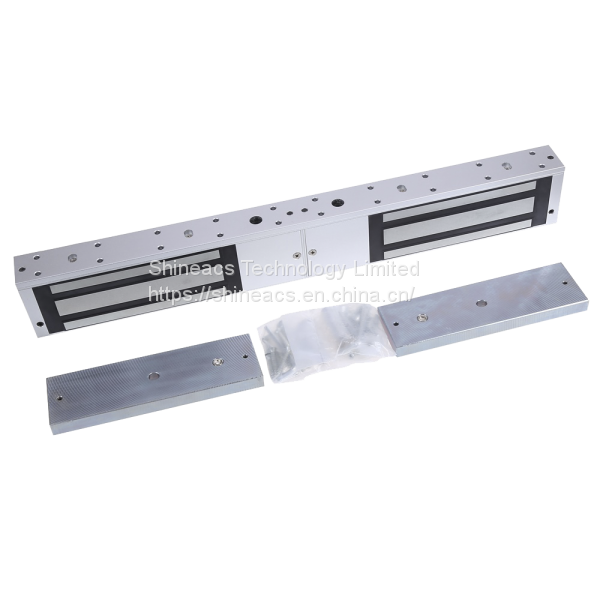

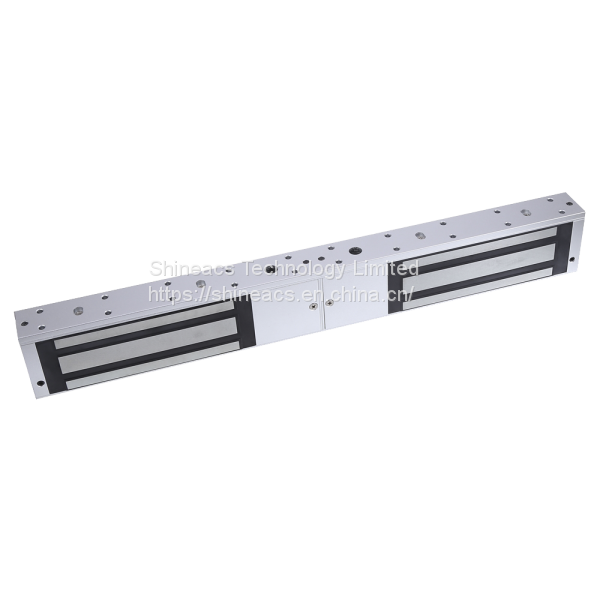

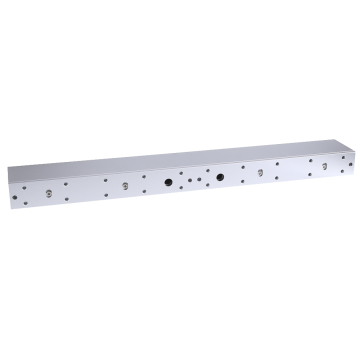

Door magnetic locks for gates

Security Type:

Power off, unlock

Lock body Size:

530X71.5X40（mm）

Armature Plate Size:

185X60X13（mm)

Max Pulling Force:

500KG*2

Input Voltage:

DC12V / DC24V

Operating Current:

12V / 500mA, 24V / 250mA*2

Door Type:

Wooden doors, glass doors, metal doors, etc.

Surface Temperature:

less than ambient temperature + 20 ℃

Applicable Temperature:

-10 ~ +55 ℃

Applicable Humidity:

0 ~ 90% relative humidity

Shell Treatment:

environmentally anodized oxidation treatment

Lock Body Treatment:

environmentally blue zinc plating treatment

Armature Plate Treatment:

environmentally blue zinc plating treatment

Product Net Weight:

8.4KG/unit

Product Gross Weight:

9.26KG/unit

Package Size:

555*77*83(mm)

Carton Size:

580X175X180(mm)

Qty Each Carton:

4 units

Carton Weight:

37KG
