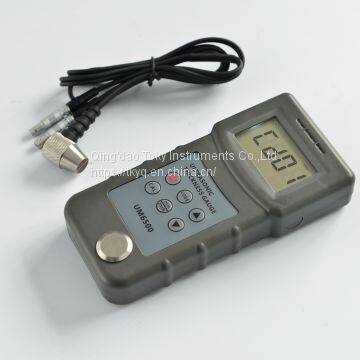

UM6500 Ultrasonic Thickness Gauge

UM6500 Ultrasonic Thickness Gauge thumbnail-1
UM6500 Ultrasonic Thickness Gauge thumbnail-2
UM6500 Ultrasonic Thickness Gauge thumbnail-3
UM6500 Ultrasonic Thickness Gauge photo-1
UM6500 Ultrasonic Thickness Gauge photo-2
UM6500 Ultrasonic Thickness Gauge photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TK
Place of Origin:
China
Model Number:
UM6500
Contact Supplier Request Quote Chat Now
Qing'dao Toky Instruments Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
qing'dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TK
Place of Origin China
Model Number UM6500

UM6800 Ultrasonic Thickness Gauge



Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.


Features：
※ High resolution measurement
※ Probe automatic zero calibration for system error correction
※ Sound-Velocity-Calibration function
※ According to the known thickness measurement Sound-Velocity.
※ Status indicator of the coupling and low battery.
※ Auto sleep and auto power off function to conserve battery life.
※ Humanized shape design, compact and portable, Can be used in harsh environment.


Specifications：
Display：
        Digits LCD with backlight
Operating principle:
        ULTROSONIC
Measuring range (metric/imperial):
        1.0-280mm,0.05-11.0inch (in Steel).
Sound Velocity Range:
        500~9000 m/s.
Resolution： 0.01mm;
Accuracy：
        ±（0.05%H+0.1）mm, depends on materials and conditions
Units: Metric/Imperial unit selectable.
Power supply:
        4x1.5 AAA size (UM-4) battery 1
Operating conditions:
        0-+45℃(32℉-104℉)
        ≤90%RH
Dimensions:
        140mm×60mm×22mm
Gloss Weight :1KG

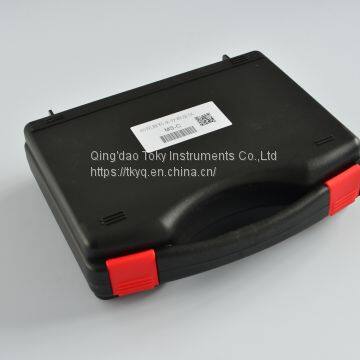

Standard Delivery: Main Unit,8mm Probe, Coupling Oil, User Manual ,Carrying Case


Product Tags: metal tube thickness meter , thickness meter , PVC thickness gauge
