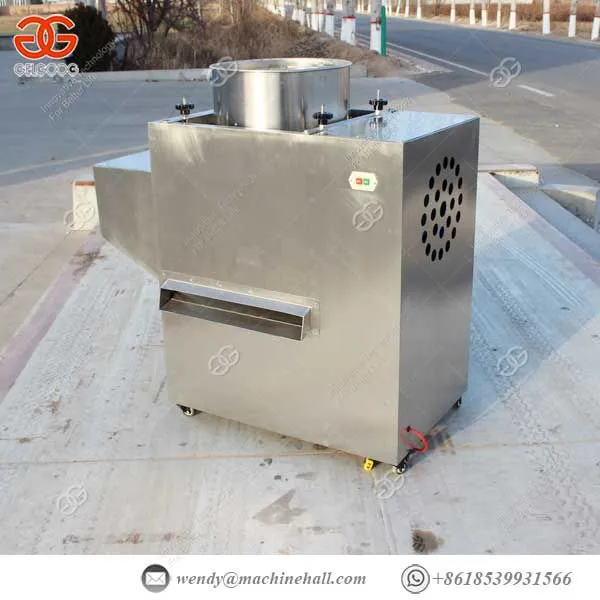

Industrial Garlic Peeler Electric Automatic Small

Wooden box packaging or according to buyer requirements

product advantages

1. Large output and high production efficiency

2, garlic damage rate is low; 1%

3, garlic splitting rate is high; 90%

4, can adjust the gap between the plate and the cone to achieve the best splitting effect

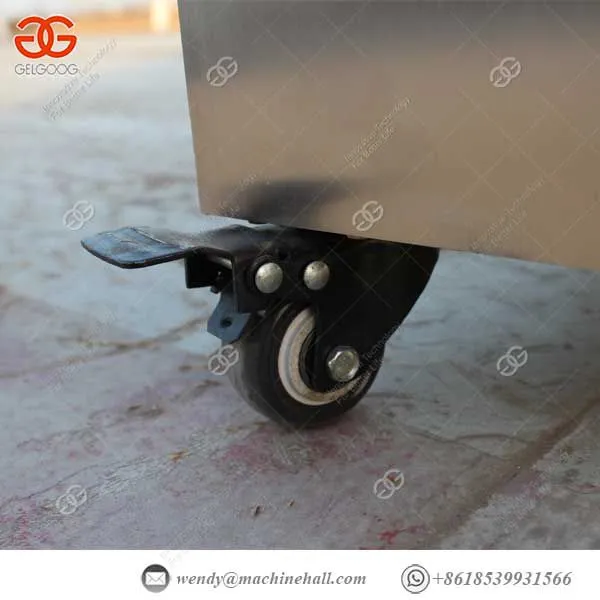

5, compact body design, stable performance, easy to move, easy to use and maintain

  Machine parameters

Power: 1.8KW

Voltage: 220V/380V

Production: 1000KG

Size: 90× 60× 125cm

Product parameters

Screening machine:

  Machine parameters

Power: 1.5KW

Voltage: 220V/380V

Production: 1000KG

Size: 250 & times; 90 & times; 70cm

Garlic cloves can be divided into three levels, vibrating screen type, will not cause secondary damage to garlic, the size of the screen can be adjusted at will.

Product Usage

   Garlic splitting machine (maximum output; 1000kg / h), based on the experience of its own deep processing of garlic, has been successfully developed for nearly ten years. In addition to the garlic broken machine, we also have garlic peeling machine, garlic slicer, garlic machine, garlic packaging machine and so on. Please contact us if you need it. Tel: 0086 18539931566

During the working process, the splitter machine drives the pulley to obtain power, and drives the flat plate shaft rod with the silicone plate to make the flat plate rotate, corresponding to the cone plate with the same silicone on the upper part of the flat plate, so that the center of the flat plate The height difference is formed with the edge, and the garlic is split by centrifugation. And the inside of the machine is equipped with a fan to separate the garlic and garlic skin and garlic cloves produced during the processing, which is convenient for recycling and further peeling of garlic cloves.

    It is made of high-elastic rubber as the roller shaft of the splitter. It is manufactured by the principle of speed difference ,. It is equipped with high-performance gear motor and sprocket drive system. It can adjust the roller gap freely according to the size of the garlic. The splitting rate is over 95%, and it is equipped with a fan system to remove garlic impurities.
