CFA AUGER 450MM Dia With Auger Start  for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE

CFA AUGER 450MM Dia With Auger Start  for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE photo-1
CFA AUGER 450MM Dia With Auger Start  for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE photo-2
CFA AUGER 450MM Dia With Auger Start  for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE photo-3
CFA AUGER 450MM Dia With Auger Start  for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE photo-4
CFA AUGER 450MM Dia With Auger Start  for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE photo-5
US$ 1000 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HUACHANG XINGYE
Place of Origin:
China
Model Number:
HC2005
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
20 days
Brand Name HUACHANG XINGYE
Place of Origin China
Model Number HC2005

HD 4" x 6m Dia 450mm Intermediate CFA Auger FOR BAUER BG24 DRILL RIG FOR CONTINUOUS FLIGHT AUGER PILE

HD 5" x 6m Dia 600mm Intermediate CFA Auger

CFA AUGER 600MM dia with auger start  for bauer BG24  DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILE
Continuous flight auger CFA auger 600mm dia used for bauer BG 24 rotary drilling rig for piling foundation work,flight length 14m ,
CFA AUGER START 2M , CFA AUGER HEAD 2M , CFA AUGER BIT 2 M ,CFA PILOT BIT 2M
Continuous flight auger length 2m ,4m, 6m φ600
CFA PILES ARE A TYPE OF DRILLED FOUNDATION IN which the pile is drilled to the final depth in one continuouus process cusing a continouous flight auger
CFA piles - drilled by continuos flight auger system - combine the advantages of the driven piles with the veracity of the bored piles. The drilling method allows to excavate in a wide of soils, dry or water logged, loose or cohesive and also to penetrate through low capacity, soft rock formations such as loamy clays, limestones and sandstone, etc
CFA diameter range from 400/600/800/1000/1200 to 1400 mm Hexagonal joint Continuous Flight Auger rod

CFA diameter range from 400 to 1400 mm

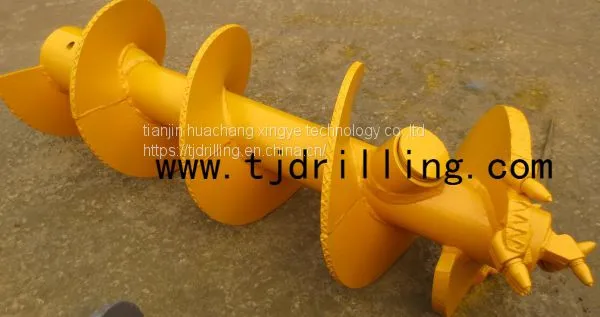

CFA pilot auger can be equipped with double start cutter head for soil or rock, supplied with interchangeable picks or teeth with bottom or side concrete exit by steel plug and recovery chain

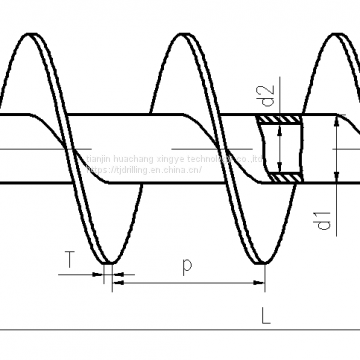

sizeDiameter MMPicth mmFlight thckness  mmLength mm
Φ300

280mm280162-10m
Φ400

380mm300162-10m
Φ500

480mm350162-10m
Φ600

580mm400202-10m
Φ700

680mm400202-10m
Φ800

780mm500202-10m
Φ900

880mm50025
Φ1000

980mm60025


Product Tags: dia 450mm cfa , CFA 450MM AUGER , 450MM CFA PILE , HD 4“ x 6m Dia 450mm CFA
