Indonesia 2 meters aluminium temporary gondola for building maintenance
Email: info@hetoindustry.com
Suspended platforms are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
Hot dip galvanized steel and aluminium ZLP630,ZLP800,ZLP1000, and single working platform.
The welding of the support structure of the platform is made of quality steel profiles and floor construction in aluminum foil with non-slip surface.
The connection of the individual parts of the structure in each unit is made with nuts and bolts.
The platform is equipped with wheels for easy movement around the construction site.
Specification of suspended platform
Item |
ZLP630 |
ZLP800 |
||
Rated load |
630kg |
800kg |
||
Lifting speed |
~9.5m/min |
~8.5m/min |
||
Platform size (length×width×height) |
6000*690*1180mm |
7500*690*1180mm |
||
Suspension mechanism |
Front beam extension |
1.1m-1.5m |
||
Height adjustment |
1.45m-1.75m |
|||
Hoist |
Type |
LTD63 |
LTD80 |
|
Motor |
Type |
Customization |
Customization |
|
Power |
1.5KW |
2.0KW |
||
Voltage |
380V |
380V |
||
Speed |
1400n/min |
1400n/min |
||
Braking torque |
15N·m |
15N·m |
||
Safety lock |
Type |
LS30 |
||
Angle of tilted locking rope |
3°—8° |
|||
Allowable impact force |
30kN |
|||
Weight |
Working platform |
300kg |
370kg |
|
Hoist |
52kg×2 |
56kg×2 |
||
Safety lock |
5.5kg×2 |
5.5kg×2 |
||
Suspension mechanism |
320kg (without counter weight) |
320kg without counter weight) |
||
Electricity box |
18kg |
18kg |
||
Total weight |
812kg |
872kg |
||
Counter weight |
1000kg (25×40pieces) |
1000kg (25×40pieces) |
||
Wire rope |
Type |
4×31SW+FC-ф8.3 broken pulling force≥53500N |
4×31SW+FC-ф8.3 broken pulling force≥62500N |
|
Cable |
Type |
3×2.5+2×1.5YC-5 (one piece) |
||
Main structure of Suspended platform

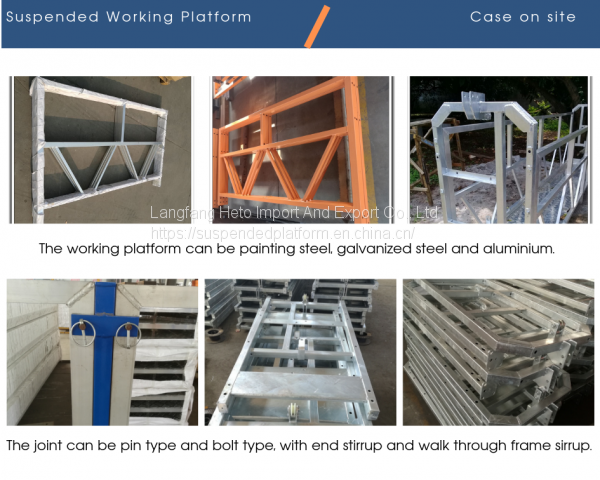

For complete Counter Weight Gondola, the modular suspended platform can be painting steel, galvanized steel and aluminium, as per different conditions. The work platform is modular as 1m, 1.5m,2, 2.5m and 3 meters.
The counter weight suspension mechanism can be galvanized steel or painting steel, with different types of counter weight.
If it is not suitable to use suspension mechanim, Parapet Clamp is a better choise, it is low cost, easy to operate.
