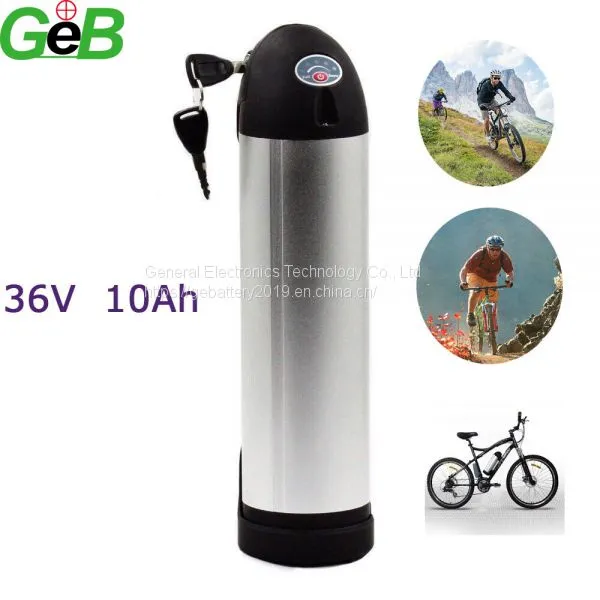

36V 10Ah Lithium ion Bottle e-Bike Battery with a Tough Aluminium Shell Body

FOB Price

USD $120 - $180 / Piece

1 Piece(Min.Order)

Product Details

Type:

Lithium Battery

Voltage:

36V

Capacity:

10 - 20Ah

10Ah E-bike battery 36 Volt LiFePo4 battery pack
1. Basic Characteristics
Weight			≤3.5kg
Dimension(TWH)			400mm L x 87mm Diameter (customized)
Working temperature		Charge Temperature						0~45°C
		Discharge Temperature						-20~65°C
Retention of charge (store in one month)									≥95%
2. Technical Data
Rated Voltage				36V
Rated Capacity				≥ 10Ah
Battery Resistance				≤100 mΩ
Charge	Way of Charge				CC/CV
	Standard Charge Current					2A
	Max Charge Current					5A
	Max Charge Voltage					42.5V
	Cell Over Charge Protection Voltage					4.25v
Discharge	Standard Discharge Current					15A-20A
	Max Discharge Current					30A can be customized
	Discharge Cut-off Voltage					27V
	Cell Over discharge Protection Voltage					2.7V
Cycle Life							800 times,capacity>60%

Water Bottle eBike Battery Specification
The battery comes with 2 keys and without charger

Nominal Voltage : 36V

Battery Configuration : 10S4P

Rated Capacity : 10Ah

Battery Cell : lirhium ion battery

Max. Discharge Current : 20A

Battery Weight 3.8kg

Motor Size Up to 500w

BMS Functions –

Cell balancing
Over-discharge and over-charge protection
Over-current protection
Temperature protection
Short-circuit protection
