ASTpack Flexitank Design

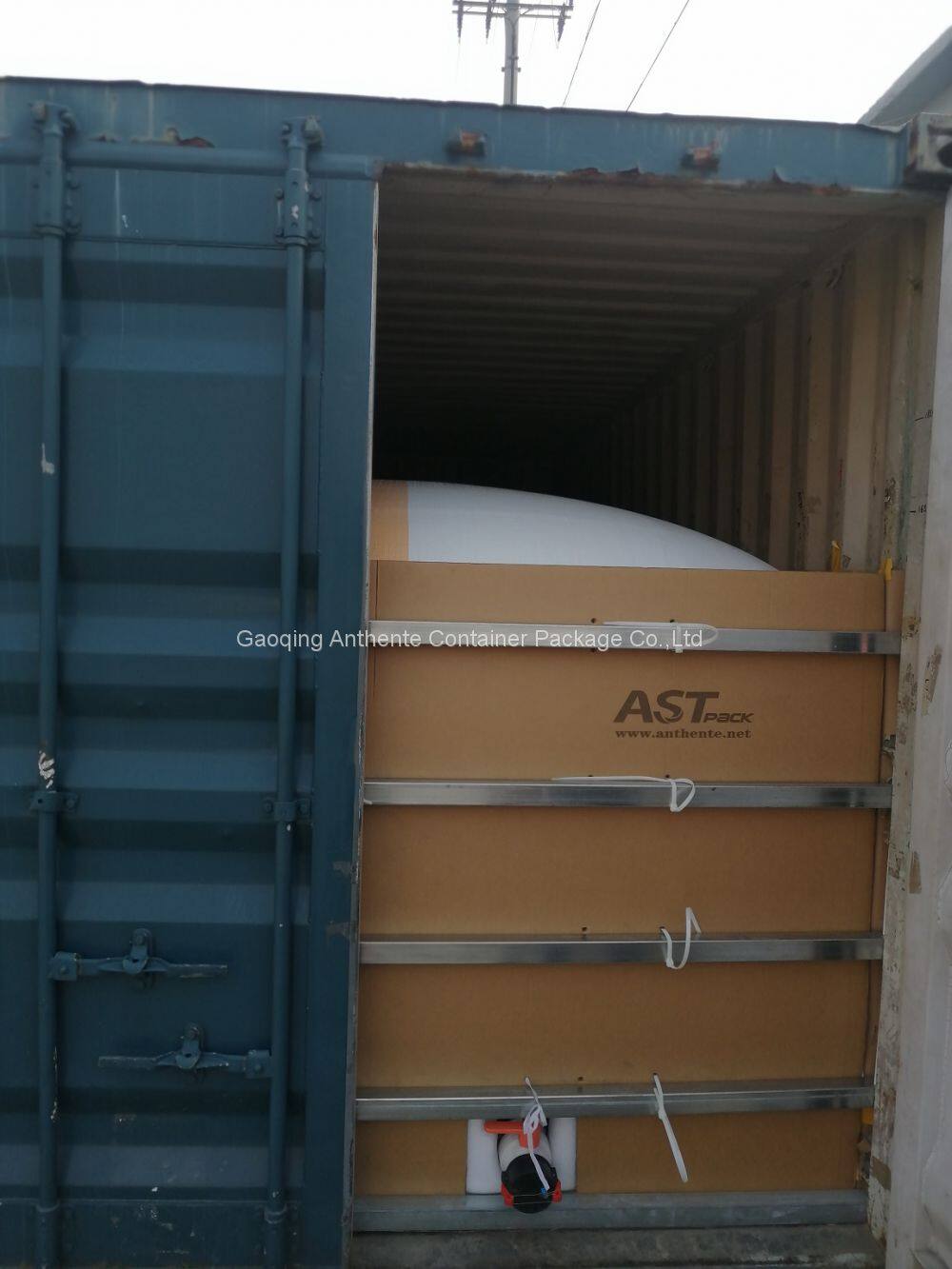

The ASTpack Composite Design Flexitank/Flexibag convert a standard 20ft sea container
into a 12~24KL bulk liquid transportation system. This food grade flexitank is suitable for
the carriage of most types of non-hazardous liquids.
The ASTpack Composite Design Flexitank is constructed of three or four independent
food grade 3-ply co extrudedPE Film tubular and a rugged,abrasion resistant outer woven
PP protection.It is capable of shipping up to 24,000 liters of bulk liquid.
Construction of Standard ASTpack Flexitank
Importance of Air Vent Assembly
Light weight
Easy to install
Easy in and out
Steel Reinfoced
No organic material
No fumigation
Totally disposable
|
|
Quality
We dedicated to providing quality products and services that satisfy our customers' need.
Our focus is on continual improvement and innovation of quality products.Due to our policy
of continual improvement all specifications are subject to change without notice.
Flexitank design update:
ANTHENTE reserves the right to make design changes for the improvement of a product
without notice.
Flexitank Application for transporting:
Food Products |
Industrial products |
Non-hazadouschemicals |
palm oil |
base oil |
plasticizer |
edible oil |
machine oil |
choline chloride |
cooking oil |
lubricating |
cleanser |
fish oil |
motor waste oil |
propylene glycol |
food additives |
driling mud oil |
shampoo |
water, juice |
bunker oil |
Latex |
Olive Oil |
white oil |
polybasic alcohol |
Wine |
industrial gear oil |
fatty acid |
liquid glucose |
mineral oil |
paper pulp |
syrups |
printing oil |
printing ink |
saccharose |
technical oil |
eradicator |
milk |
biodiesel |
silicate |
sauces |
alkylate |
|
tall oil |
Flexitank FAQ
1. What sizes of flexitanks do ANTHENTE supply? We supply standard 12,000L and 24,000L capacity flexitanks.2. What is the maximum loading capacity of your flexitank? Maximum capacity is 24,000 Liters.3. Do you have different types of flexitanks Yes,We have 2 models of flexitank: 1)Normal Flexitank/Flexibag. 2)PREMIER Model with oxygen barrier, suitable for oxygen-sensitive products; ie. wine,
flat beer,high-grade,cooking oil etc.
sideration,We recommends Safety Loading Temperature of 60°C and below.
5. What is the advantage of bottom loading/discharge? It is safer since the loaders do not go on top of the flexitank; It is more user-friendly
and faster in loading and discharge.6. What is the size of your valve?
We can equip standard 2' and 3' inch Valve. we have butterfly and ball valve.
7. What is the compatible connection to your flexitank standard full port 3 inch camlever ball valve? Hoses ending with 2 inch and 3 inch female cam lever fitting will connect to our valve.8. What type of certifications do you have? We are COA members since from 2012,AAR testing approval,ISO9001 and FSSC22000,
HACCP,KOSHER food grade certificate.We only use FDA and CE food grade LLDPE PE
Film.
9. Is your company accredited with ISO9000? Our Flexitank is ISO 9001:2008 certified.10. What is the percentage of residue in your flexitank? Around 0.5%.11. Can your flexitank be re-used? Our flexitank is a one-way disposable flexitank. Our insurance will not cover reuse.12. How long does it take to load the flexitank? Normally not more than 45 minutes.13. Do you have an insurance policy in case of leaks? Yes, we are covered under the 5(five) million U$ product liability policy by CPIC.14. Can I load 12,000 liters in a 24,000 liter flexitank? No. If it is not fully loaded, the movement from transportation causes a wave action
in the liquid inside the flexitank and it can cause a tsunami-like force from within the
container.Under-loading will destroy any flexitank.The guidelines for loading used by
the Container Owner Association (COA) is 95%~100% of flexitank rated capacity.15. What is the maximum pressure your flexitank can hold?
Our flexitank is a non-pressurized container,it will keep growing bigger and bigger.
At about 4 psi,it will rupture.
