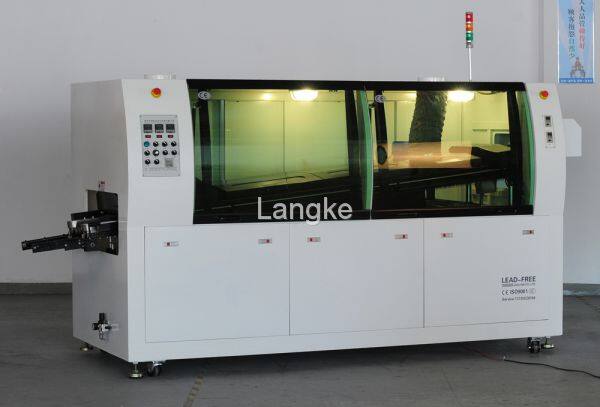

dip wave soldering equipment for PCB Assemble line
keywords: tht wave solder, wave solder, soldering machine, dip wave solder, wave soldering machine, soldering machines, dip machine, solder, welding machine, smt welding
1. The whole machine is lead-free artwork designed.
2.The streamline design is completely modernism,with transparent windows to be viewed and maintained easily
3.Adjustment will be made manually .Entrance end outlet is isolated for adjustment .Worm-and wheel structure is easy for adjustment with small effort
4.Auto claw washing device
5.Wave solder,solder channel and impeller take the advantage of cast structure ,with properties of deformation-free ,anti-wear and anti-erosion
6.Equipped with thermal compensation be able to hold temp.drooped as ≤2℃ before soldering,reduced the thermal impacted on components
7.Both of the solder wave is driving by inverter to obtained energy save by independent driver control and board sensor when PCB entering
Item |
LK-300 |
Control method |
Computer+PLC |
Conveyor motor |
1P AC220V 90W |
Conveyor speed |
0-1800mm/min |
PC board size |
Max.300mm |
Pre-heating area |
Length:1400mm Temperature:room temp.-200℃ |
Pre-heating method |
Infrared ray/hot air |
Soldering stove heating |
Cast-iron heating board Room temp.-300℃ |
Soldering stove capacity |
320KG |
Soldering peak height |
0-12mm |
Wave motor |
3P AC22OV 0.36KW*2pcs |
Claw washing pump |
1P AC220V 6W |
Cooling |
Fan cooling |
Conveyor direction |
L-R /(R-L) |
Flux capacity |
Approx.5.2L |
Air pressure |
3-5 BAR |
Welding angle |
3°- 7° |
Power |
3P AC380V 50Hz |
General power/Operating power |
12KW/4KW |
Body dimension |
L2600*W1330*H1450mm |
Outline dimension |
L3300*W1330*H1450mm |
Net weight |
1200kg |
