High oil yield castor seed oil turnkey production line

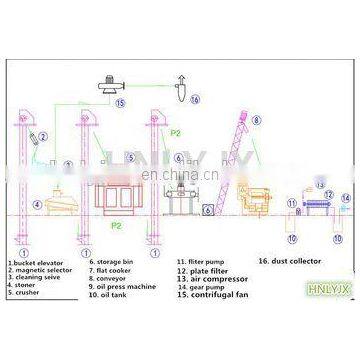

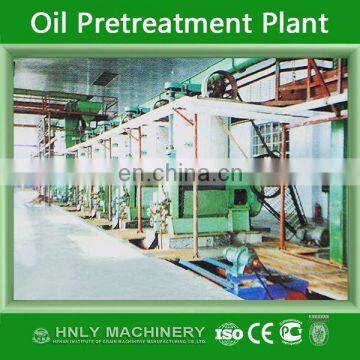

1. oil seed pretreatment and prepress plant
seeds→Magnitic seperating( Metal impurities)→cleaning →husking→ flaking roll→Cooking →pressing workshop

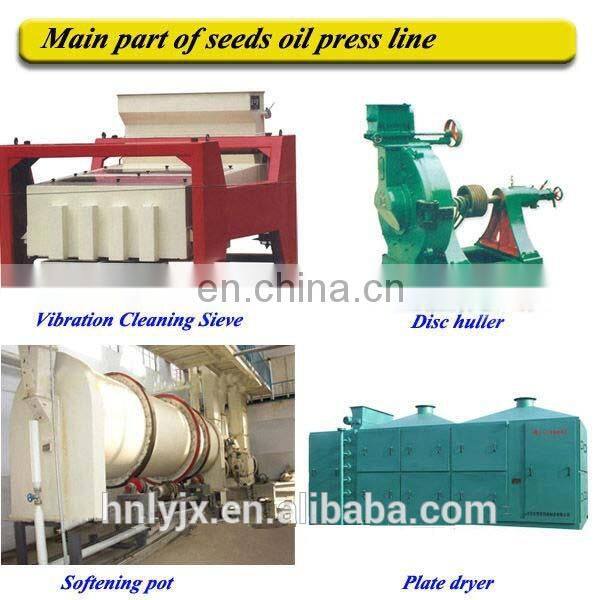

Main Equipments of castor oil extraction
1. Raw material : peanut,soybean,rapeseed,sesame seed ,sunflowerseeds,linseed, pumpkinseeds,
cottonseed etc.
2. Magnetic box: Clearing the iron impurity which might be in the seed.The iron impurity will be
harmful to the following machines, so we need take the iron impurities out.
3. Cleaning: This parts have different size cleaning sieves to clean the different impurities.
After going through this part, most of the impurities are moved from seed .
4. Husking:this can help improve the oil yield from seed,and reduce wear to the machine .
5. Flaking: making use of the mechanical action to flake the seed into flakiness.
After flaking, the materials is becoming thiner thank before, it is good for absorb moisture and
heat in cooking process , and it is much easier for getting seed oil in castor oil extraction process.
6. Cooker: This machine can adjust the water content of the seed. It’s also good for oil press and oil extraction section.

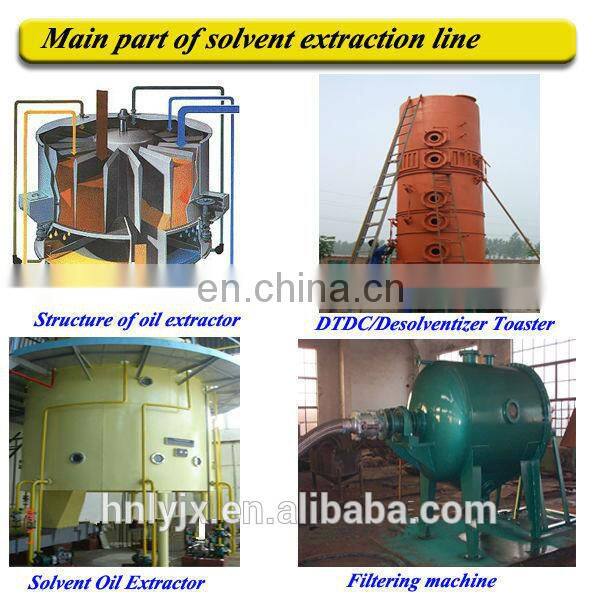

2. The seed cake solvent extraction plant
Moisture of extraction material |
5-8% |
temperature of extraction material |
50-55°C |
oil content of extraction material |
50-55°C |
oil content of extraction material |
14-18% |
thickness of extraction cake |
less than 13mm |
powder porosity of extraction material |
less than 15% (30 mesh) |
steam |
more than 0.6Mpa |
solvent |
national standard No. 6 solvent oil |
electric powe |
50HZ 3*380V±10% |
Electric lighting |
50HZ 220V ±10% |
tempreture of supplement water |
less than 25°C |
Hardness |
less than 10 |
volume of supplement water |
1-2m/t raw material |
temperature of recycle water |
less than 32°C |

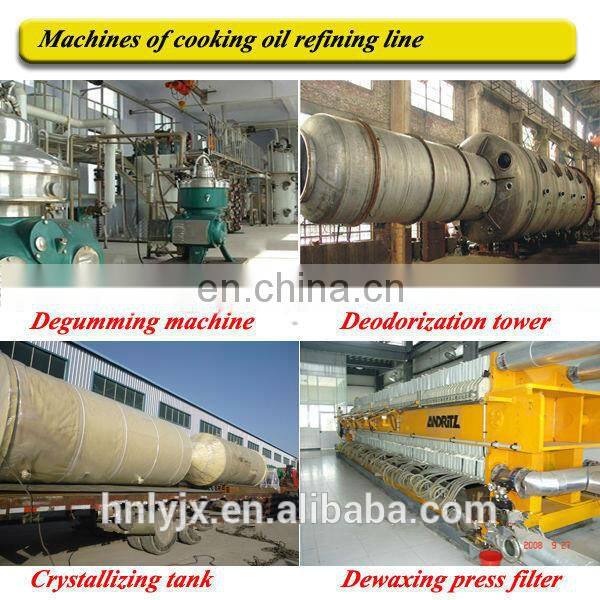

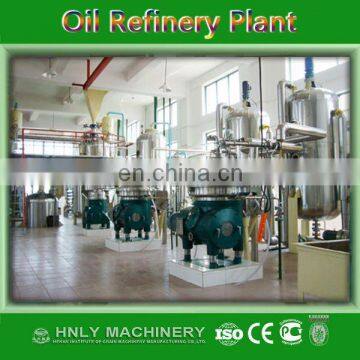

3. seed cake refining process
Crude oil → degumming and deacidification→ decolorization →deodorization → refined oil.
Main Process of castor oil extraction
1. Degumming and deacidification: The gumming is moved by phosphoric acid and hot water.
2. Decolorization: This step is used to adjust the color of the oil. You can control the color of the oil
according to the requirement of your market.
3. Deodorization: The function of this step is to move the special smell in the oil. This is an important
standard for refined oil.

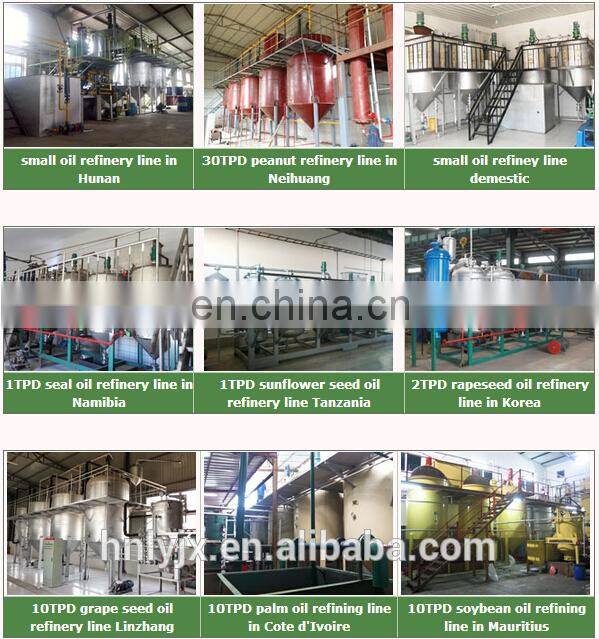

4. Projects Achievements
Country |
Project Name |
Raw material |
Year |
Bangladesh |
30T/D rice bran expanding and extraction , 5T/D rice bran oil refining project |
Rice bran |
2013 |
Malaysia |
100T/D palm fruit oil refinery project |
Palm fruit |
2012 |
Sudan |
The whole production line for 30T/D peanuts oil expeller press |
Peanuts |
2011 |
Bolivia |
60T/D soybean oil refinery project |
Soybean |
2011 |
Indonesia |
30T/D copra oil extraction , and 20T/D copra oil refinery |
Copra |
2012 |
Kazakhstan |
3T/D cotten seeds oil refinery project |
Cotten seeds |
2012 |
Customer Visiting:
Application:
We are one of TOP 10 Cereals & Oil Machinery Brand Manufacturers in China. This production line includes seed oil pretreatment and pre-pressing machine, sesame oilcake extraction machine and seed oil refining machine.
•10-500T/H oil material first cleaning,drying and storage section turn-key project.
• 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
• Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
• 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
• 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
• 10-200T/D Fatty acid esterification production cooking oil production line.
1. How can I get your quotation or project?
Please tell me your flowing information:
What is your raw material?Sunflower,soybean,coconut,peanut,rapeseed or other?
How much raw material do you want to process per day or per hour?
Do you need crude oil or refined oil?
2. How can I believe in your company?
We have more than 30years in all kinds of vegetable oil material machine production,and we have all kinds of production certificates,such CE,BV,ISO9001 and more,please visit our web:, and you will know more of us.
3. What is your sales-after services?
Please don’t worry,dear,if we have chance to cooperate with each other,once we signed the contract,we will build special project service team for you,from the drawing to the production,we will have special workers for all process tracking.And we will arrange our special engineers to go your project site for installation and guidance.
4. What is your MOQ?
At the moment,about the quantity,we have no special requirements,even if you just order one sets,we will do our best for you.
5. What is material of your machine?
Usually,the parts which contact with oil directly and the important are stainless steel,other part is carbon steel or Si-Mn steel and other.And we can design it according to your requirements.
Such Our machine is of high quality, such as valves from Siemens, bearings from SKF,gear box from SEW, etc.. Automatic welding machine, X-ray test machine, steel rolling machine and others are equipped completely, which won customers’ trust from Europe, America, Mideast, Romania, etc.
