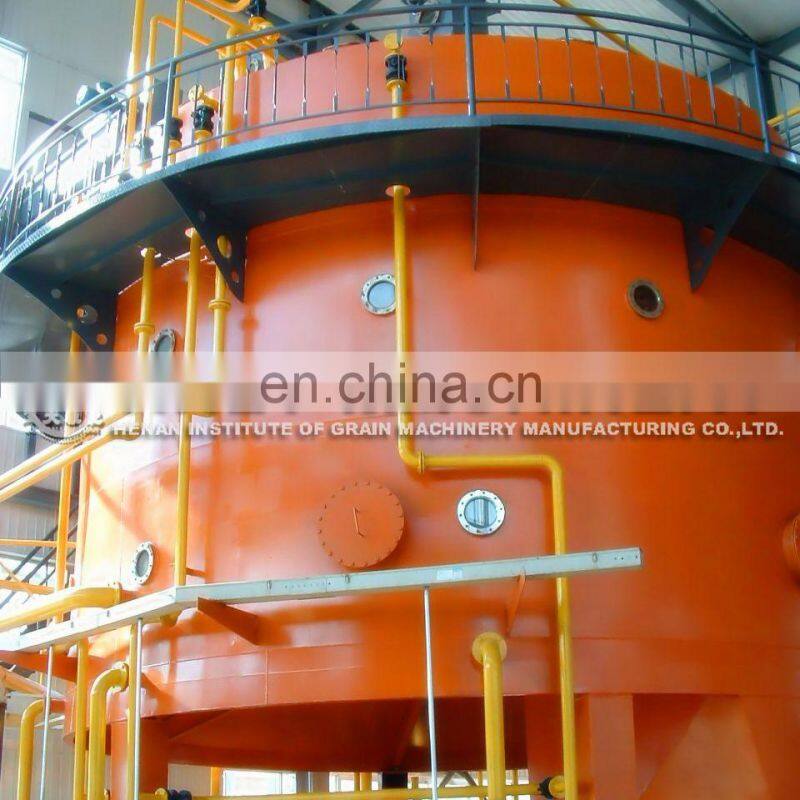

soybean oil rotocel extractor-oil extraction equipment
Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;
The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.
The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.
Specially suitable for the extraction of various pre-pressed meals.
Main Economic and Technical Parameters of Rotocel Extractor (take 300T soybean extraction as an example)
Capacity: 300T/D,
Residual oil in meal: ≤ 1% (soybean),
Solvent consumption: ≤ 4Kg/T (No.6 solvent oil),
Crude oil moisture and volatile matter: ≤ 0.30%,
Power consumption: ≤ 23KWh/T,
Steam consumption: ≤ 200KG/T (0.8MPa),
Finished meal moisture: ≤ 13% (adjustable),
Residual solvent in finished meal: ≤ 300PPM (qualified detonated experiment)
Packaging
Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.
shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6. 24Hr online service
1.About us
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
we provide a turnkey project of our machinery,including special design,installation, commissioning and training workers.
2.Why choose us
---Advanced equipments,good quality
---Professional skills,all-related services
---High quality and efficiency technology
---Complete production line,quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions
FAQ
1.Q :Are you the factory?
A:Yes, We are a professional manufacturer for several years.
2.Q: Where is your factory located?
A:Our factory is located in Jiaozuo, Henan Province.
3.Q:How about the INSTALLATION?
A:Engineers available to service machinery overseas,including installation,commission and training,etc.
4.Q:Can your company accept the customized product?
A:Yes,OEM &ODM service is available.We can make the products according to your size,design,color, It will be better if you can send us the product pictures for our reference.
5.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Any questions, please don't hesitate to contact us!
