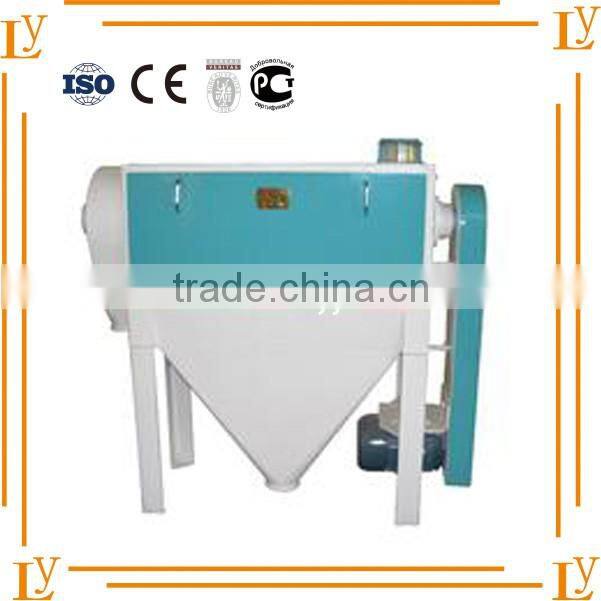

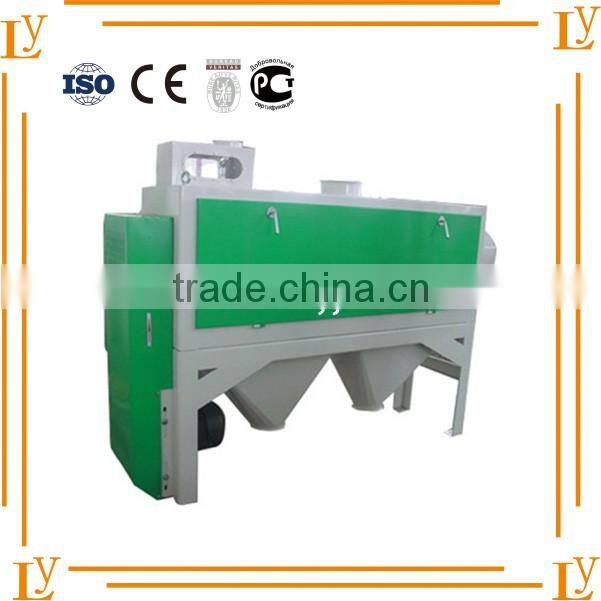

per set price of flour mill machine wheat bran finisher
Application:
Bran finisher type MWDF removes the last trace of flour from the bran, thus recovering flour that has
commercial value, while at the same time producing a good quality bran which is relatively free from starch. The machine thus increases flour extraction in a flour mill. It has a compact design, easy operation with high capacity.
Working principle:
The MWDF bran finisher principally consists of a mild steel casing, support base, rotor with beater rails, sieveand a V-belt drive motor.
The casing and support base is made of 4 mm mild steel, there is an air inlet on the top side.
Features:
1. Advanced rotor design, dynamically balanced rotor bar, therefore avoid running imbalanced vibration
happening.
2. Octagon shaped sieve designing which gives effective stock classification.
3. Convenience and quick change designing for screens maintenance.
4. Special beater configuration ensures higher capacity to more easy meet flow sheet requirement.
Main parameter:
| Type |
Sieve tube diameter |
Sieve tube length | Axis speed | Capacity | Power | Weight |
Dimension (L×W×H) |
| mm | mm | r/min | t/h | kw | kg | mm | |
|
FPDW- 30 ×1 |
300 | 800 | 1300-1600 | 0.9 | 2.2 | 220 |
1319×520 ×1350 |
| FPDW-30×2 | 300 | 800 | 1300-1600 | 1.8 | 2×2.2 | 440 |
1319×1016 ×1350 |
|
FPDW- 45 ×1 |
450 | 1100 | 1000-1100 | 1.5 | 5.5 | 320 |
1700×650 ×1620 |
|
FPDW- 45×2 |
450 | 1100 | 1000-1100 | 3 | 2×5.5 | 640 |
1700×1300 ×1620 |
Packaging
Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.
shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6. 24Hr online service
