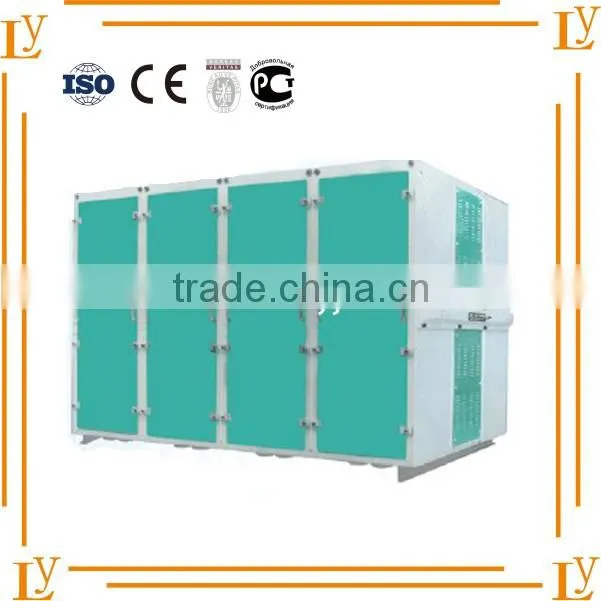

3-5T/H double cabin high square plansifter,flour grading machine
FSFS series double cabin plansifter is suitable for all kinds of powder materials classification, has widely used to classifying and screening in corn processing plants, corn starch factories, flour mills, feed mills; it is an ideal device for particulate material classifying and screening, it is low power consumption, high yield, good sealing performance, no dust leakage.
Principle
- The machine is driven by a motor which installed underside of the main frame and counter-balanced by a counterweight. There are single section type, double sections and 4 sections type in this machine series. According to individual design for different material, the sieve sifts different granular materials to different next passages in flour mill when the whole machine is running.
Features
- Sieve frame size: 630x630mm, 700mmx700mm, 830x830mm, 100mmx100mm,1200mmx1200mm
- Adjustable counterweight mounted with SKF (Sweden) bearings.
- Sieve frames are made by imported wooden coated inside and outside with plastic melamine lamination, demountable, interchangeable. Sieve frames are equipped stainless steel trays. Each whole section is fixed by means of a metal frame and pressure micrometric screws from the top. Easy and quick changing of sifting scheme if necessary.
- Sieves pack is suspended by its own frame and the frame is installed on floor or suspended by a separated frame which fixed on the ceiling.
- Sieve materials to be SEFAR mesh.
Technical Datas:
Parameter Model |
Output (t/h) |
Power (KW) |
Weight (Kg) |
Dimension(Mm) |
FSFS83*2 |
3 |
1.5 |
1000 |
2160*1570*2070 |
FSFS100*2 |
5 |
1.5 |
1200 |
2500*1910*2070 |
Packaging
Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.
shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6. 24Hr online service
