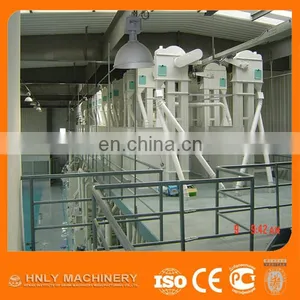

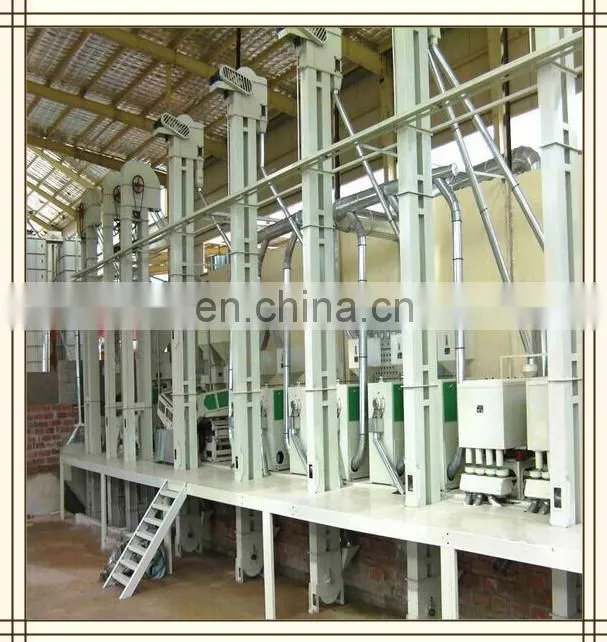

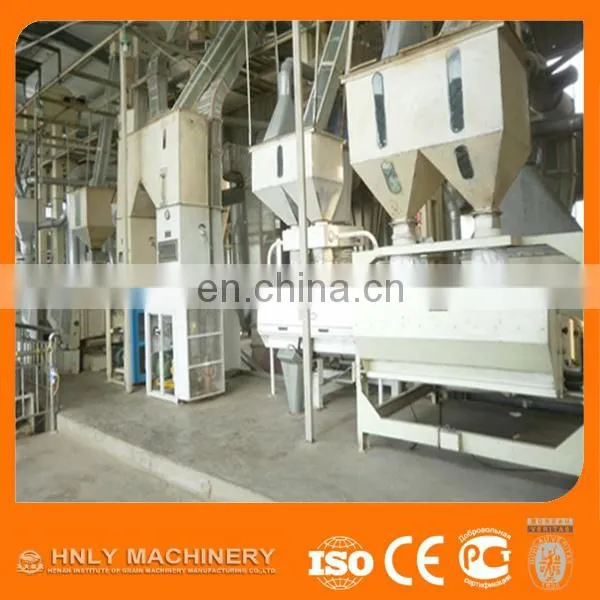

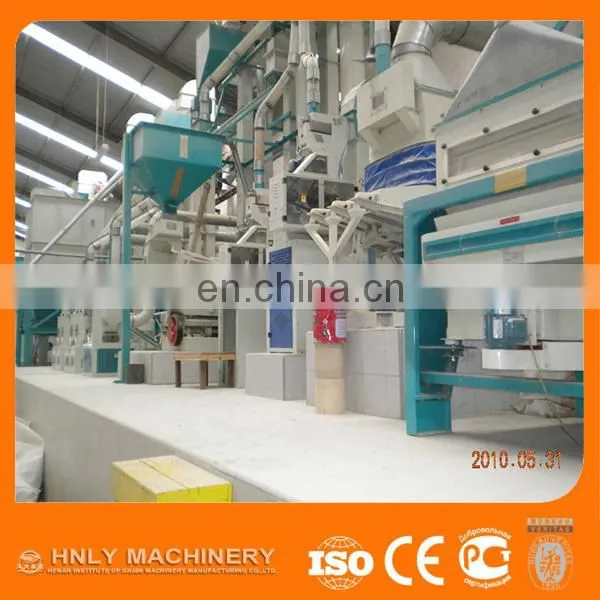

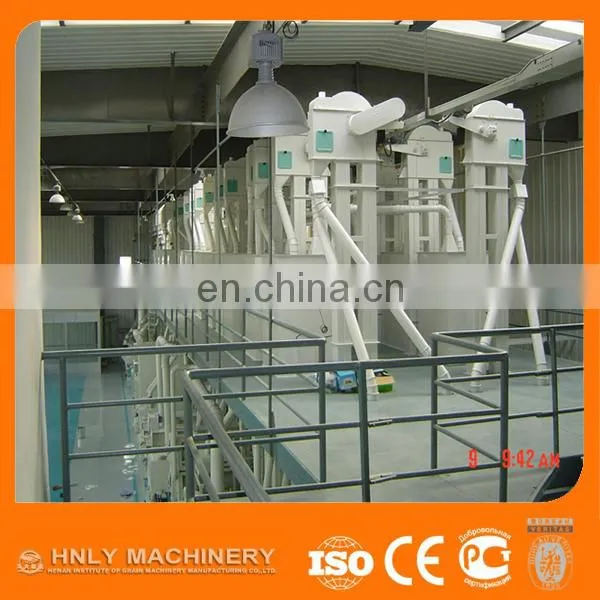

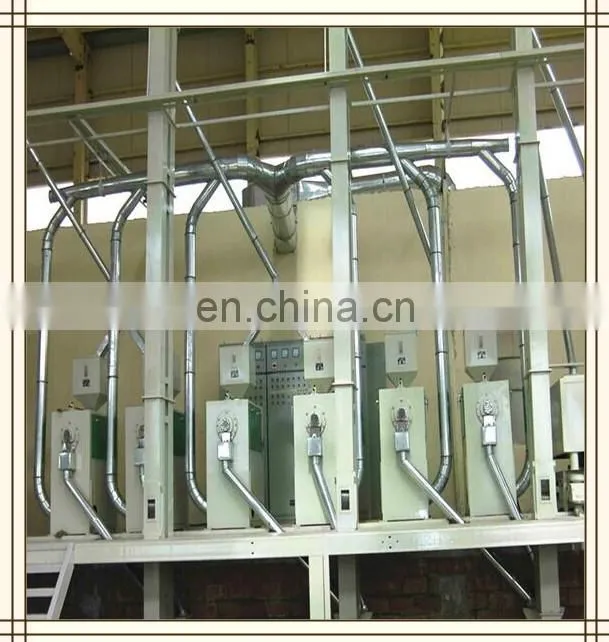

large rice mill plant, rice flour milling machine with turnkey project

FOB Price

USD $8,000 - $145,000 / Set

1 Set(Min.Order)

Product Details

Brand Name:	HNLY	Place of Origin:	Henan, China	Model Number:	rice mill machine
Certification:	ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 Months
Weight:	according to mode	Dimension(LWH):	according to mode	Condition:	New
Voltage:	220V/380V	Power(W):	30KW to 150 kw

large rice mill plant, rice flour milling machine with turnkey project

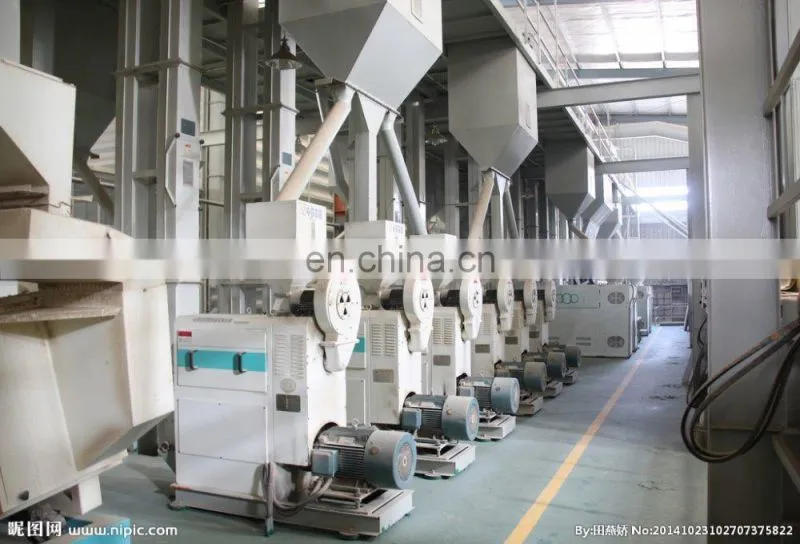

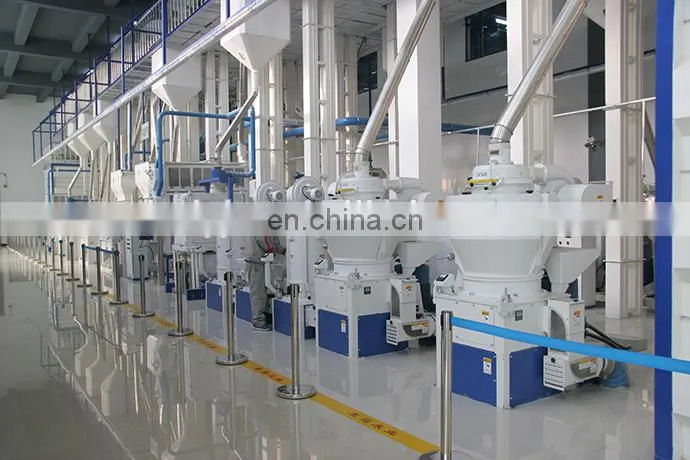

Rice milling plant brief introduction:

(1). Rice finishes being cleaned by vibrating sieve, destoner and magnetic separator, and then through grinding roller for hulling.

(2). After air blowing, entering milling machine, the paddy finishes the process of husking and milling in succession.

(3)Then husk, chaff, and white rice flour are pushed out of machine respectively.

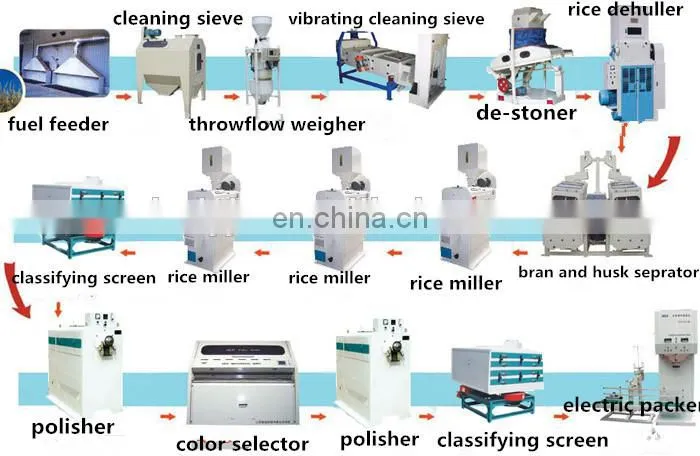

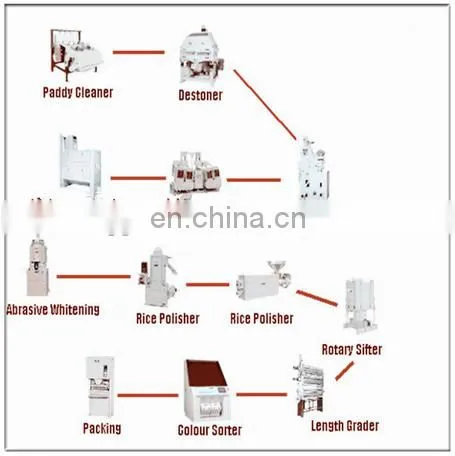

Flow Chart:

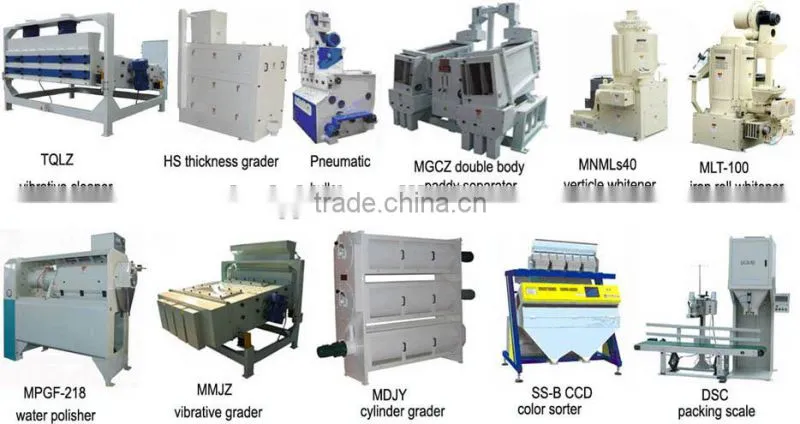

Paddy Cleaner → Destoner → Paddy husker → Paddy Separator → Rice Whitener → water polisher → Rice Grader → Color Sorter → Packing

Rice milling process:

Pre Cleaning	Clean out all impurities and unqualified grains from raw paddy
De-stoning	Separate stones, clods from rice
Parboiling (Alternative)	Improve the nutritious quality and milling recovery percent during husking, polishing, whitening
Husking	Remove husk from rice
Husk Separation	Separate husk from brown rice/ unhulled rice
Rich Separation	Separate the unhusked paddy from brown rice
Whitening	Remove all or part of the bran layer and germ from brown rice
Polishing	Improve appearance of milled rice by removing bran and by polishing kernel
Color Sorting (Alternative)	Remove foreign matter such as mould, broken rice from milled rice
Milling	Mill the pure rice

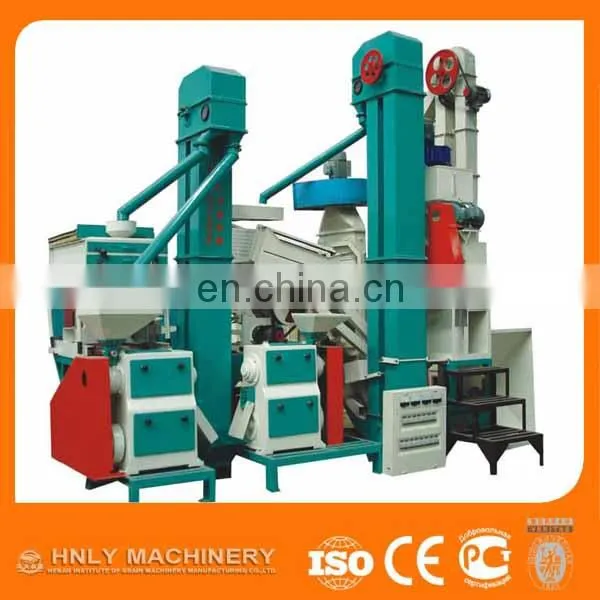

AMCT-20TPD conbine rice mill plant Technical Parameter

model	AMCT20A	AMCT20C	AMCT20D	AMCT20E
capacity	20-30t/d	20-30t/d	20-30t/d	20-30t/d
Device configuration is as follows
combined cleaner	CQS70	CQS70	CQS70	CQS70
husker	MLGT20	MLGT20	MLGT20	MLGT20
paddy separator	MGCZ 100x5	MGCZ 100x5	MGCZ 100x5	MGCZ 100x5
whitener	NF 15A	NF 15A	NF 15A	NF 15A
rice grader	NO	MMJP 63x3	MMJP 63x3	MMJP 63x3
polisher	NO	MCMG 14	MCMG 14	MCMG 14
Packing Machine	NO	NO	DCS 50A	DCS 50A
Color Sorter	NO	NO	NO	AMS128
Power	37.6kw	70.5kw	71.0KW	72.0KW
Dimension	3x2.5x3.9m	6x2.5x3.9m	9X2.5X3.9m	11X2.5X3.9m
