Complete set of maize sirma flour milling machine for industrial purpose
Different from the traditional process of milling corn, we adopt dry method to process corn for making grits with different sizes and very fine corn flour at the same time(we also can get only flour from this machine). Our customers don't have to find the solution to dry the final product which will low the cost at most degree.
1. raw corn acceptance
Between corn storage/silo and our whole plant, there is supposed to be a wall and under the ground, a pit will be built to receive the corn. The first set of bucket elevator is set underground to collect corn and elevated to the next process
2. raw corn cleaning
We place one set of vibrating sieve to remove coarse and fine impurities like cobs, sands, leaves, small rocks, etc from raw corn; later will go through one set of de-stoner to remove stones that are similar shape with corn specially. There is magnetic box at the entrance of each machine to collect megnetic foreign materials.
3. peeling and degerming
We will allocate this part according to customers' needs. Usually we place two sets of emery roller dehuller and one set of iron roller peeler with polisher to peel and degerminate. After these three machines, we can remove mostly of the husks and germs from corn. Equipped with air blowers and cyclone catchers, dust and husks with germs will be collected separately. The working condition of this part will determine the quality of final grits and flour.
4. crushing and milling
The dehulled corn will go through hammer mill and single passage roller mill/double roller mill for further processing, with grading plan-sifter, polisher, gravity table, separating sieve, etc we will get grits with different sizes and flour at the certain outlets.

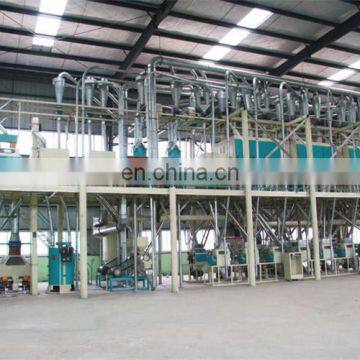

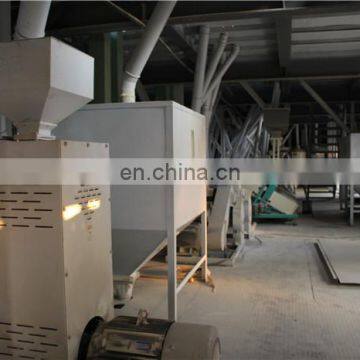

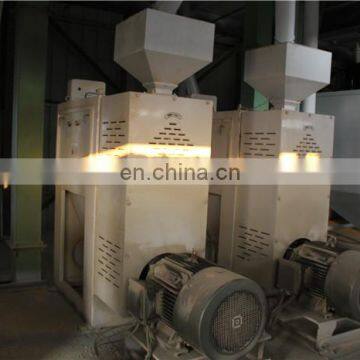

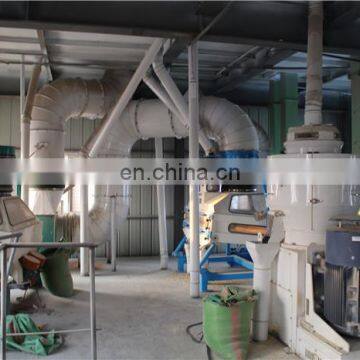

The working site of maize sirma flour milling machine
The working site of maize sirma flour milling machine
The working site of maize sirma flour milling machine
The working site of maize sirma flour milling machine
The working site of maize sirma flour milling machine
The working site of maize sirma flour milling machine
The final product of The working site of corn maize flour grinding mill
As different customer need, the product can be corn grits and corn flour
As a professional manufacture,we are supply oil press machine,corn flour milling machine,maize flour making machine, wheat flour milling plant,grain flour making machine,corn flour making plant,wheat flour production line,rice mill plant, rice flour making machine, millet production line, millet flour making plant and other machine.If you have any need, please feel free contact with us.
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
As a professional manufacture,we are supply oil press machine,corn flour milling machine,maize flour making machine, wheat flour milling plant,grain flour making machine,corn flour making plant,wheat flour production line,rice mill plant, rice flour making machine, millet production line, millet flour making plant and other machine.If you have any need, please feel free contact with us.
