New Design Hot Sale With CE Approved Hot and Cold Oil Press Machine

FOB Price

US$ 1,000 - 1,000 / Set

1 Set(Min. Order)

Port shanghai/Qingdao/tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Ameco	Place of Origin	Henan, China
Type	Cold & Hot Pressing Machine	Certification	ISO
After-sales Service Provided	Overseas service center available	Weight	535kg
Dimension(LWH)	16007001350mm	Voltage	220V/380V
Condition	New	Power(W)	7.5kw
Automatic Grade	Automatic

Product Description

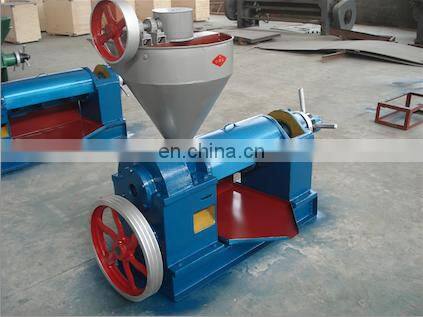

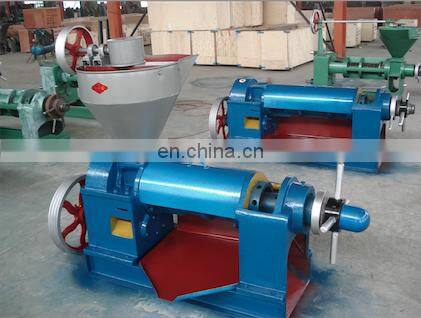

Main Structure:

This machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand, etc. The detail drawing are seen as below:

Technical Parameters:

Model	Capacity	Power	Weight	Outline Dimension
6YL-95A	3.5-5T/24hrs	7.5-11kw	565kg	16007001350mm3
ZX10

NO.	ITEMS		PARAMETERS
1	Matched power		7.5-11kw
2	Grinding shaft rotational speed		27-35r/min
3	Motor triangular belt wheel		B type 3×φ160
4	Triangular belt wheel		B type 3×φ500
5	Gear reduction ratio		55/13*34/15=9.59
6	Pressing time		About 45-50seconds
7	Ratio of residual	Rape seed	≤6.5%
		Cotton seed	≤6%
		Peanut seed	About 7%

Working Principle:

The screw oil expeller utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Owing to the sprial helical pitch of screws becomes shorter and the sprial depth of screw. Becomes shallower, in the chamber the volumes between screws and pressing ring inner is smaller, pressure produced from curve saw -tooth of pressing ring inner, which oil is separated out. Oil releases from the gaps between bars and oil slots between pressing rings. Cookie release from the cookie release state.

Apply:Widely used to squeeze various kinds of oil materials. like:ground nuts, beans, rape and cotton seeds, sesame,sunflower,coconuts, and grass seeds etc.

Main Advantages:

Oil press(Model 6YL-95A, ZX10)have wide application that make use of screw-Driving force to squeeze oil from plant seeds. These oil presses, after more than ten years’ improvement and modification, are concise in construction, easy to operate, and similar in performance to the advanced kindred oil presses

Shipping&Package:wooden case
