AF0510-CA2 Air-cooled Hydraulic Oil Cooler

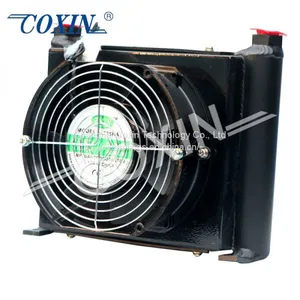

AF0510-CA2 Air-cooled Hydraulic Oil Cooler thumbnail-1
AF0510-CA2 Air-cooled Hydraulic Oil Cooler thumbnail-2
AF0510-CA2 Air-cooled Hydraulic Oil Cooler thumbnail-3
AF0510-CA2 Air-cooled Hydraulic Oil Cooler thumbnail-4
AF0510-CA2 Air-cooled Hydraulic Oil Cooler thumbnail-5
AF0510-CA2 Air-cooled Hydraulic Oil Cooler photo-1
AF0510-CA2 Air-cooled Hydraulic Oil Cooler photo-2
AF0510-CA2 Air-cooled Hydraulic Oil Cooler photo-3
AF0510-CA2 Air-cooled Hydraulic Oil Cooler photo-4
AF0510-CA2 Air-cooled Hydraulic Oil Cooler photo-5
US$ 1 - 50 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COXIN
Place of Origin:
China
Model Number:
AF0510
Contact Supplier Request Quote Chat Now
Shanghai Coxin Industrial Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COXIN
Place of Origin China
Model Number AF0510
Certification CE
After-sales Service Provided No overseas service provided
Warranty 1 year
Weight 1.6kg
Dimension(L*W*H) 216*118*201
Condition New
Voltage 110V220V380V, 12V24V
Structure Other, with fan
Maximum Working Pressure 2.0MPa
Liquid Flow Rate 10L/M

Shanghai Coxin Industrial Co.,Ltd is one of the best air cooling oil AF0510-C manufacturers and suppliers in China, welcome to buy discount and wholesale low price air cooling evaporator AF0510-C from our factory.



Product Name: Hydraulic Oil Cooler

Model No.:  AF0510-C*

Product Introduction

Hydraulic oil cooler AF0510 is a mini cooler, mainly used in small size of hydraulic power pack. Normally, air oil cooler’s standard working pressure is 2.0Mpa, when pressure higher than 2.0Mpa, a by-pass vavel should be installed at the return line side.



Product Features

1. Material: High strength of alloy aluminum, stainless steel;

2. Construction: compact and rugged;

3. Color: blue, yellow or pointed;

4. Maximum Standard Working Pressure: 2.0MPa

5. Range: 20+ models to cover flow ratings of 10 to 500L/Min;

6. Power supply: 110VAC/220VAC/380VAC/12VDC/24VDC or customers' demand;

7. Various type: Electric motor, hydro motor, pneumatic motor, explosion-proof for different application;

8. Approvement: ISO, CE, SGS;

9. Customized manufacture is available.



Product Application



Hydraulic,environmental, forging, casting, railway, cement, machinery etc..



Product Parameters

Model

AF0510

Pressure(Bar)

20

Flow(L/Min)

10



Fan

Parameters



Diameter

150mm

Phase

1¢

Voltage(V)

110VAC/220VAC/380VAC/12VDC/24VDC

Watt(W)

40

Ampere(A)

0.38

Connection Screw

PT1/2''

Dimensions(L*W*H)

250*125*203

Note

For draining of variable piston pump



Product Tags: air oil cooler , heat exchanger , hydraulic oil cooler
