Help Center3 / 4 FLUTE SOLID CARBIDE Fresa per Sgrossatura COARSE PITCH PROGRESSIVE UNEQUAL INDEX ROUGHING SINGLE END MILLS
Related Products
-
CNC Tools Corner Radius Tool Solid Carbide Radius Cutter Mill Rouding EndmillNegotiableMOQ: 10 Pieces -
High Precision Solid Carbide Ball Nose End Mill 2 / 4 Flute 1-20mm Tapered Cutting ToolsNegotiableMOQ: 10 Pieces
-
Solid Carbide End Mill for Aluminum 4-20mm With Coating 6mm 8mm 10mm CNC Tools Manufacturer Direct SaleNegotiableMOQ: 10 Pieces
-
High Precision Solid Carbide End Mills for Steel 4Flutes Diameter 1-20mm High Precision Cutting ToolsUS$ 1 - 200MOQ: 10 Pieces
-
High Precision Solid Carbide Drill Bit Diameter 1-20mm High Precision Cutting ToolsUS$ 1 - 200MOQ: 10 Pieces

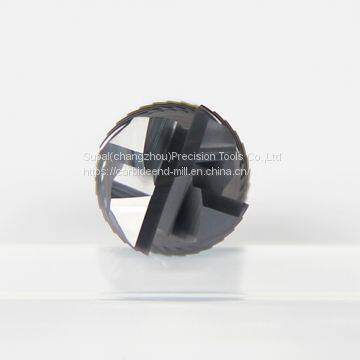

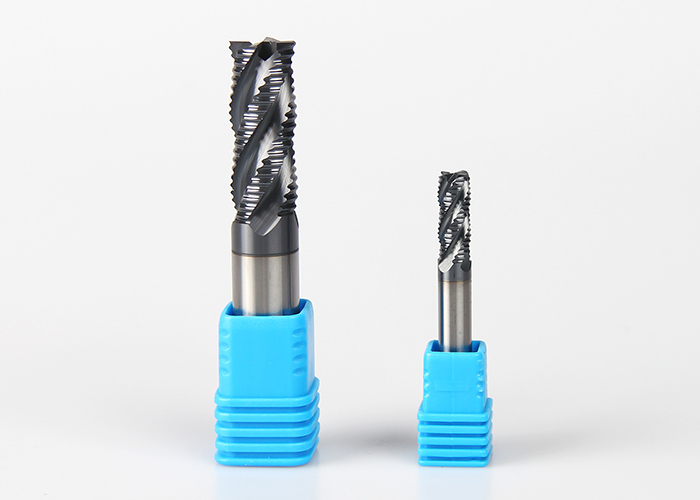

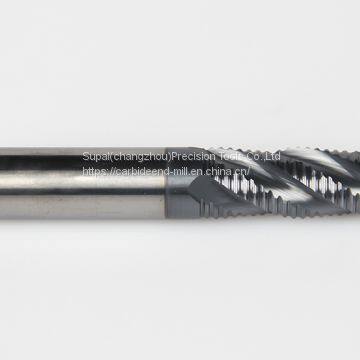

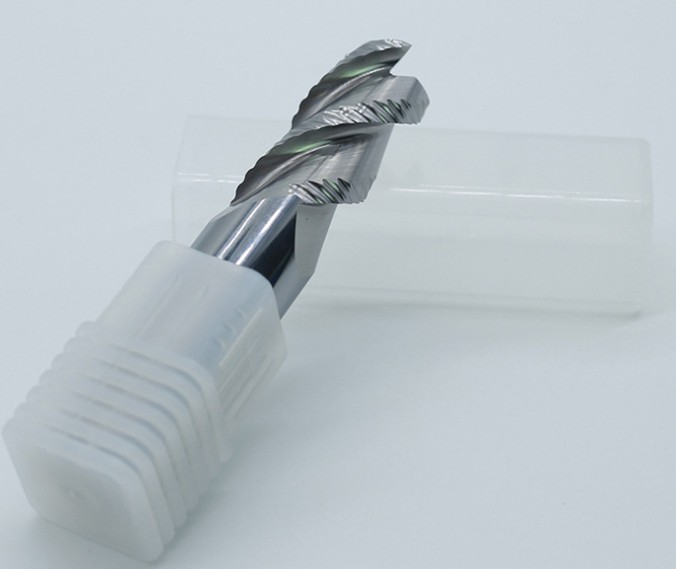

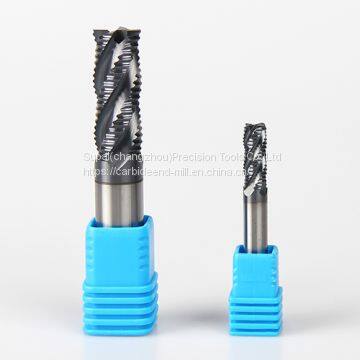

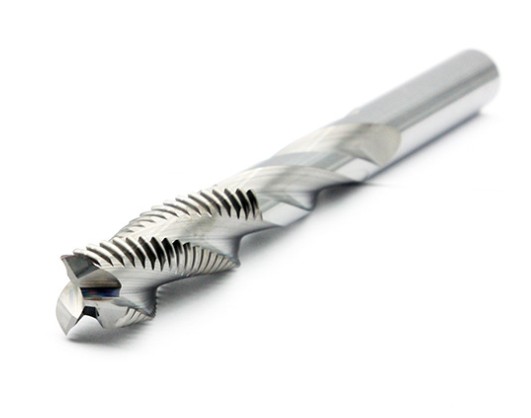

ALUMINUM ROUGHING END MILL
| Flute | 3/4 Flute |
| HRC | 45/55/65 Degree |
| Machine Type | Milling Maching |
| Suitable for | Carbon Steel, Cast Iron, Tool Steel, Alloy Steel, etc |
| Precision | High precision |
| Teeth Shape | coarse teeth |
| Product Keywords | aluminum roughing end mill |
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
| Coatings |
Hardness HV |
Thickness um |
Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Copper |
| AlTiSiN | 400 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |
BENEFITS
Unique flute design for excellent chip evacuation and vibration reduction.
Custom engineered coating to allow for long tool life and excellent chip evacuation.
Superb hot hardness with extraordinary wear resistance under extreme mechanical stress.
Higher heat resistance than AlTiN.
APPLICATIONS
Strong end tooth design for plunge and pocket milling.
Vibration free roughing of many alloys including alloy steels under HRc40 and cast iron.
Tool steels and pre-hardened steels.
FEATURES
Multiple lead and special configuration of end teeth.
Quiet cutting due to broken flute index.
1/4" and 5/16" are supplied with a plain shank.
3/8" and larger are supplied with a flat shank.
Optimal roughing tooth profile to reduce cutting forces.
Packing & Shpping
(1)1 piece in plastic pipe
(2)10 pieces per group
(3) case size is 40*15*20
Each box is no more than 20 kg

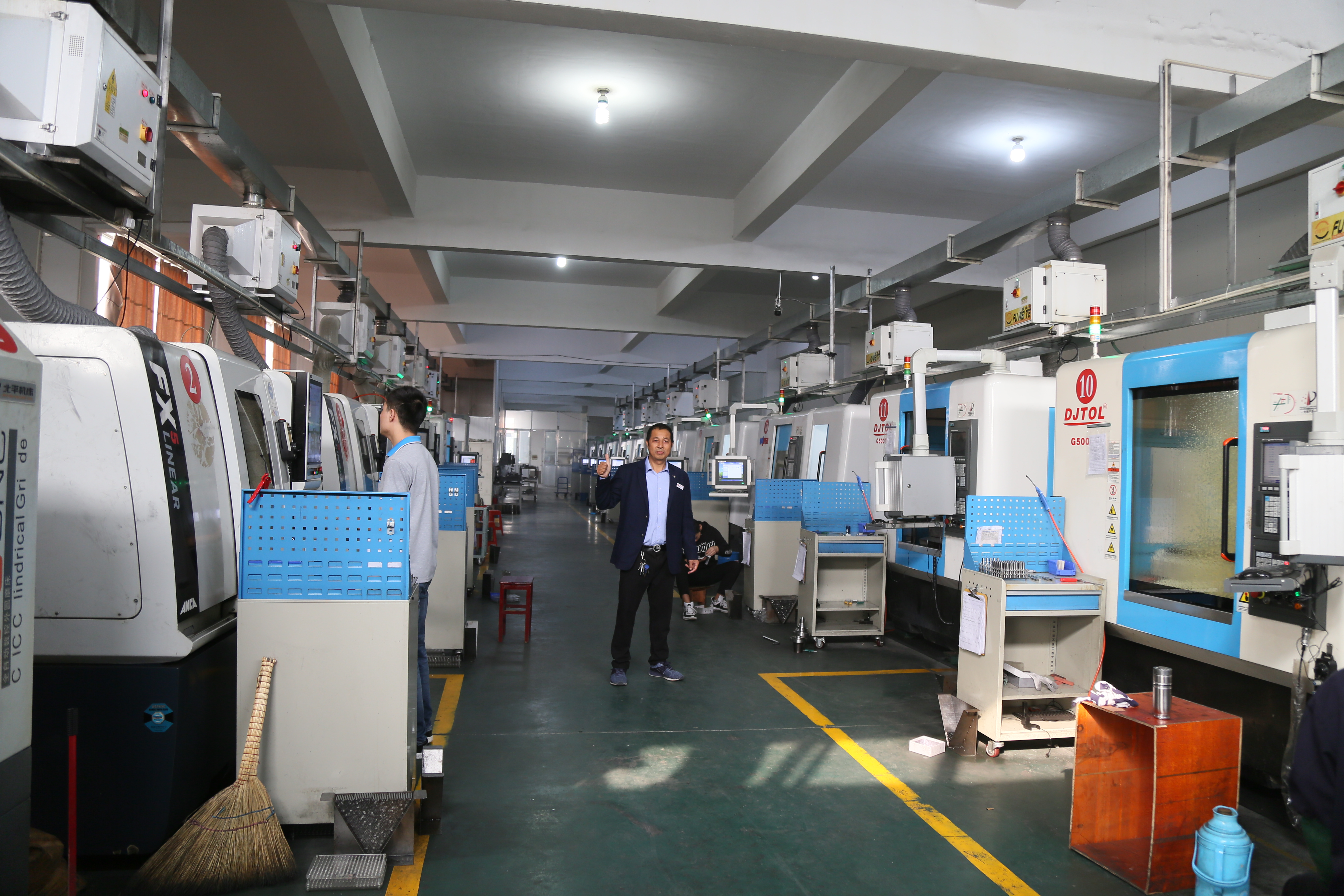

OUR FACTORY
Supal (Changzhou) Precision Tools Co., Ltd. has been engaged in design, production and marketing of solid carbide tools for many years,with total investment of more than 10 million, and consists of a group of experienced employees..
As a professional tools manufacturer, it has become one of the the director members of Changzhou Xiaxiashu Tools Association. The company has introduced Walter and Schutte of Germany, ANCA of Australia and five-shaft NC cutter grinding machines; in addition, the company is equipped with cutter automatic detector of ZOLLER and PG1000 ultra-precision multifunctional detector of EUROTECH.
Please contact us for more details ! Let us know how to serve you better!
