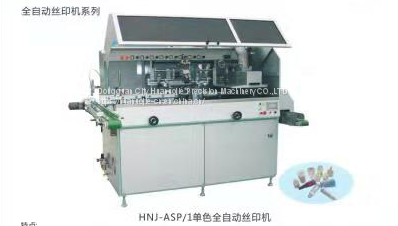

Help CenterHNJ - ASP/1 Single Fully Auto Screen Printing Machine
Related Products
-
HNJ -SR112/UV Automatic Screen Printing MachineNegotiableMOQ: 1 Set -
HNJ - SR320/UV Three Color Auto Screen Printing MachineNegotiableMOQ: 1 Set
-
Screen Printing MachineNegotiableMOQ: 2600 Sets
-
Rotary Screen Printing Machine Color Paste Pump JB76 Paste PumpUS$ 702.25 - 877.82MOQ: 1 Unit
-
Rotary Screen Printing Machine Screen Carbon CleaningUS$ 6,000 - 8,000MOQ: 1 Set
Features:
1、The machine integrates the advantages of similar products in Europe and America. After years of experience accumulation and innovation, the product has shown its perfection in operation performance, precision color printing appearance design and transmission design.
2、Incoming conveying electronic eye detection parts are delivered in place to reduce the wear or scratch on the material surface caused by the conveyor belt.
3、Equipped with automatic flame surface treatment device, the front and back sides of flat bottle printing can be precision color printing
4、The function of no parts no printing can ensure the continuity of high-speed printing machine, flat bottle stripping tube position can ensure the accuracy of color printing.
5、The machine can be connected with ultraviolet curing furnace.According to the curing characteristics of bottles and inks as well as the needs of printing, the selection of suitable gear has achieved good curing effect and extended service life
6、The machine is mainly driven by mechanical transmission, and coordinated with PLC control and pneumatic control, with flat bottle speed up to 4200PCS/H;At the same time, the machine bottle universal fixture, so that the replacement of products quickly and easily.
7、Suitable for printing: various oval and square (cosmetic, medicine and food) containers, the material can be plastic, glass, ceramic, metal and so on.
Technology data:
shape |
Max printing size |
Dimensions |
Weight |
Max printing speed |
Air consumption |
Power |
Round container |
Perimeter:300mm Height:250mm |
Diameter:Φ25~140mm Height:60~300mm |
1100KG |
60pcs/min |
Air pressure:5-7bar Air capacity:100L/min |
AC380V3Phase 50/60Hz 7KW |
Flat container |
Wide:120mm Height:250mm |
Radius:Φ20~250mm Height:60~300mm |
70pcs/min |
Note: specifications can be changed according to customer requirements
