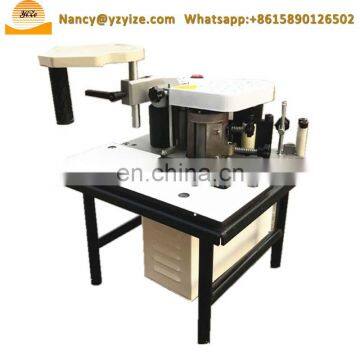

semi automatic ABS edge banding tape bander machine

Name: semi automatic ABS edge banding tape bander machine
Brand: YIZE
Price: USD $6,300 - 8,500 / Set

FOB Price

USD $6,300 - $8,500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao / shanghai / guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YIZE	Place of Origin:	China	Certification:	ISO
Warranty:	1 YEAR	Weight:	1400KG
Dimension(LWH):	400012001500	Condition:	New	Voltage:	220
Power(W):	8.67KW

Product Description

For our tape edge banding machine, here are 3 models for your choose:

1.The machine is used for MDF, wooden board and shaving board.

2.It can complete the processes of feeding work piece, feeding coiled material, cutting, end trimming, fine trimming,scraping and 3.buffing. It can achieve the level as same as foreign machines and the price is favorable.

4.It is especially suitable for the factory producing board furniture.

The processing is as follows:
Pre-miling → Gluing → End Cutting → Rough Trim → Fine Trim → Scraping → Buffing

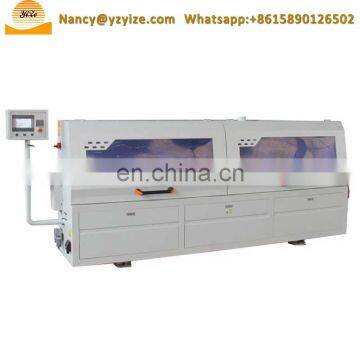

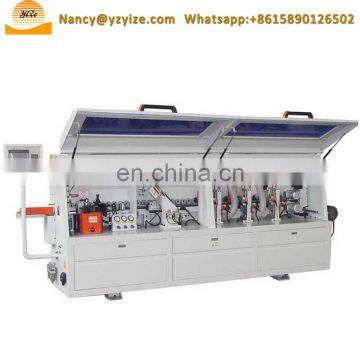

1. Automatic furniture trimmer tape edge banding machine

Model	YZFB-A-1
Thickness of panel	10-60mm
Min width of panel	60mm
Min length of panel	160mm

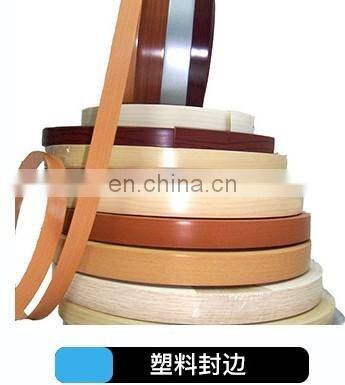

Thickness of belt	0.3-3mm(PVC)
Max. belt size higher than panel	1.5mm

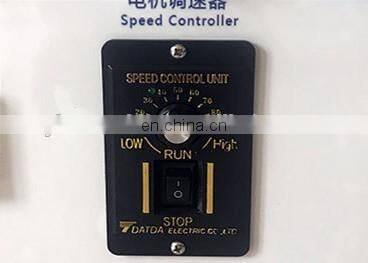

Panel feeding speed	0-26m/min(Adjustable)
Air pressure	0.7Mpa
End cutting motor	2x0.5KW 12000r/min 200HZ
Fine trimming motor	2x0.75KW 12000r/min 200HZ
Buffing motor	2x0.25KW 1400r/min 50HZ

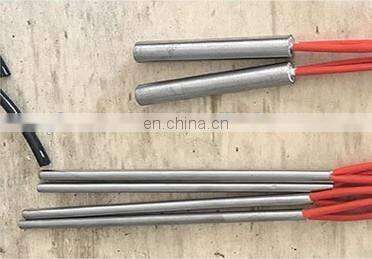

Heating power of glue tank	2.6KW
Panel feeding motor	2.2KW
Glue spindle motor	0.75KW
Power of accessorial heater	0.12KW
Total power	8.67KW
Outline size	4000x1200x1500mm
Net weight	about 1400kg

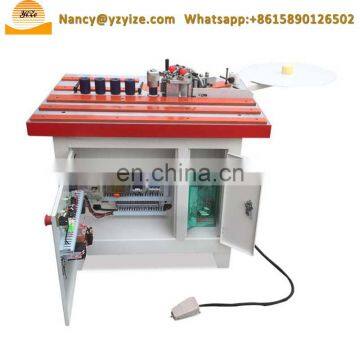

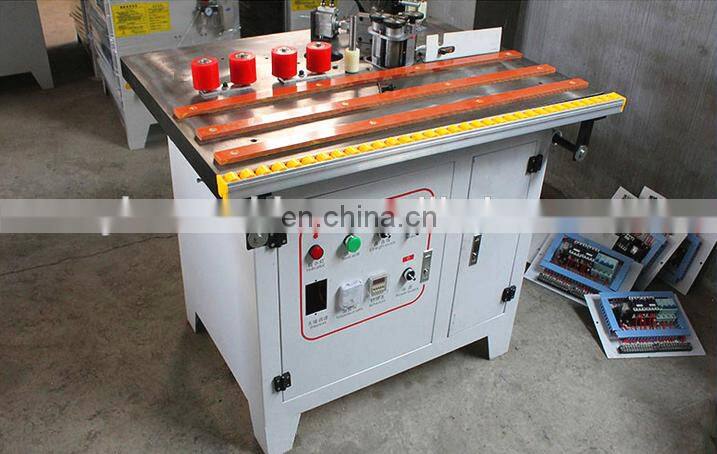

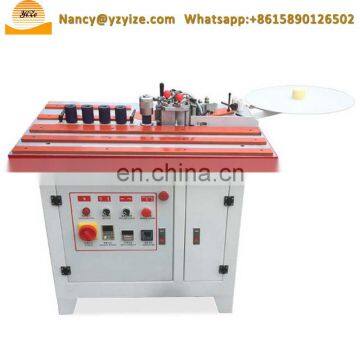

2. Semi automatic woodworking tape edge banding machine

Model	YZFB-M
Total Motor Power	3.5KW
Overall size	11008001150mm
Feed speed	15~23m/min
Panel thickness	10~60mm
Edge banding tape thickness	0.45~2mm
Panel width	≥60mm

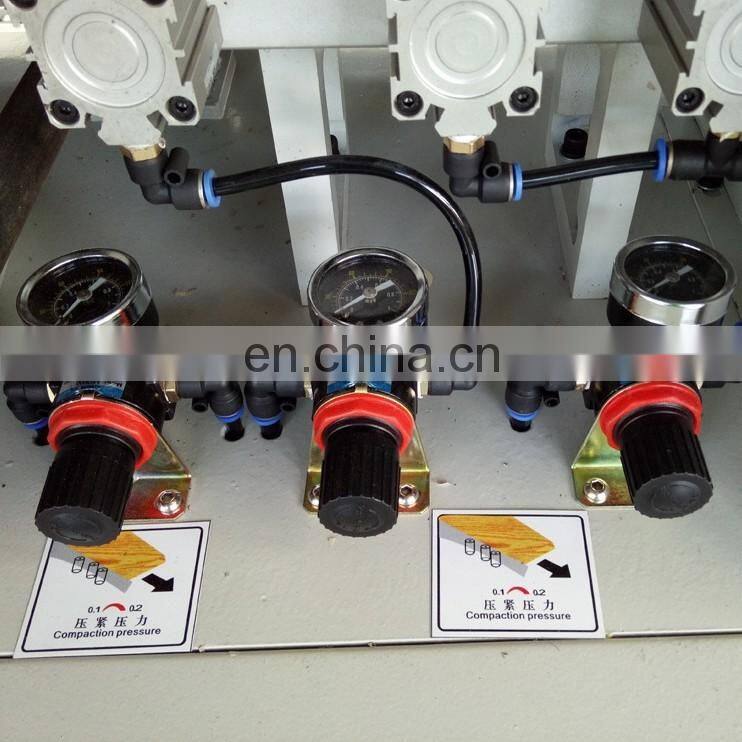

Working air pressure	0.8Mpa
Weight	280kg

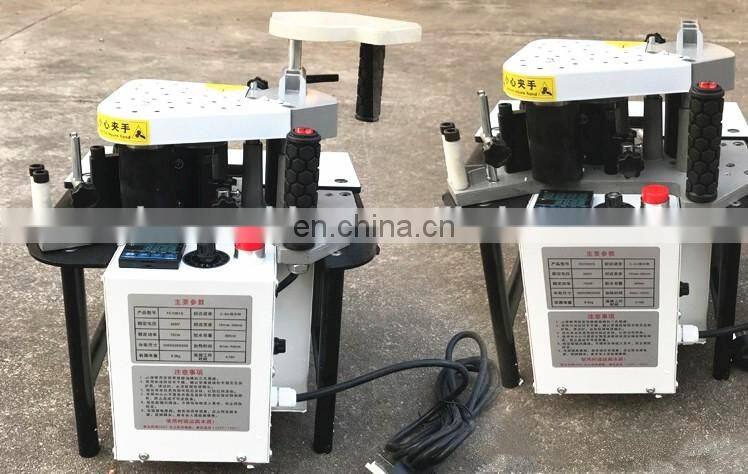

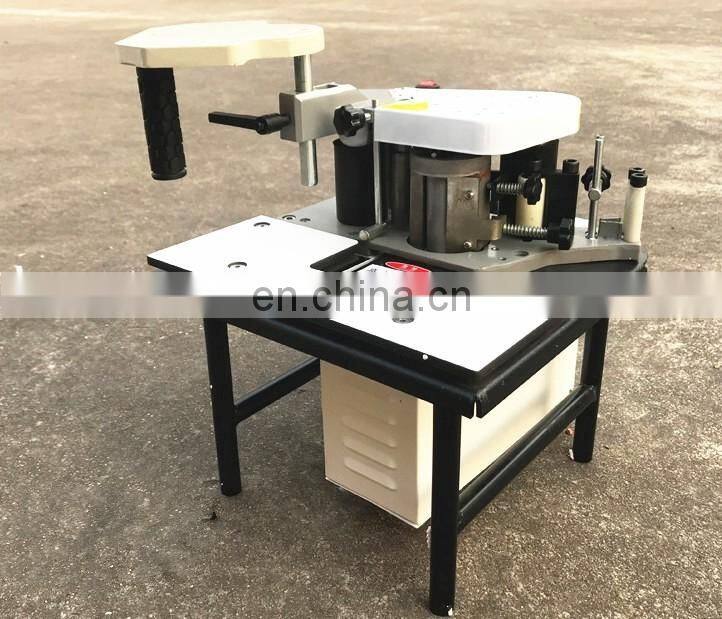

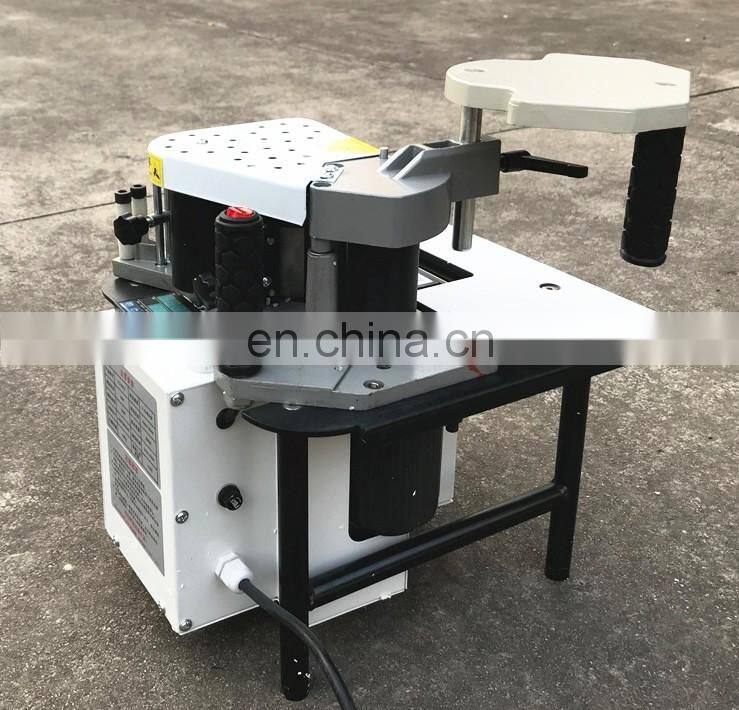

3. Small type portable type wood tape edge banding machine

Model	Double-sided adhesive edge banding machine
Voltage	220v, 800w
Glue volume	800ml
motor weight	13.5kg
working time	less than 10h
heating time	5-10min
working speed	2-6m/min
edge width	10-60mm
machine size	400360370mm

Transaction history

We are the supplier of the Trade Assurance amount guaranteed by Alibaba, your payment will be 100% protected, the following is our Trade Assurance Transaction History:

Packing & Delivery

Packing

We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly

Delivery

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number

Our Service

Service before sale

Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.

Service on sale

We are confident that we sell our machines to customers at low prices and activated. Professionally and patiently introduction
pictures and video to show machine

Service after sale

1, Free insurance for goods
2, 24 hours online to solve any

questions.Supply manual book and technical support,maintain video to help you.

Certifications

Zhengzhou Yize Machinery CO.,Ltd's factory was built in 2008, its exporting company was assessed gold supplier in 2015 by alibaba. It is specialized in the production of woodworking machinery, We will supply 100% QC inspection before shipment and 100% guaranteed after sales service. Top quality machinery is waiting for your choose.

FAQ and my contact

Questions/Answer

1,What is the voltage/phase for this machine ?

220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients' need
2,What is the Mode of transportation ?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
3,How long can we get the goods?
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
4,How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
5,How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
6,What about Payment term?
T/T(Telegraphic Transfer )-30% as prepayment by T/T, after seen the copy of the B/L sent by fax,
the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
7,What's your MOQ
1 set
8, How can i contact with you ?
You can send inquiry to me .
Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber: +86 15890126502
Skype: nancy-yize,QQ: 2045736388
