Formed Wood Sawdust Pallet Making Machine
- Shanghai
- T/T L/C Other
- 40 days
You May Like
Product Details
| Brand Name | Zhengzhou Invech | Place of Origin | China | |
| Model Number | 111 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

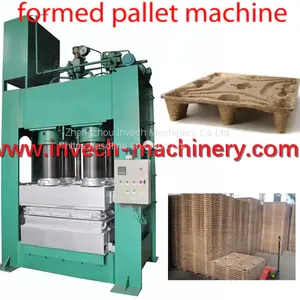

Wood Sawdust Pallet Moulding Machine

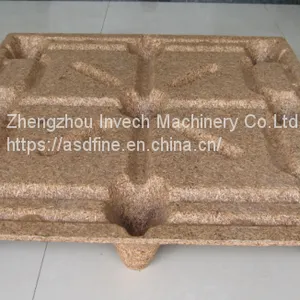

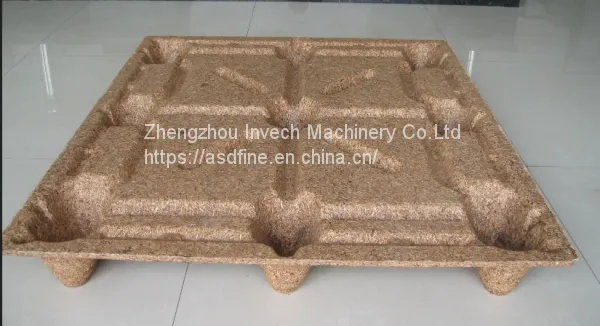

1.The compressed pallet machine is used to make compressed pallet,the raw material can be wood sawdust,wood shavings or mixing material and a certain amount of glue.
2.Under high working temperature,the internal temperature of forming pallet can reach 105°.So the final compressed pallet is free-fumigation ,free-quarantine and no worms inside.
3.The pallet mould can be changed easily to meet your requirements of diverse types of pallet production.
4.It is possible to realize flexible production methods with different raw material formula and different patterns of mold.
5.If you need a whole compressed production line,just find us and we will serve you solutions and machines to make it a reality.
6.Specifications
Product Name Compressed Pallet Machine
Model YCP 800
Working pressure 800t
Pallet density 850-900KG/ m³
Power 7.5kw
Hydraulic oil cylinder φ320mm/4Pcs
Thermal oil cylinder 1set,φ120mm
Lifiting Oil Cylinder 2 set,φ100mm
Capacity 120-150pcs/day
Working Temperature 150-160 degree
Press Stroke 550mm
Shaping cycle 450s
Heating Material Volume 0.15m3
Dimension 2300*1500*4300mm
Weight 12700 kg
