Cloth Fiber and Old Rag Shredder Machine

Cloth Fiber and Old Rag Shredder Machine thumbnail-1
Cloth Fiber and Old Rag Shredder Machine thumbnail-2
Cloth Fiber and Old Rag Shredder Machine thumbnail-3
Cloth Fiber and Old Rag Shredder Machine thumbnail-4
Cloth Fiber and Old Rag Shredder Machine thumbnail-5
Cloth Fiber and Old Rag Shredder Machine thumbnail-6
Cloth Fiber and Old Rag Shredder Machine thumbnail-7
Cloth Fiber and Old Rag Shredder Machine photo-1
Cloth Fiber and Old Rag Shredder Machine photo-2
Cloth Fiber and Old Rag Shredder Machine photo-3
Cloth Fiber and Old Rag Shredder Machine photo-4

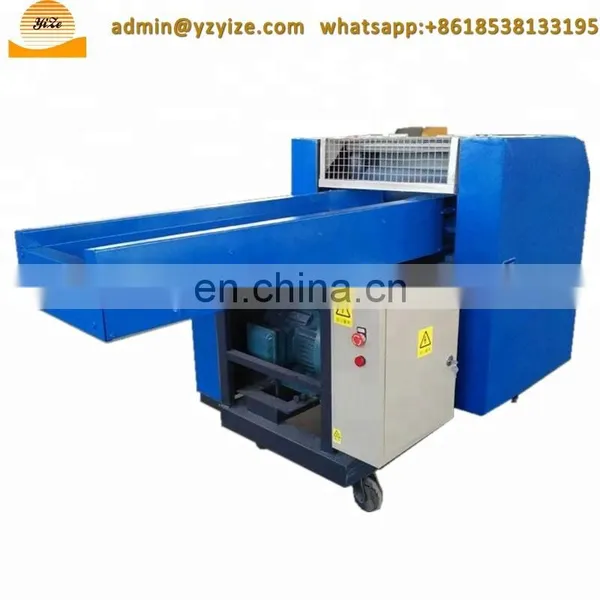

Cloth Fiber and Old Rag Shredder Machine photo-5
Cloth Fiber and Old Rag Shredder Machine photo-6

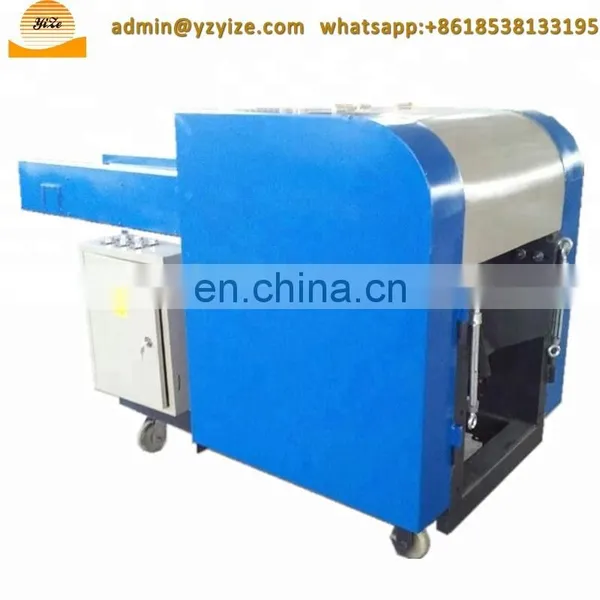

Cloth Fiber and Old Rag Shredder Machine photo-7
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YZ
Place of Origin:
Henan, China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Vacuum Fryer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Guangzhou/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YZ
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Production Capacity 300kg/h
Voltage 380V
Certification ISO
Application fabric ,leather,cloth etc
Condition New
Features automatic
Automatic Grade Automatic

Cloth fiber and Old rag shredder machine

Product Description

Cloth fiber and Old rag shredder machine introduction and features:

1.The machine adpot intemational lesding the knob and type rolling kinfe and the fixed knife

suit some mobile shear design,to achieve continuous high-speed shear.Advanced product design,beautiful appearance,economic and practical ,control sensitive,shear agile thoroughly.

2.The product adpot various high quality special material,after hundreds of procedure precision processing and into.

3.The machine has broad scope of application,can quickly cut up all kinds of waste pieces,cotton waste yan ,cotton ,chemical fiber,waste clothing flax,leather,plastic,paper,trademark brand,non -woven fabrics and other variety of Angle materials,length arbitrary adjustable.

4.Convenient to move ,stable and reliable,easy maintenance,high production efficiency,can

solve a lot of manual labor chop cut.

5. It not only can cut rags, cotton, jeans but also can cut rubber, leather waster and footwear. It has no extra tear parts except blades. The blades can use 1 year.

6. It can work 24 hours continuously.


Cloth fiber and Old rag shredder machine technical parameters:

Types

YZSB-500

YZSB-800

YZSB-800C

YZSB-1200B

YZSB-1200D

Motor

3 kw

4.5kw

5.5kw

9kw

13.2 kw

Capacity

300 kg/h

500kg/h

800kg/h

1000-1500 kg/h

1500-2000kg/h

Cutting speed

288r/min

288r/min

432r/min

777r/min

1036r/min

Cutting size

5-300mm

5-150mm

5-150mm

5-150mm

5-150mm

Input conveyer

1000*350mm

1400*350mm

1400*350mm

2800*70mm

2800*70mm

Output conveyer

1400*350mm

1400*350mm

2800*350mm

2800*700 mm

2800*700 mm

Material Thickness:

20mm

30-50mm

30-50mm

30-60mm

30-60mm

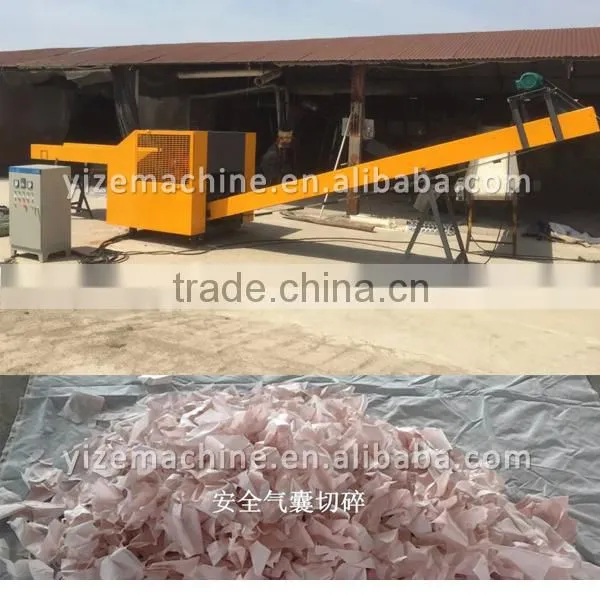

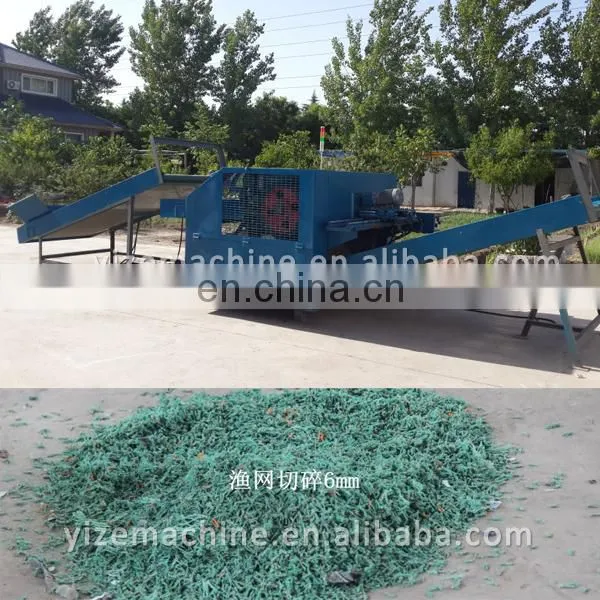

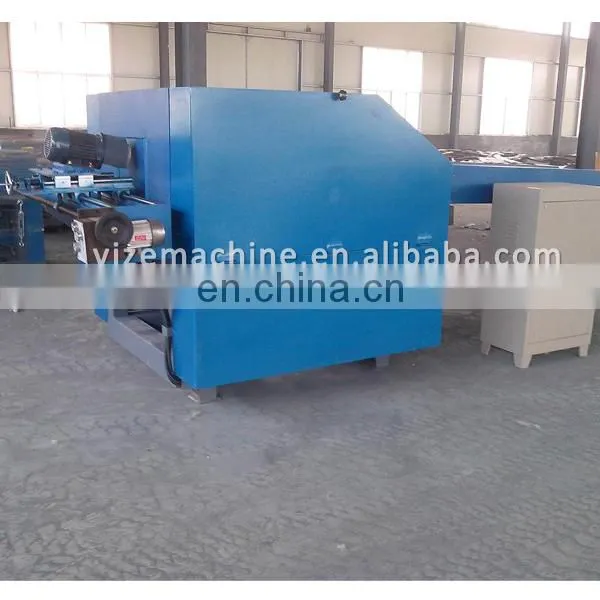

Cloth fiber and Old rag shredder machine  pictures:

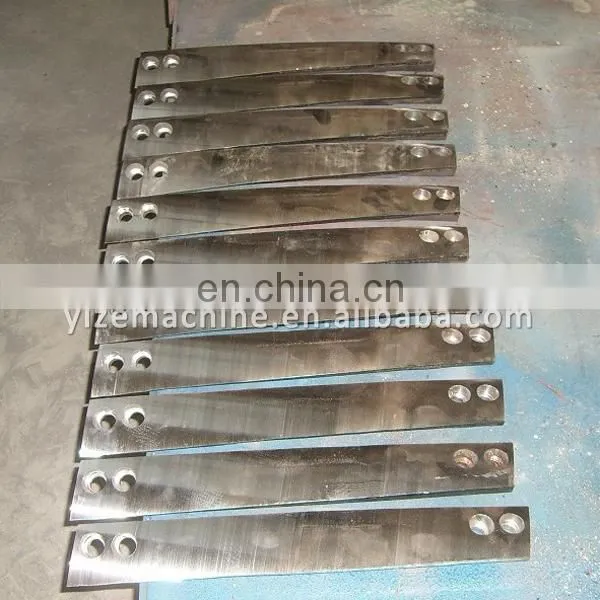

Cloth fiber and Old rag shredder machine fixing blade and final product after cutting.

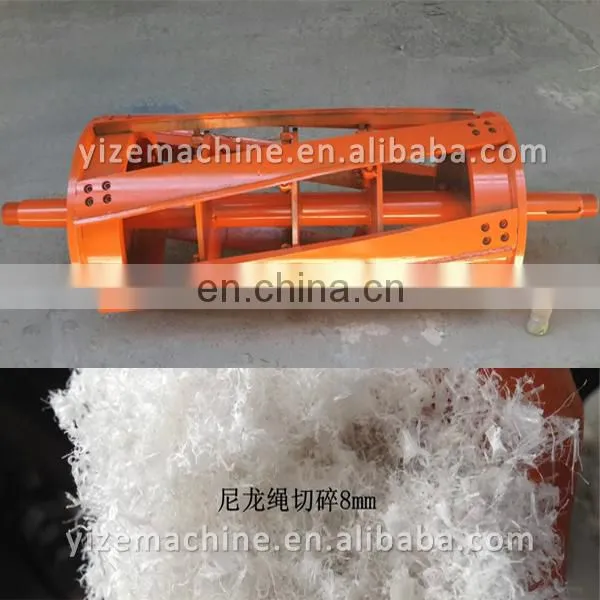

Cloth fiber and Old rag shredder machine moving blade

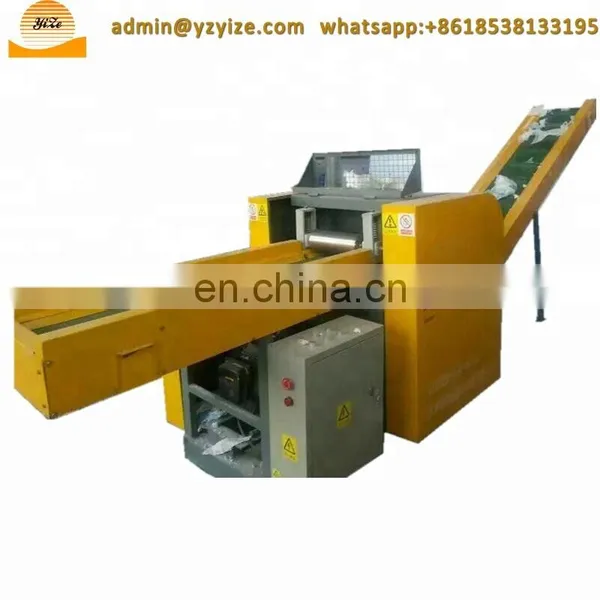

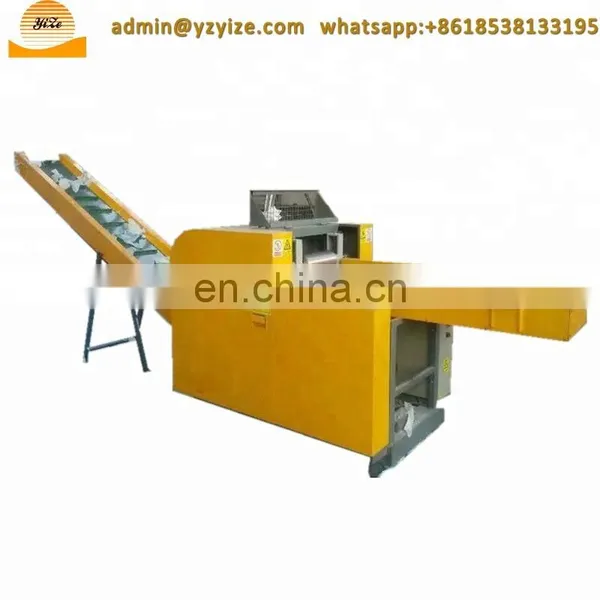

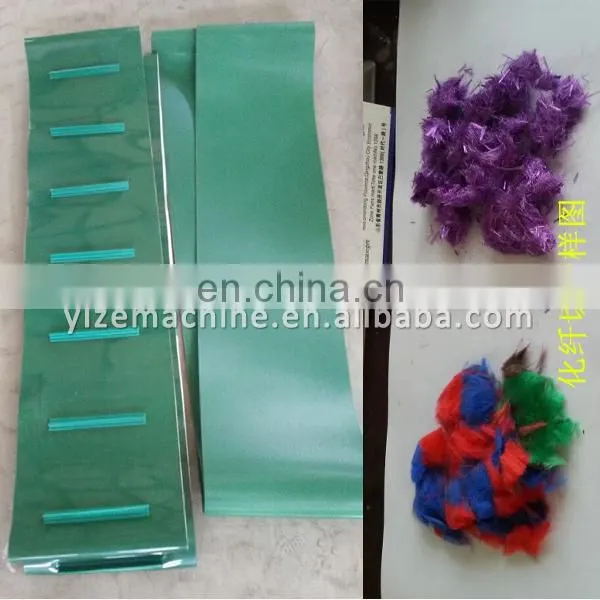

Cloth fiber and Old rag shredder machine input and output conveyor

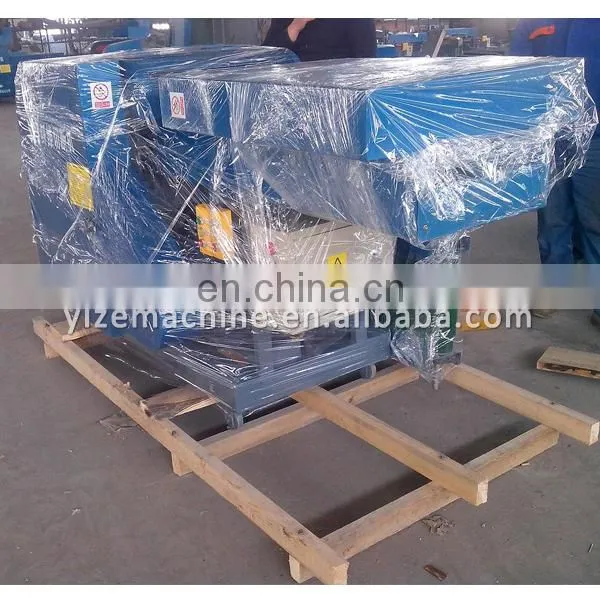

Packaging & Shipping
